CG Drives & Automation,01-5326-01r5 Functional Description 95
Lock Code? [218]
To prevent the keyboard being used or to change the setup
of the AC drive and/or process control, the keyboard can be
locked with a password. This menu, “Lock Code [218]”, is
used to lock and unlock the keyboard. Enter the password
“291” to lock/unlock the keyboard operation. If the
keyboard is not locked (default) the selection “Lock Code?”
will appear. If the keyboard is already locked, the selection
“Unlock Code?” will appear.
When the keyboard is locked, parameters can be viewed but
not changed. The reference value can be changed and the
AC drive can be started, stopped and reversed if these
functions are set to be controlled from the keyboard.
Communication information
Rotation [219]
Overall limitation of motor rotation
direction
This function limits the overall rotation, either to left or
right or both directions. This limit is prior to all other
selections, e.g.: if the rotation is limited to right, a Run-Left
command will be ignored. To define left and right rotation
we assume that the motor is connected U-U, V-V and W-W.
Speed Direction and Rotation
The speed direction can be controlled by:
• RunR/RunL commands on the control panel.
• RunR/RunL commands on the terminal strip
(terminals 1-22).
• Via the serial interface options.
• The parameter sets.

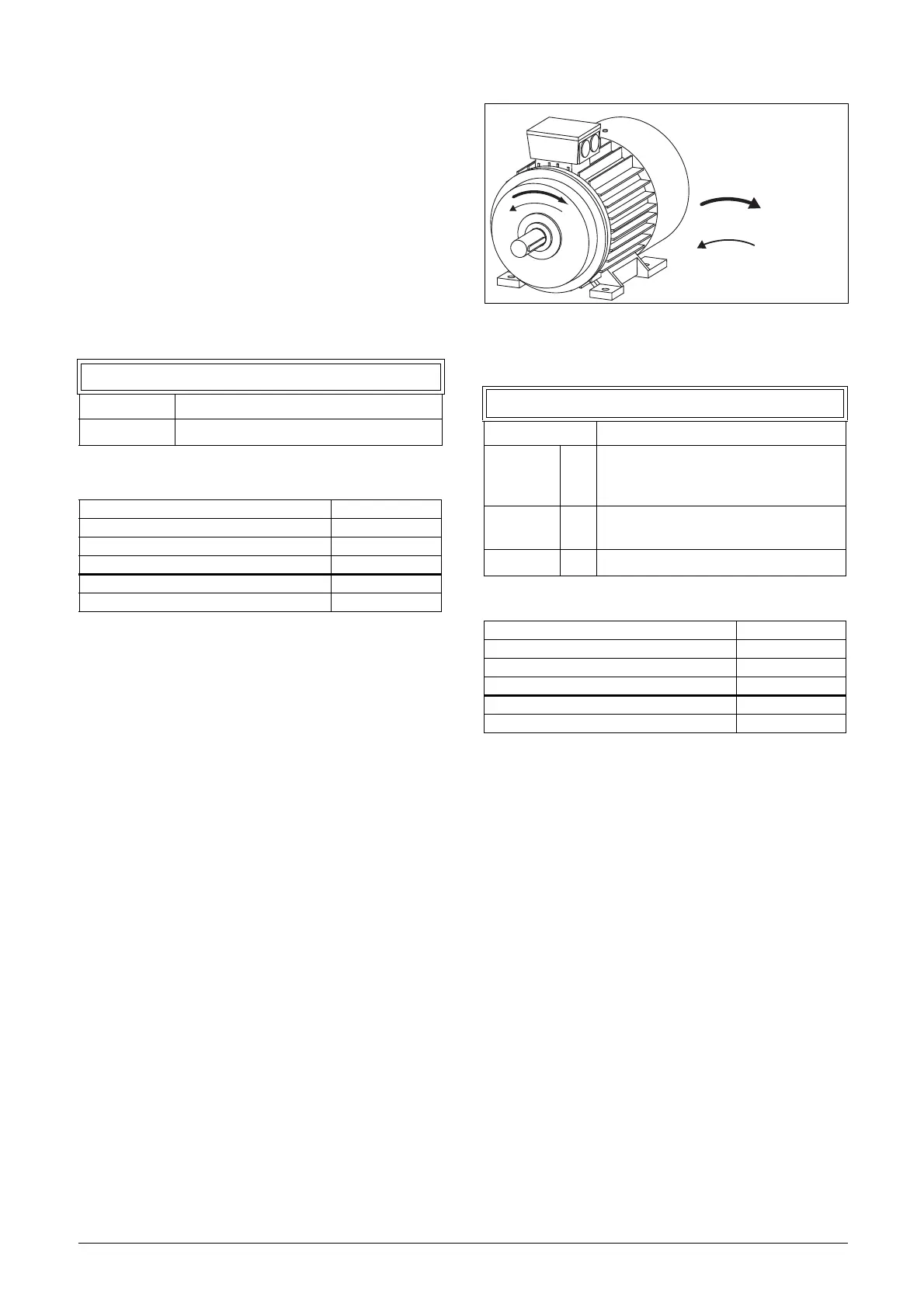

Fig. 93 Rotation
In this menu you set the general rotation for the motor.
Communication information
218 Lock code?
Default: 0
Range: 0–9999
Modbus Instance no/DeviceNet no: 43018
Profibus slot/index 168/177
EtherCAT and CANopen index (hex) 4bca
Profinet IO index 19402
Fieldbus format UInt, 1=1
Modbus format UInt
219 Rotation
Default: R + L
R1
Speed direction is limited to right
rotation. The input and key RunL are
disabled.
L2
Speed direction is limited to left rotation.
The input and key RunR are disabled.
R+L 3 Both speed directions allowed.
Modbus Instance no/DeviceNet no: 43019
Profibus slot/index 168/178
EtherCAT and CANopen index (hex) 4bcb
Profinet IO index 19403
Fieldbus format UInt
Modbus format UInt
