10-2
Chadwick-Helmuth Company, Inc.
Chapter 10
- Printer and Disk Drive
Remove the used paper roll from the spindle and replace it with a new roll. Open the spindle holder by
depressing the spindle release bar and insert the spindle and new paper roll. Orient the roll so that th
paper feeds from the back of the roll (the side nearest the rear of the assembly) into the printer. Th
paper guide should face the side of the paper with the thermal coating.

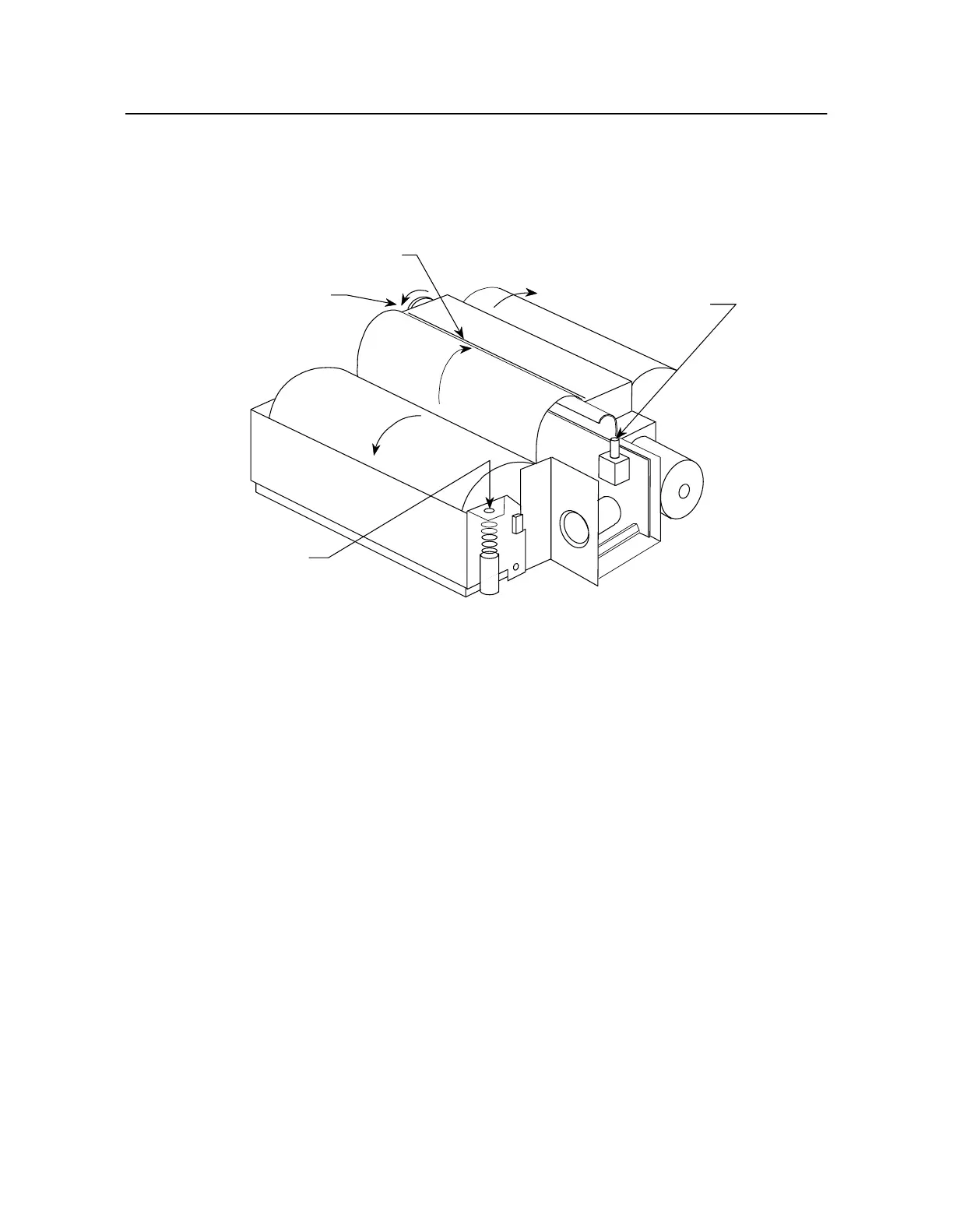

Figure 10-1. 8500C/C+ Printer Mechanism
Cut the end of the paper square and feed it over the curved paper guide at the back of the unit and into
the groove in the top of the printer. When the paper stops, rotate the left-most black plastic gear in a
counterclockwise direction until the paper clears the back of the 8500C/C+. Be sure that the paper is
feeding smoothly.
When you are finished, close the bottom of the 8500C/C+ and place the unit upright.
PAPER OUT
PAPER ADVANCE
GEAR
(WITHOUT POWER)
PAPER IN
PUSH TO
RELEASE
PAPER
PAPER ADVANCE
BUTTON
(WITH POWER)
