8-2

Chadwick-Helmuth Company, Inc.

Chapter 8

- Using Printout

8.2 Reading 8500C/C+ Printouts

Figur e8-1 below and Fi gure8-2 o n page8-3 show a sample 8500C/C+ solution printout. Refer to this

printout example with the additional explanations given later in this section.

Continued on the next page.

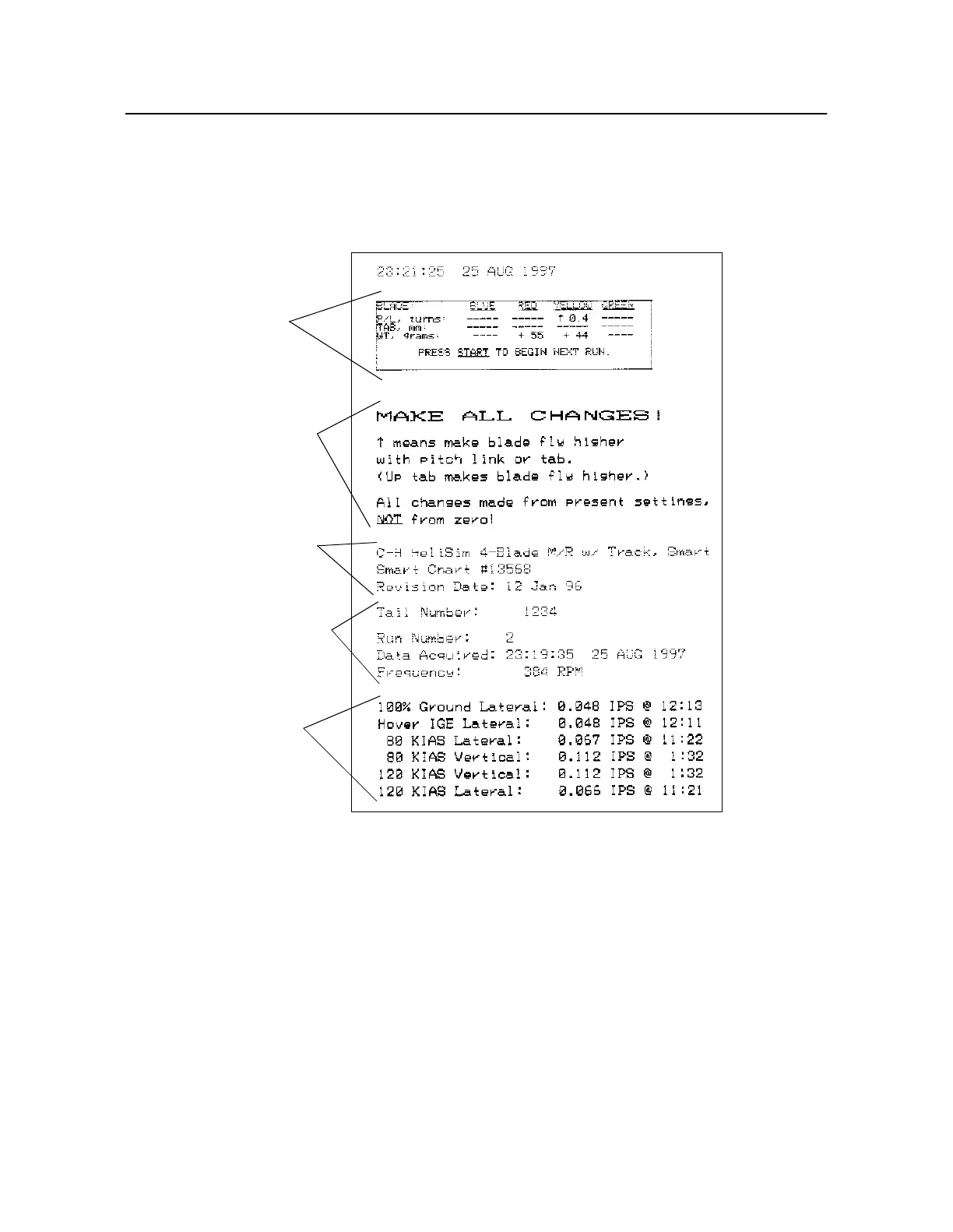

Figure 8-1. Solution Printout (Part1)

SOLUTION

SCREEN

DIRECTIONS

TO THE USER

BASIC CHART

INFORMATIO

TAIL AND RUN

NO., DATE, AND

AZIMUTH

VIBRATION

BALANCE

READINGS

FOR EACH

REGIME
