5-22
Chadwick-Helmuth Company, Inc.
Chapter 5
- Balance Measurement and Solutions
length is below 0. 4IPS, a full balance can be justified, and the 8500C/C+ presents the move line
calculation. For values greater than 0. 4IPS, the 8500C/C+ presents a different screen, indicating that a
full balance is not warranted. Press
OK
to display the Balance Run Start-up screen.

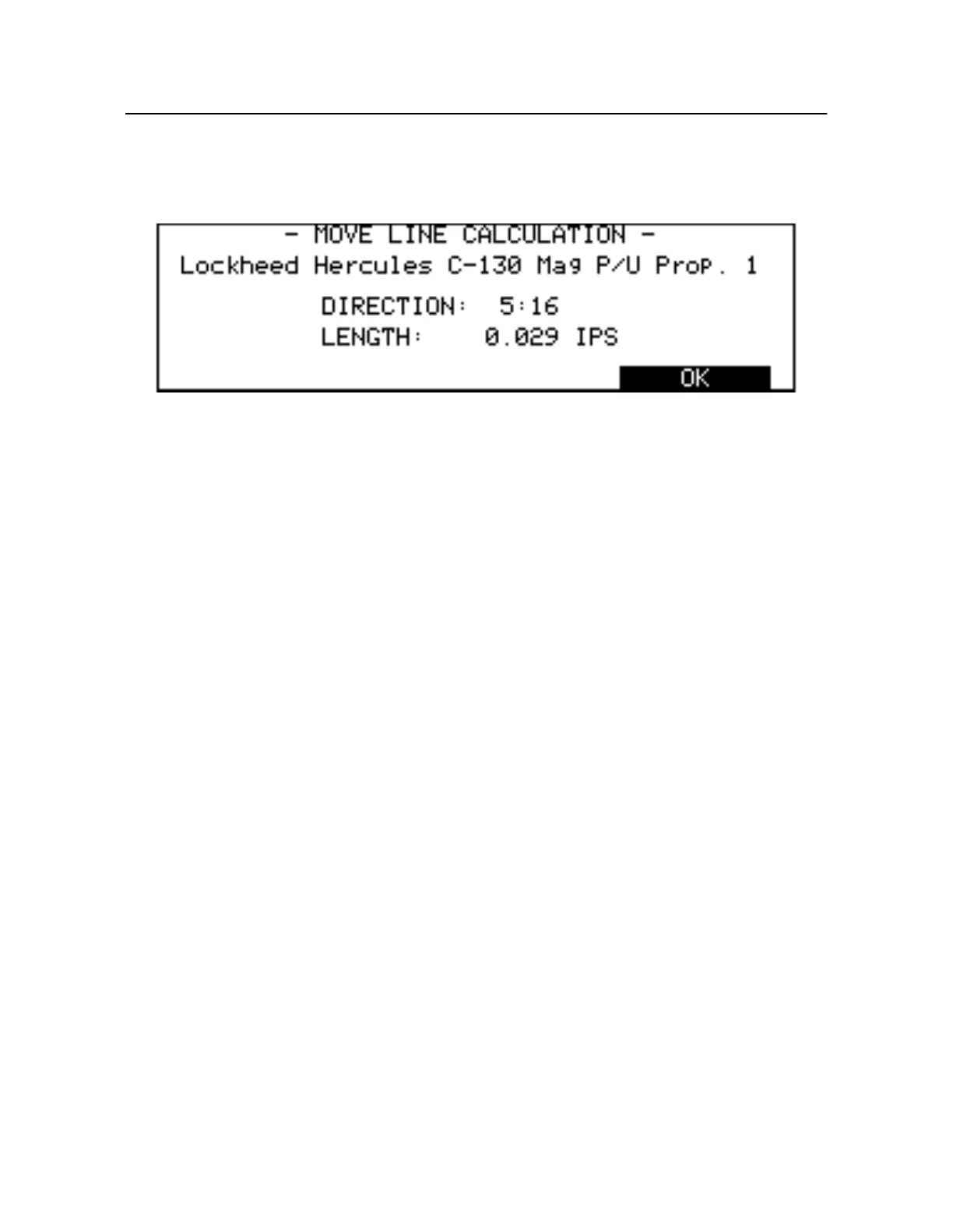

Figure 5-21. HSGI Move Line Calculation
If the move line length is below 0 .4IPS, proceed with the balance according to the directions for th
particular aircraft and balance type. Note that the Balance Run Start-up screen substitutes the
HSGI
soft key for
CHART INFO
and provides a third row of soft keys containing
CHART INFO
and
MOVE LINE
. Use
MOVE LINE
to view the move line calculation.
Balance histories are recorded for fixed-wing aircraft just as they are for other rotor systems. Note that
the second (high-power) HSGI balance run is saved as the first balance run in the aircraft's balanc
history.
