7-6
Chadwick-Helmuth Company, Inc.
Chapter 7
- Spectrum Analysis
7.3.2.2 Recalling Setups
To recall a spectrum setup, press the
SE LSETUP
soft key in the Spectrum Start-up screen or Spectrum
Setup screen (see Figure 7-3 on pa ge7-3 and Fi gure7-2 o n page7-2).
SEL SETUP
displays a list of
available setups (see Figur e7-4). Select a setup by moving the screen cursor to the desired item and
press
ENTER
. The setup is restored and the spectrum parameters and printout annotation associated
with it become the current spectrum setup.

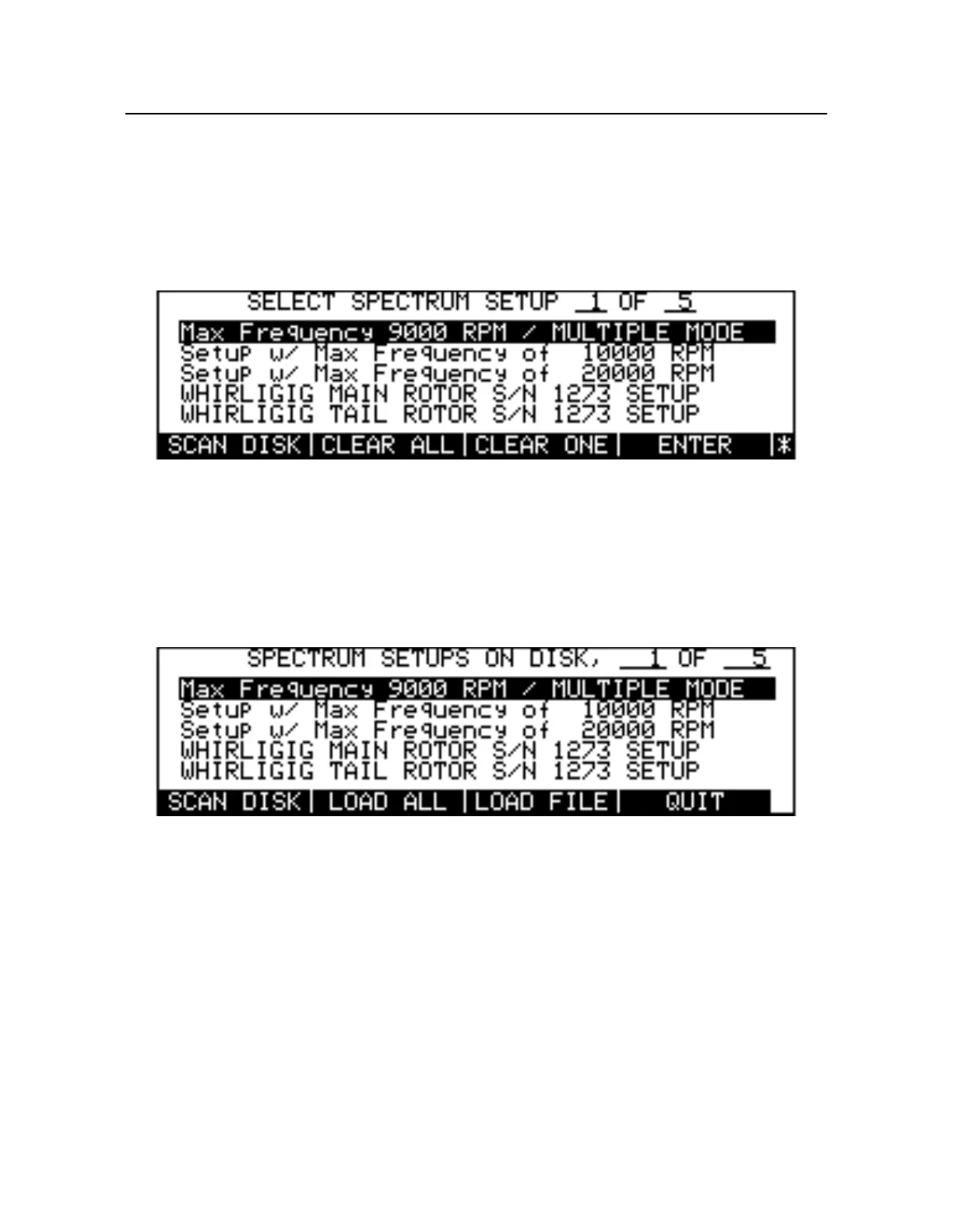

Figure 7-4. Spectrum Setup Selection Menu
Additional setups can be loaded from disk by pressing
SE LSETUP
and inserting the appropriate disk
in the 8500C/C+ disk drive. Press
SCA NDISK
to view the setups on the disk. When
SCAN DISK
finishes checking the disk, it presents a menu of the spectrum setup files found there (se e Figure7-5).
Press
LOAD ALL
to load all the setups to 8500C/C+ memory, or use the Arro wkeys to select a singl
setup file. Then press
LOAD FILE
to load the selected setup to memory. When the 8500C/C+ finishes
loading the desired setup file(s) it adds them to the
SEL SETUP
menu.
Figure 7-5. Spectrum Setup Selection Menu
7.3.2.3 Renaming Setups
To rename a saved spectrum setup, select a setup in th
SE LSETUP
menu and press
RENAM ESE
.
The 8500C/C+ enters its edit mode of operation and displays the Setup Edit screen (se e Figure7-6).
The soft keys and procedures used here are identical to those used to edit the printout annotation. Se
