8.3 Annotating Printouts
In addition to balance solution and measurement data, some 8500C/C+ printouts are further amended
to include specific information pertinent to the screen being printed. Be sure to read this information.
See the printout annotation example in Fi gure8-3 below.
Figure 8-3. Sample Printout With Annotation
Adding the appropriate information to the annotation can be extremely helpful in identifying and
documenting the work performed on a particular aircraft. You may wish to modify the existing
annotation fields or substitute one or more new data fields of your own.
8.3.1 Printout Annotation Screen
To edit the printout annotation, press the
ANNOTATE
key. The 8500C/C+ enters its edit mode and
displays the Printout Annotation screen (see F igure8-4 below and Figure8- 5 on page8-6). The
Printout Annotation screen shows the annotation data fields and labels, as they appear on each
printout. You may edit any of the fields and labels, as you wish.

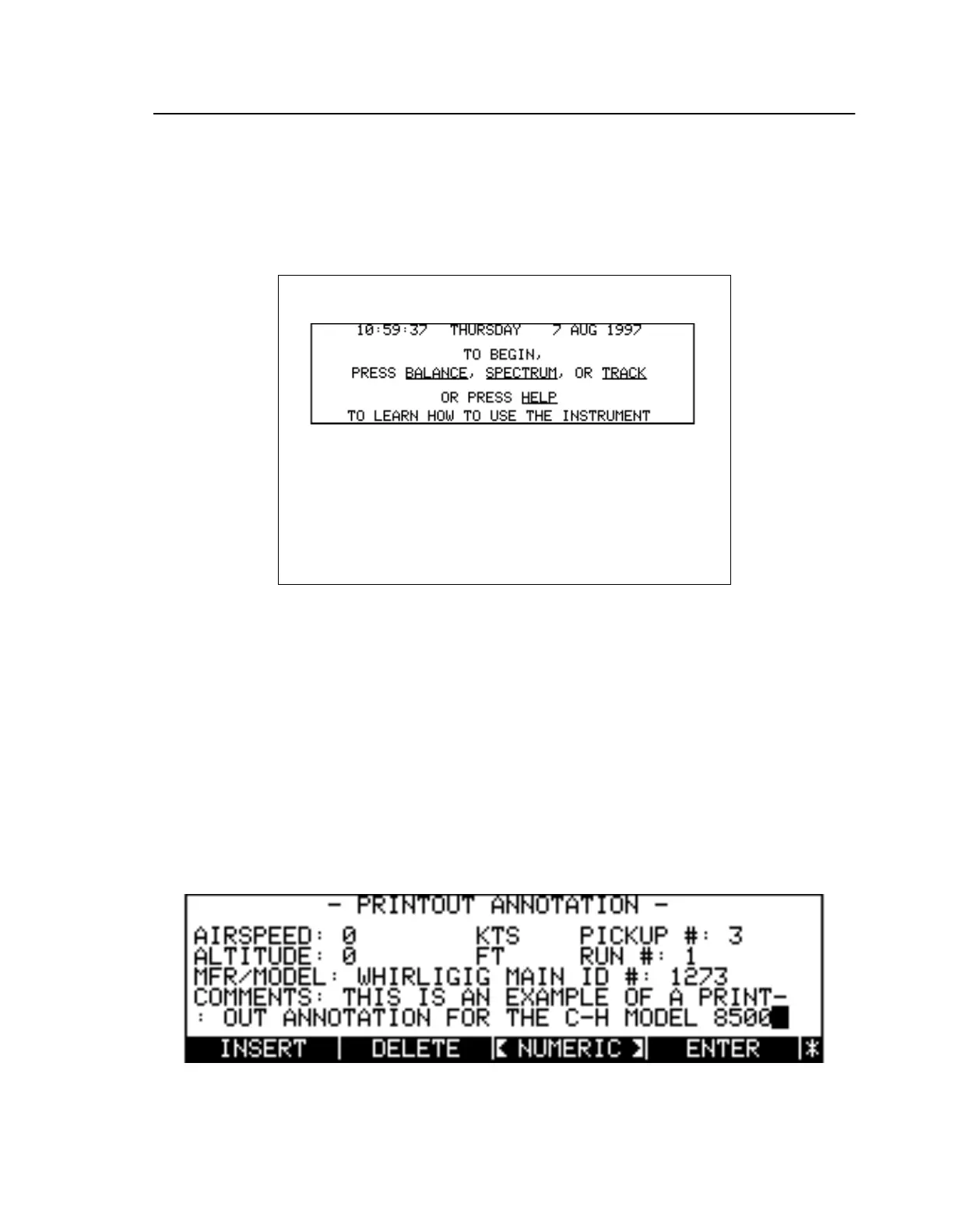

Figure 8-4. Printout Annotation Screen
13:30:18 7 Aug 97
AIRSPEED: 0 KTS PICKUP #: 3
ALTITUDE: 0 FT RUN #: 1
MFR/MODEL: WHIRLIGIG MAIN ID #: 1273
COMMENTS: THIS IS AN EXAMPLE OF A PRINT-
OUT ANNOTATION FOR THE C-H 8500C/C+
To Next Page
