The UTM-1 Edge X Series and UTM-1 Edge W Series
Chapter 1: Introduction 37
Front Panel
The UTM-1 Edge W ADSL appliance includes several status LEDs that enable you to
monitor the appliance’s operation.
For an explanation of the UTM-1 Edge W ADSL appliance’s status LEDs, see the
following table.
Table 15: UTM-1 Edge W ADSL Appliance Status LEDs
LED State Explanation
PWR/SEC Off Power off
Flashing quickly (Green) System boot-up
Flashing slowly (Green) Establishing Internet connection
Flashing (Red) Hacker attack blocked
On (Green) Normal operation
On (Red) Error
LAN 1-4/
DMZ/WAN2
LINK/ACT Off, 100 Off
Link is down
LINK/ACT On, 100 Off
10 Mbps link established for the
corresponding port
LINK/ACT On, 100 On
100 Mbps link established for the
corresponding port

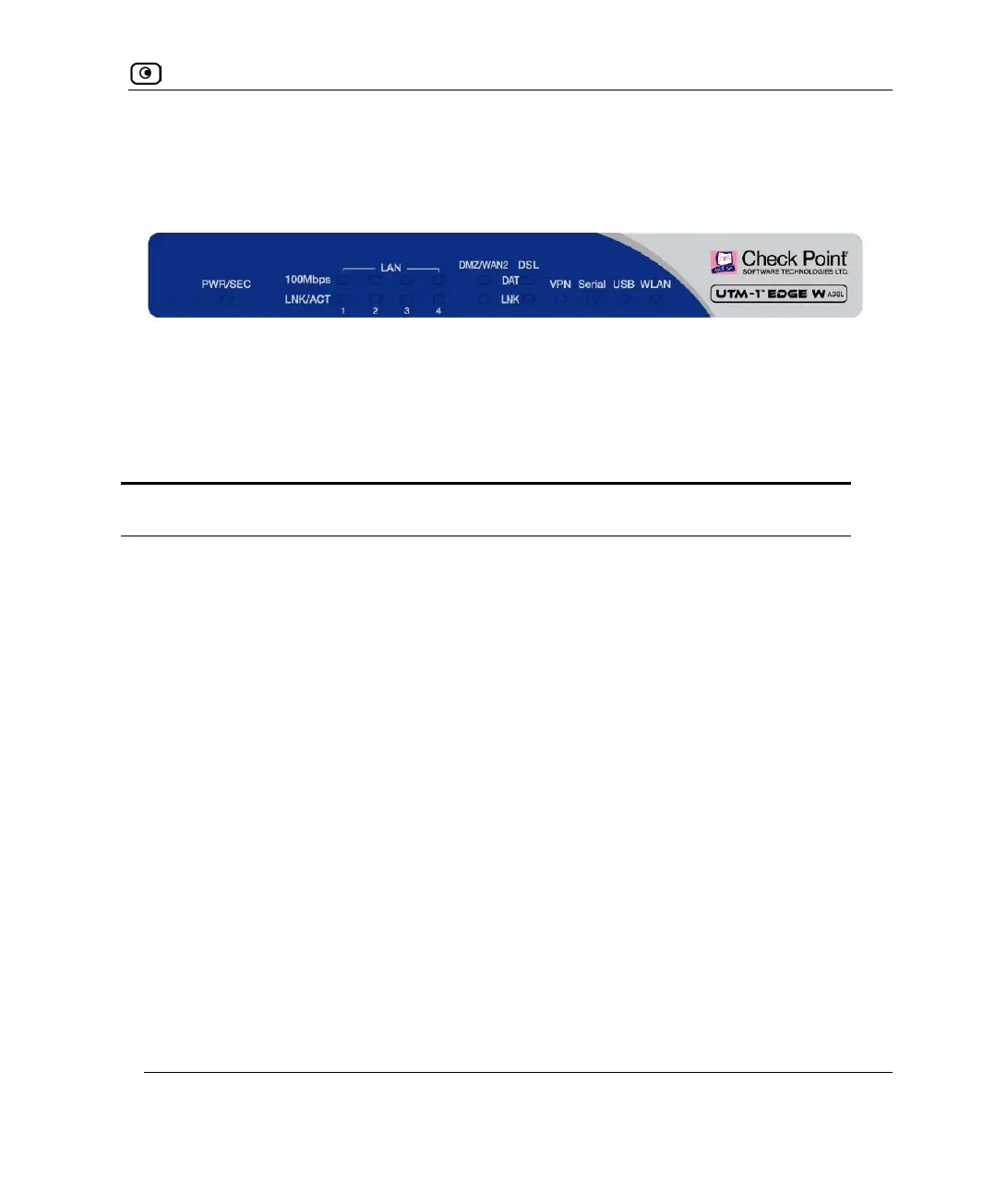

Figure 11: UTM-1 Edge W ADSL Appliance Front Panel
