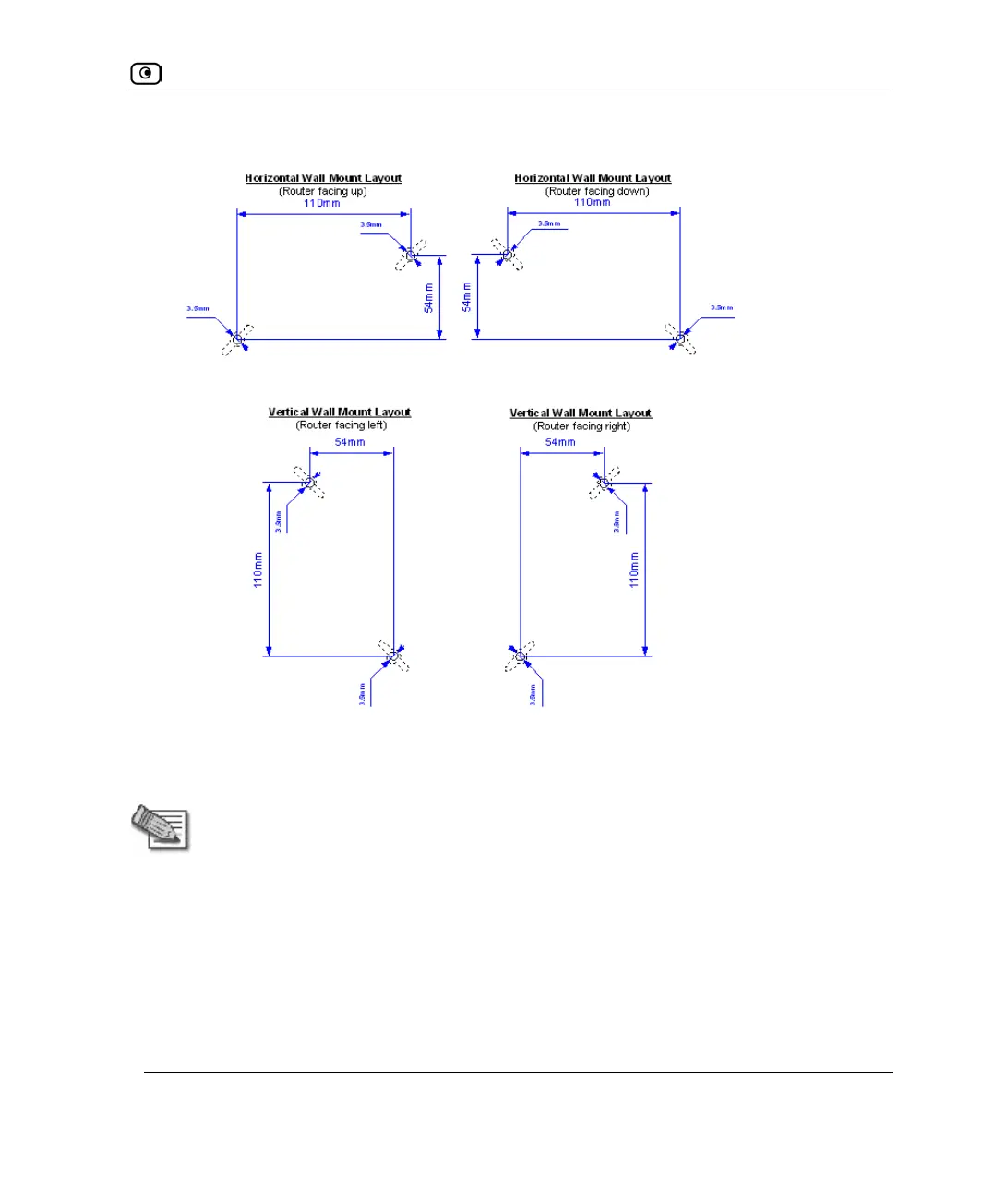

3. Mark two drill holes on the wall, in accordance with the following sketch:
4. Drill two 3.5 mm diameter holes, approximately 25 mm deep.
5. Insert two plastic conical anchors into the holes.
Note: The conical anchors you received with your UTM-1 Edge appliance are
suitable for concrete walls. If you want to mount the appliance on a plaster wall, you
must use anchors that are suitable for plaster walls.
6. Insert the two screws you received with your UTM-1 Edge appliance into the
plastic conical anchors, and turn them until they protrude approximately 5 mm
from the wall.
7. Align the holes on the UTM-1 Edge appliance's underside with the screws on
the wall, then push the appliance in and down.
