2 - MACHINE DESCRIPTION
Dati tecnici ME2000S
ME2000S - User Manual
27 - 133
abcd efg
123
1
1
3
3
4

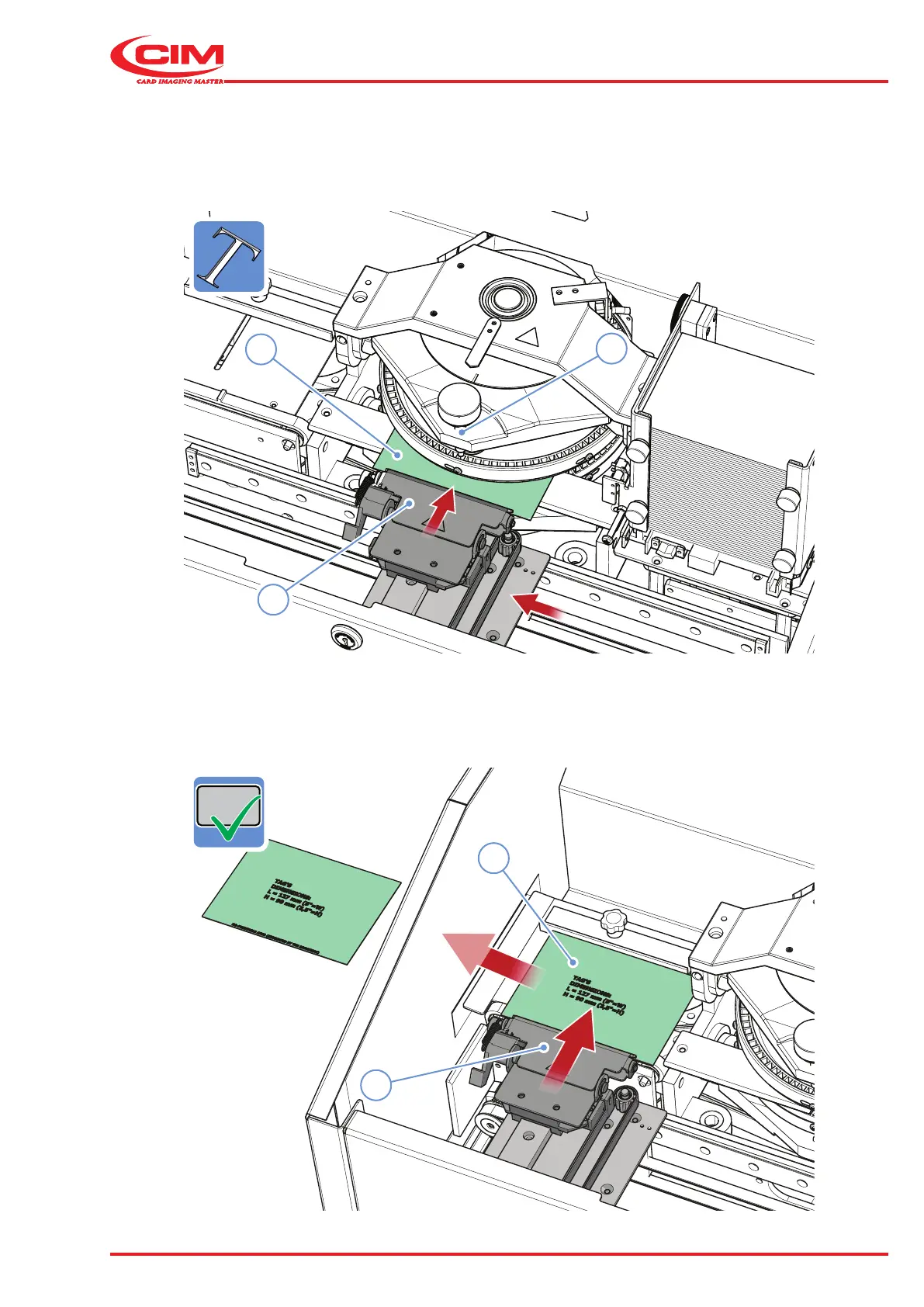

Embossing
After picking up the tag (1), the gripper unit (3) transfers it to the stamping area and positions it under the drum
which, by rotating, impresses the character on the tag by means of the hammer (4).
Unloading
When the embossing cycle has nished, the gripper unit (3) transfers the tag (1) to the unloading area where it is
ejected or stored according to the unit installed on the machine (ejector or magazine).
