Cisco 2100 Series Configuration Guide

13-18
Cisco Wireless LAN Controller Configuration Guide
OL-17037-01
Chapter 13 Configuring Hybrid REAPWireless Device Access
Configuring Hybrid-REAP Groups
Step 4 Click Apply to commit your changes. The new group appears on the HREAP Groups page.
Step 5 To edit the properties of a group, click the name of the desired group. The HREAP Groups > Edit
(General) page appears (see Figure 13-11).

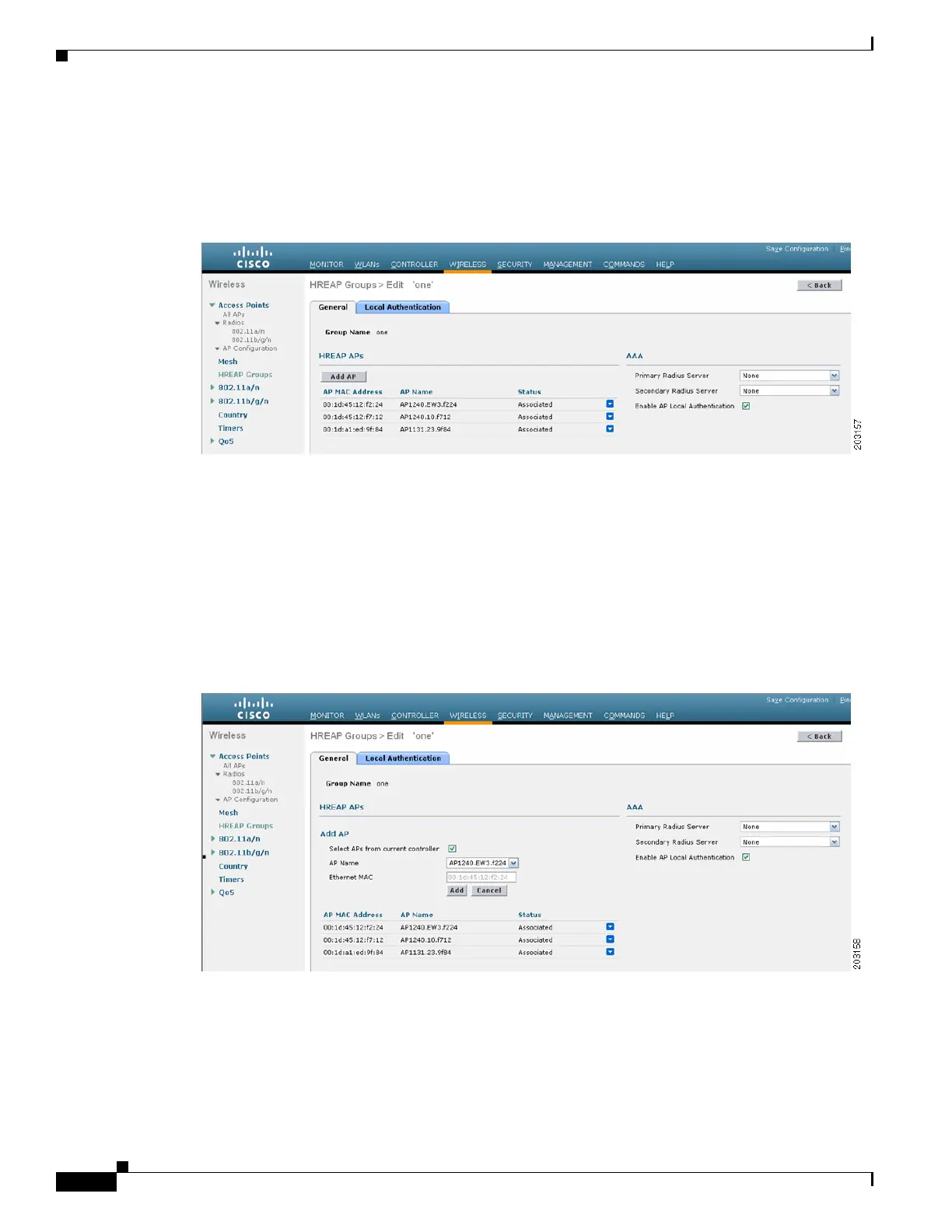

Figure 13-11 HREAP Groups > Edit (General) Page
Step 6
If you want to configure a primary RADIUS server for this group (for example, the access points are
using 802.1X authentication), choose the desired server from the Primary RADIUS Server drop-down
list. Otherwise, leave the field set to the default value of None.
Step 7 If you want to configure a secondary RADIUS server for this group, choose the server from the
Secondary RADIUS Server drop-down list. Otherwise, leave the field set to the default value of None.
Step 8 To add an access point to the group, click Add AP. Additional fields appear on the page under “Add AP”
(see Figure 13-12).
Figure 13-12 HREAP Groups > Edit (General) Page

Cisco 2100 Series Specifications

General

Power over Ethernet (PoE)	No
Form Factor	Desktop
Encryption	AES, TKIP
Maximum Access Points	6
Security	WPA, WPA2, 802.1X
Dimensions	1.75 x 8.0 x 8.5 in. (4.4 x 20.3 x 21.6 cm)
