Preparing for Installation 2-87
Preparing Network Connections
Cables can be obtained from the following vendors:
• AT &T
• Siemens
• Red-Hawk
• Anixter
• AMP
For TAXI 4B/5B traffic over multimode fiber, use the multimode MIC interface cable to connect the
AIP with the external ATM switch. (See Figure 2-4.)

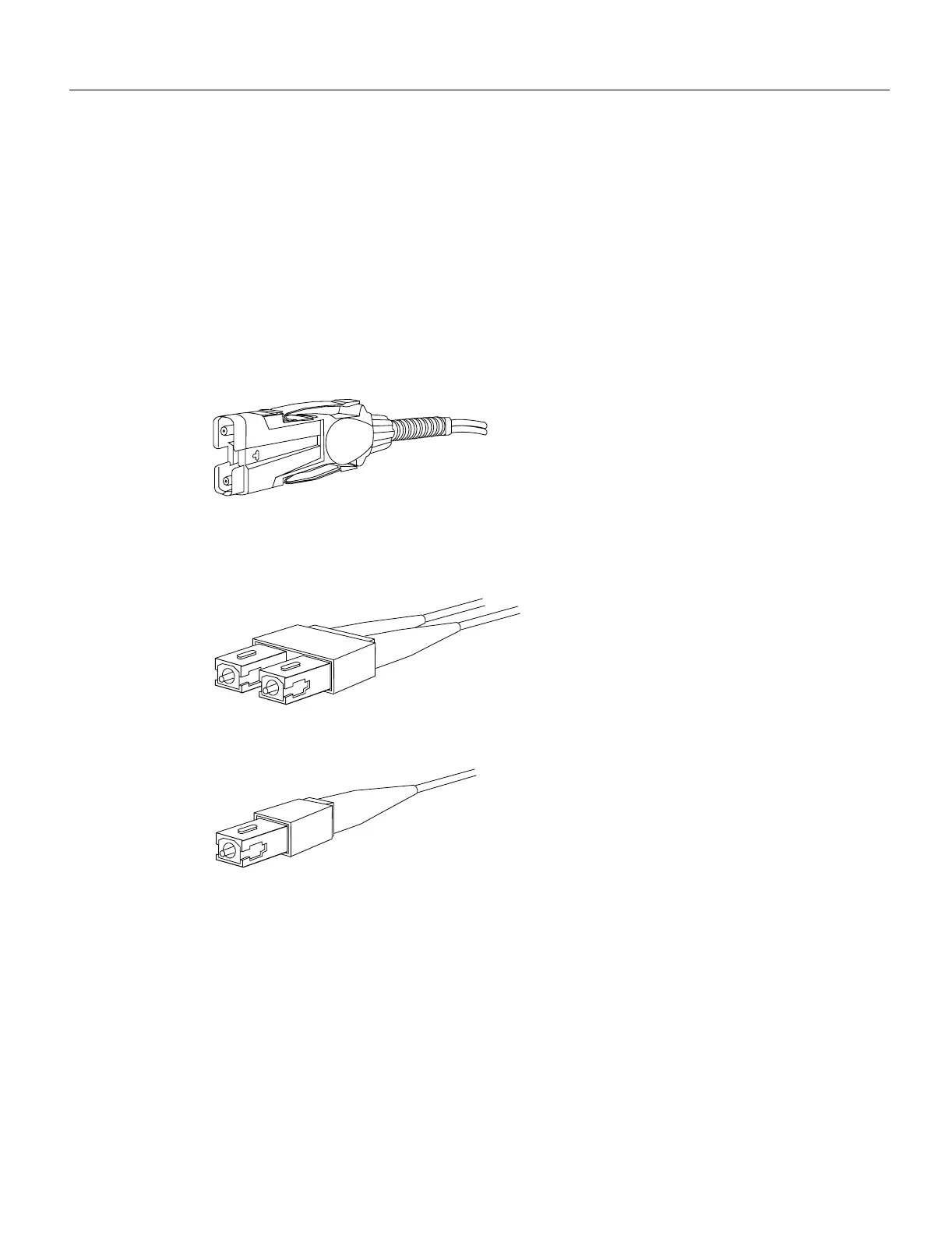

Figure 2-4 Multimode Network Interface Connector (MIC Type)
For SONET/SDH multimode connections, use one multimode duplex SC connector (see Figure 2-5)
or two single SC connectors. (See Figure 2-6.)
Figure 2-5 Duplex SC Connector
Figure 2-6 Simplex SC Connector
H1349a
H2214
H2399
