Chapter 37 Configuring Bidirection Forwarding Detection
Configuration Examples for Bidirectional Forwarding Detection
run on the forwarding path for RouteA and SwitchB, and their echo packets will return along the same
path for BFD sessions and failure detections, while their BFD neighbor SwitchC runs BFD Version 0
and uses BFD controls packets for BFD sessions and failure detections.
Figure 37-3 shows a large EIGRP network with several switchs, three of which are BFD neighbors that
are running EIGRP as their routing protocol.

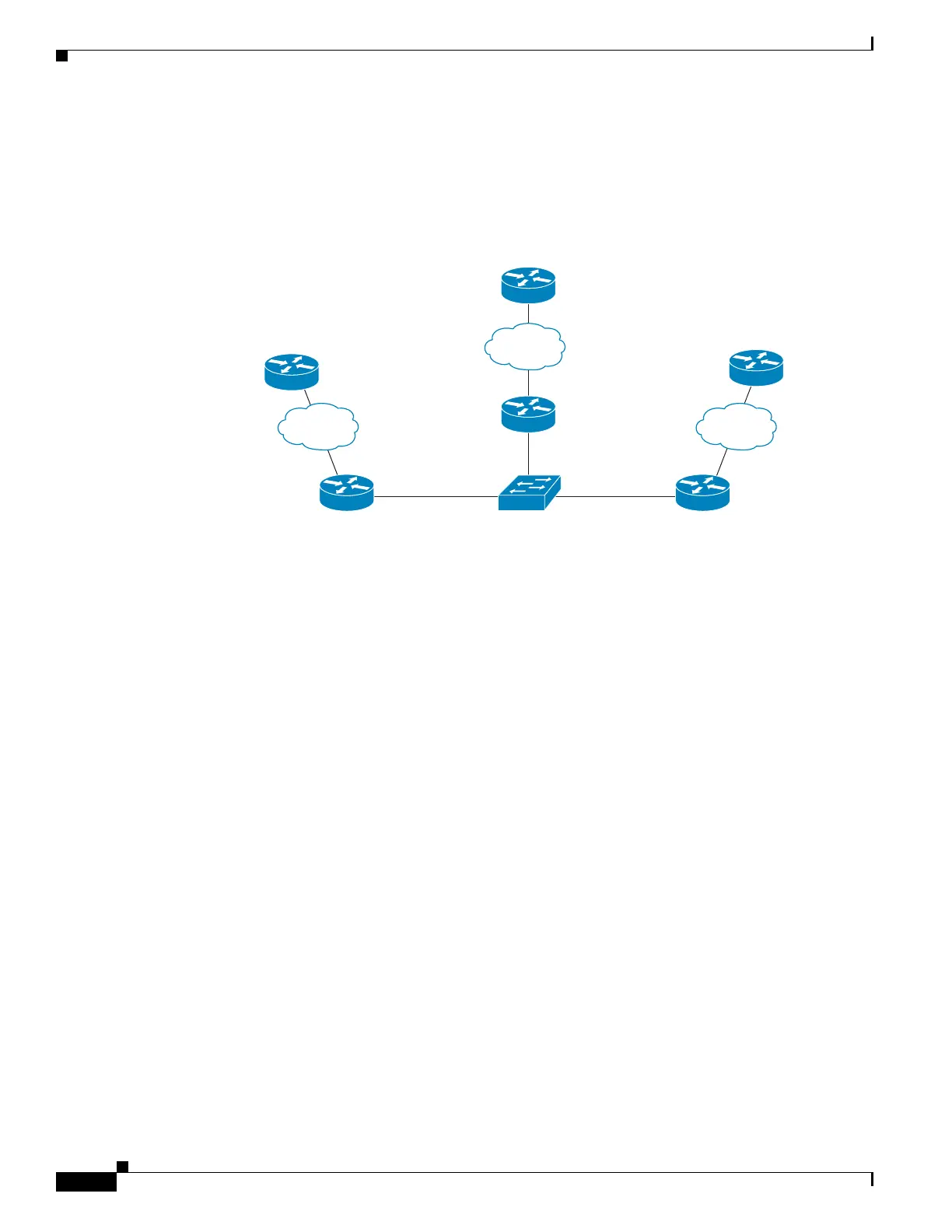

Figure 37-3 EIGRP Network with Three BFD Neighbors Running V1 or V0
The example, starting in global configuration mode, shows the configuration of BFD.
Configuration for SwitchA
interface GigabitEthernet6/2
no switch
ip address 10.4.9.14 255.255.255.0
!
interface GigabitEthernet6/1
no switchport
ip address 172.16.1.1 255.255.255.0
bfd interval 50 min_rx 50 multiplier 3
no shutdown
!
router eigrp 11
network 172.16.0.0
bfd all-interfaces
auto-summary
!
ip default-gateway 10.4.9.1
ip default-network 0.0.0.0
ip route 0.0.0.0 0.0.0.0 10.4.9.1
ip route 172.16.1.129 255.255.255.255 10.4.9.1
!
Configuration for SwitchB
!
interface GigabitEthernet6/2
no switchport
ip address 10.4.9.34 255.255.255.0
!
interface GigabitEthernet6/1
no switchport
ip address 172.16.1.2 255.255.255.0
bfd interval 50 min_rx 50 multiplier 3
!
SwitchA
GigabitEthernet 6/1 GigabitEthernet 6/1
Gigabit Ethernet 6/1172.16.1.2
172.16.1.1 172.16.1.3
SwitchC
SwitchB
332676
Gigabit Ethernet 6/2
Gigabit Ethernet 6/2
Gigabit Ethernet 6/2
Gigabit Ethernet 6/2
