Setting up Input Information
159

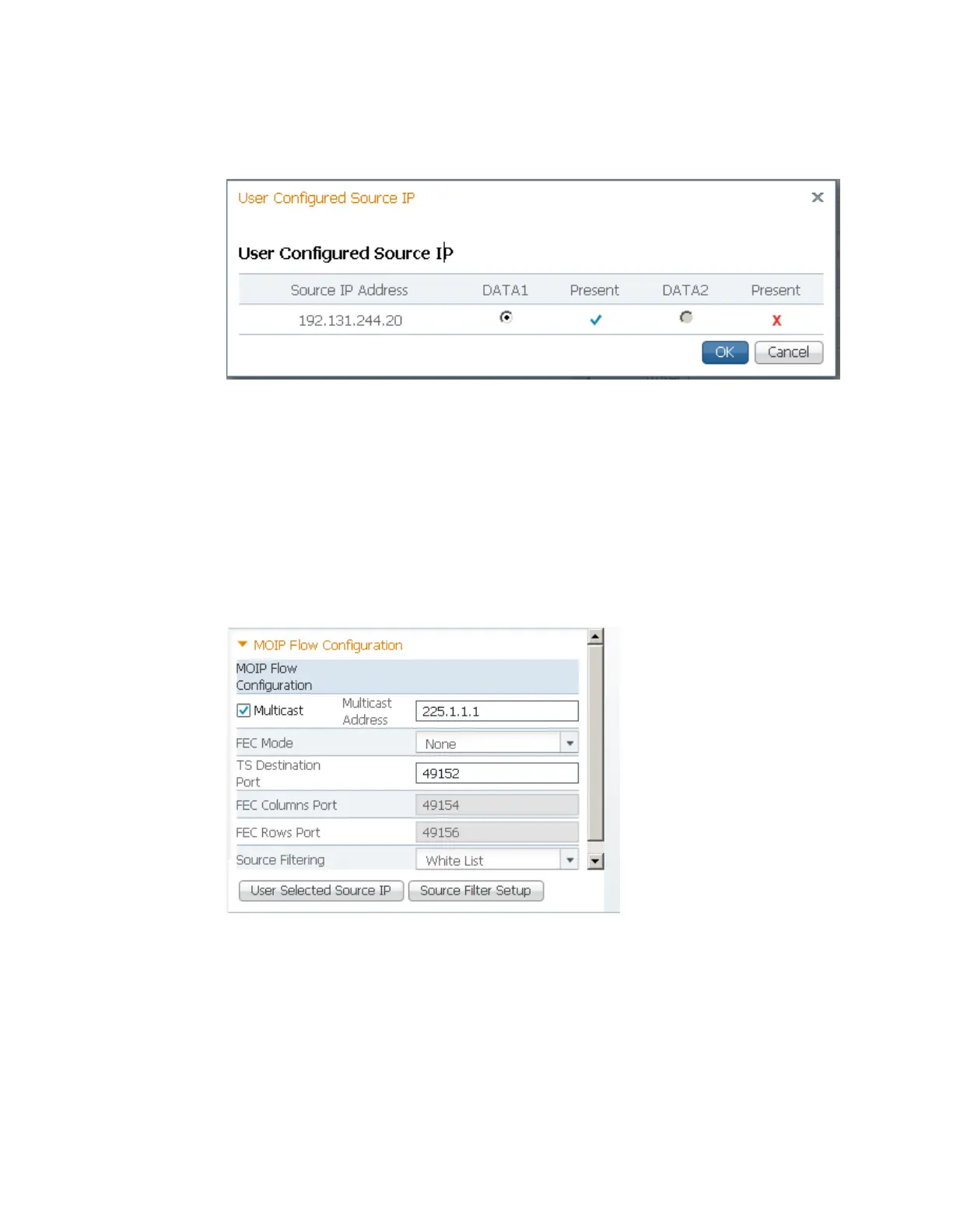

5 If UserCfg is selected as the Source IP Selection Mode, click User Selected
Source IP to select the DATA1 or DATA2 ports.
a Click the DATA1 or DATA2 radio button. The Source IP Address displays
the host (originator) IP address of the incoming stream. The Present columns
display whether the stream is present on the Data1 and Data2 ports.
Note: If the stream is not present on the specific port, it cannot be selected.
b Click OK.
6 Click Apply.
Configuring MPEG over IP Flow
1 In the Input Setup page (Input > Input Setup), click the IP tab. Refer to the
MOIP Flow Configuration area.
2 Check the Multicast check box to use multicast streaming. Otherwise, uncheck
the Multicast check box to listen to the unicast streams that are sent to the IP
addresses of the DATA1 and DATA2 ports.
3 If Multicast is selected, enter the multicast destination IP address in the
Multicast Address field.
