Chapter 4 Front Panel Operation
80
Stream
TV A/R
Conversion
Act Conv

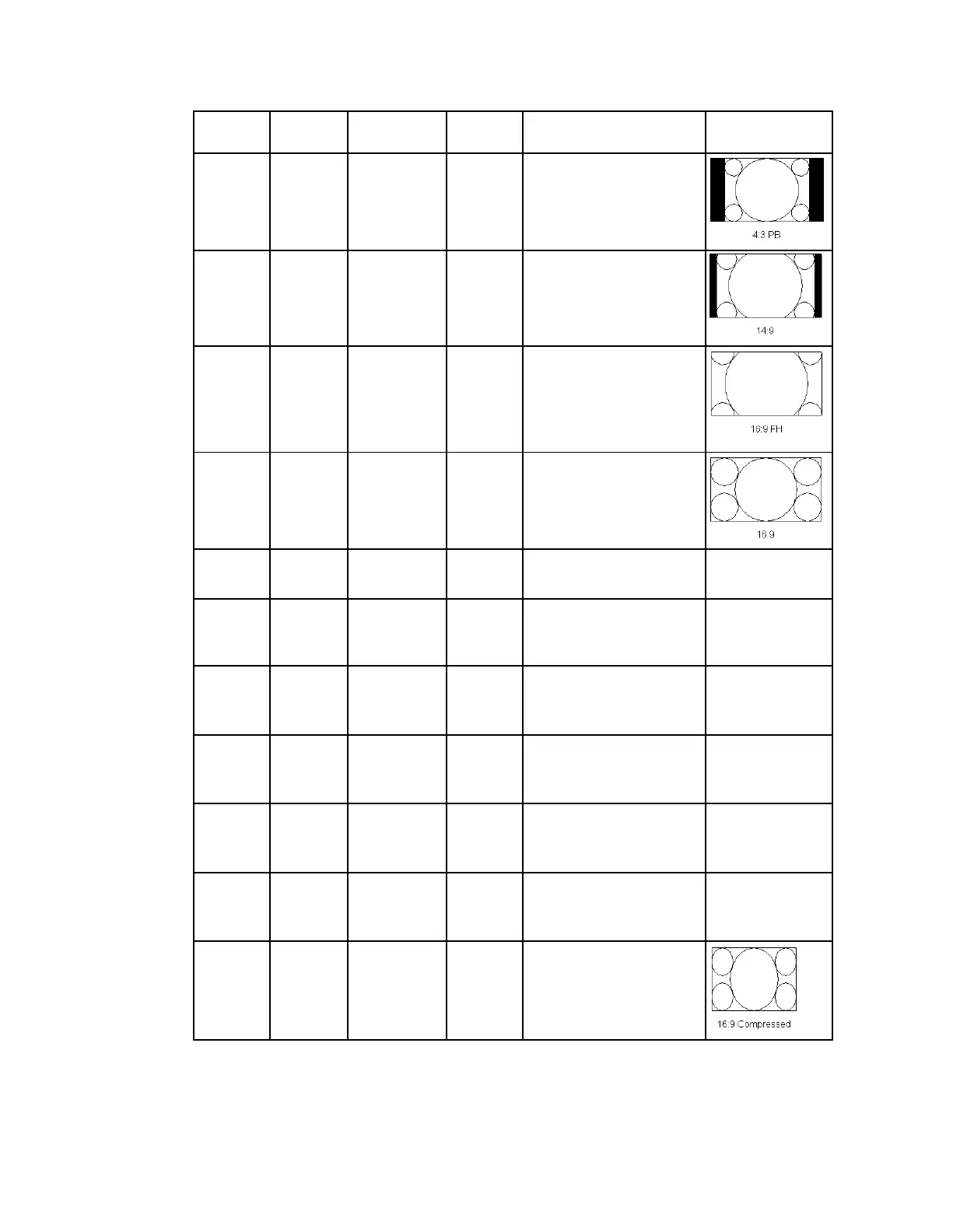

Description
4:3
16:9
4:3 P/B
4:3 P/B
4:3 picture is centered in
a pillar-style box.
4:3
16:9
14:9
14:9
Compromises some up-
sampling. Some black
bars and cropping are
visible.
4:3
16:9
16:9 SCALE
16:9
SCALE
Vertically up-samples
the center of the 4:3
picture and crops the
top and bottom of the
screen.
16:9
16:9
None
None
Normal
16:9
16:9
Auto
None
No conversion. Normal
picture.
16:9
16:9
16:9 L/B
None
Conversion is not
possible. Normal
picture.
16:9
16:9
4:3 CCO
None
Conversion is not
possible. Normal
picture.
16:9
16:9
4:3 P/B
None
Conversion is not
possible. Normal
picture.
16:9
16:9
14:9
None
Conversion is not
possible. Normal
picture.
16:9
16:9
16:9 SCALE
None
Conversion is not
possible. Normal
picture.
16:9
4:3
None
None
Picture appears tall and
thin.
