Cisco D9858 User Manual

Setup Menu
81

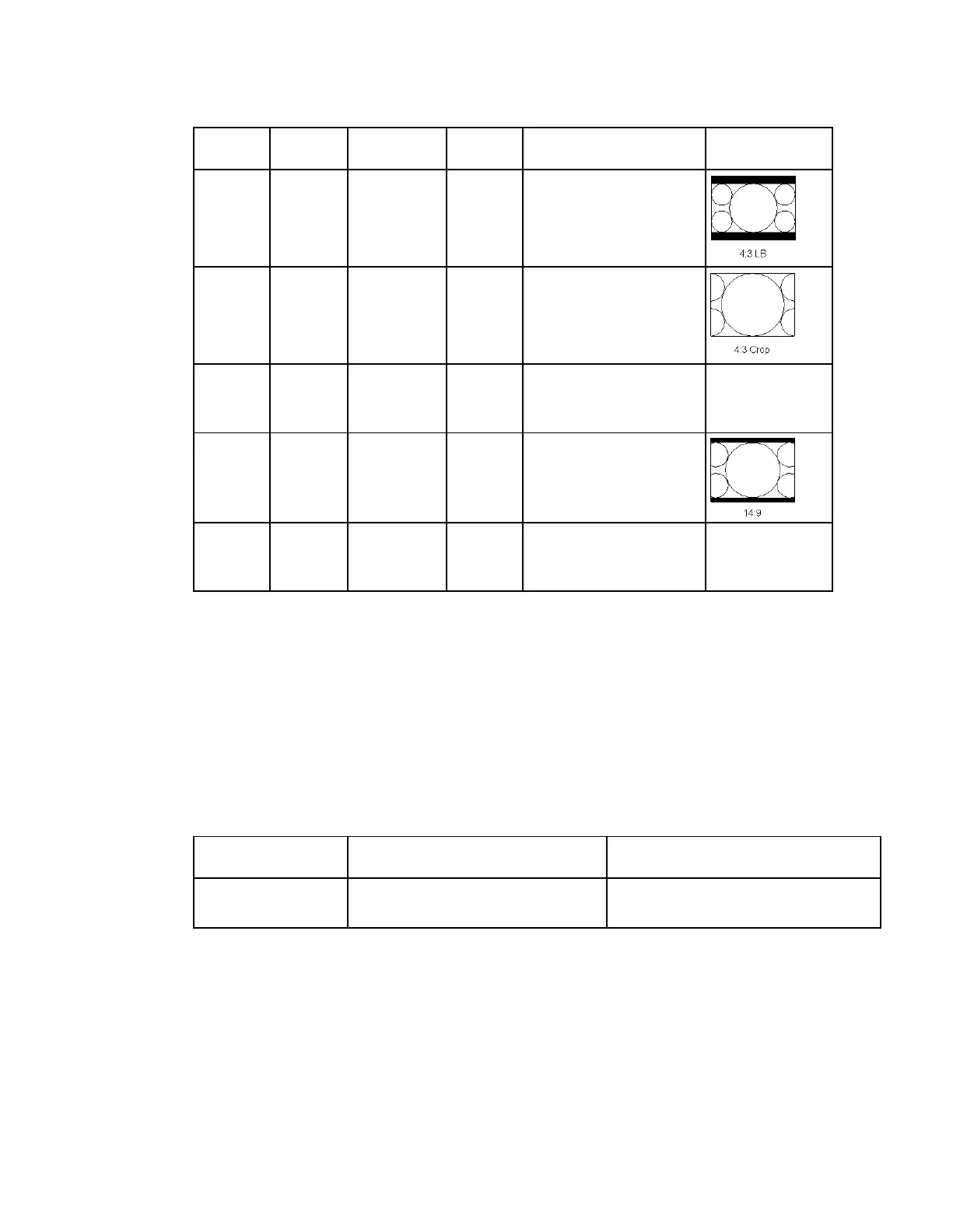

Stream
TV A/R
Conversion
Act Conv
Description
16:9
4:3
16:9 L/B
16:9 L/B
Vertically down-samples
the picture and applies
black bars at the top and
bottom of the screen.
16:9
4:3
4:3 CCO
4:3 CCO
Horizontally up-samples
the center portion of the
picture to fill the screen.
16:9
4:3
4:3 P/B
None
Conversion is not
possible. Picture appears
tall and thin.
16:9
4:3
14:9
14:9
Compromises some up-
sampling. Some black
bars and some cropping
are visible.
16:9
4:3
16:9 SCALE
None
Conversion is not
possible. Picture appears
tall and thin.
Note: Active Format Descriptor (AFD) - normally it is necessary to set both the TV
Aspect Ratio and Conversion to correctly display the video program on the TV
system. The Auto AFD option enables the receiver output to automatically match the
display format of the video program to the TV system based on specific (uplink)
program information carried in the transport stream. In this case, the receiver
performs the conversion based on the TV Aspect Ratio setting combined with the
program-specific uplink information to provide the “best fit” for display of the
program material on the TV. This feature is primarily used in 16:9 and 14:9 (wide
screen) applications.
Audio
Menu Item
Description
Parameters
Aud#
Sets which balanced audio output
on the rear panel to configure.
1 or 2
