Cisco D9858 User Manual

Chapter 5 Web GUI Setup and Monitorin g
218

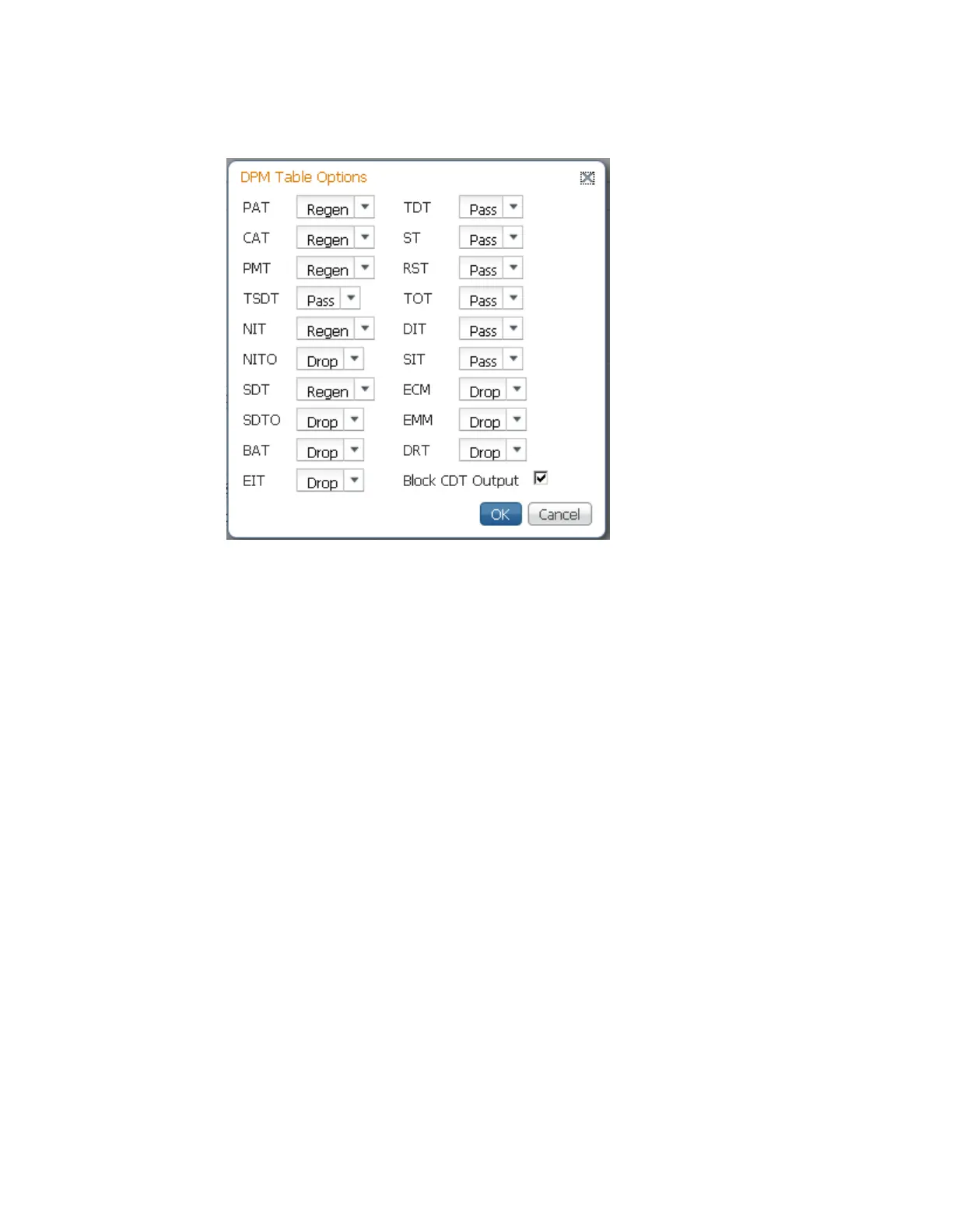

9 If Ctl By Table is selected as the PSI Table Output Option, click Table Options
to configure the DPM table options. The DPM Table Options dialog box opens.
10 Choose the tables which will be passed, dropped, regenerated or passed with
rate control (PwRC) from the MPEGoIP Output. For more information on the
table options, see PSI Table Settings.
The CDT is different from the other tables listed because the CDT is referred to
within the PMT, rather than outside the PMT. Check the Block CDT Output
check box to override the DPM PID map configuration for CDT PIDs and to
always drop all CDTs. Otherwise, uncheck the Block CDT Output check box to
permit the output of CDTs following the configured DPM PID map
configuration and all other DPM constraints.
11 Click OK.
12 Click Apply.
13 Click Copy To ASI to copy all the DPM data from the MPEG over IP output to
the ASI output.
