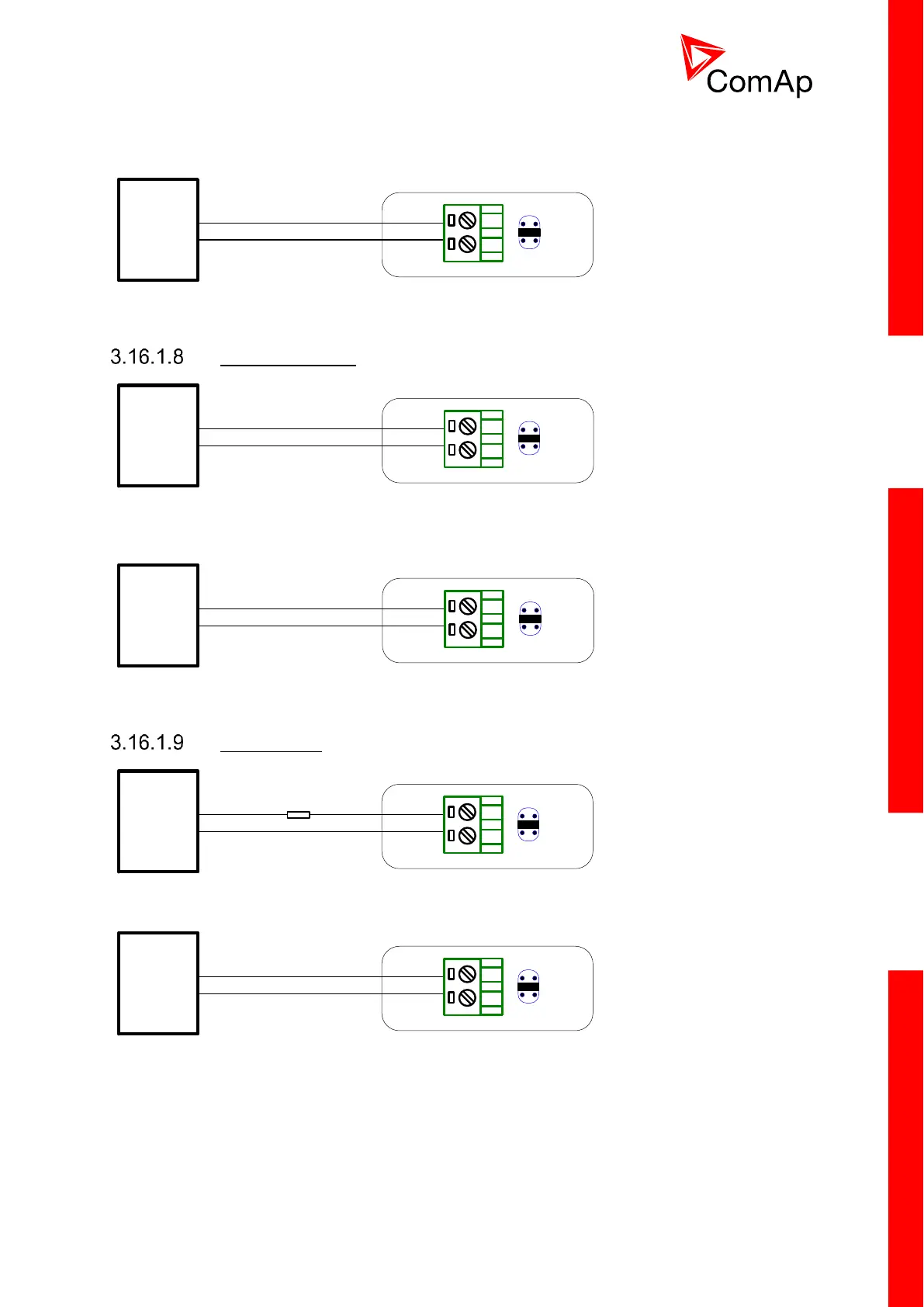

GAC
SDG 735
SG +
AO COM
VoutR
Sync/Load Ctrl:
Speed Gov Bias = 5.00 V
SpeedGovChar =
NEGATIVE
SpeedGovLowLim = 2.5 V
SpeedGovHiLim = 7.5 V
TauSpeedActuat = 1 s
Barber Colman
2
9
Barber Colman
DYNA 8000
SG +
AO COM
VoutR
Sync/Load Ctrl:
Speed Gov Bias = 6.00 V
SpeedGovChar =
POSITIVE
SpeedGovLowLim = 4 V
SpeedGovHiLim = 8 V
2
9
Barber Colman
DYN1 10684
SG +
AO COM
VoutR
Sync/Load Ctrl:
Speed Gov Bias = 6.00 V
SpeedGovChar =
POSITIVE
SpeedGovLowLim = 4 V
SpeedGovHiLim = 8 V
Heinzmann
2
9
Heinzman E6
SG +
AO COM
VoutR
150k
Sync/Load Ctrl:
Speed Gov Bias = 0.00 V
SpeedGovChar =
POSITIVE
2
9
Heinzman
E16
SG +
AO COM
VoutR
Sync/Load Ctrl:
Speed Gov Bias = 0.00 V
SpeedGovChar =
POSITIVE
