ComAp InteliCompact NT Reference Guide

InteliCompact
NT
, SW version 2.1
InteliCompact-NT-2.1-Reference Guide.pdf, ©ComAp – May 2015
47

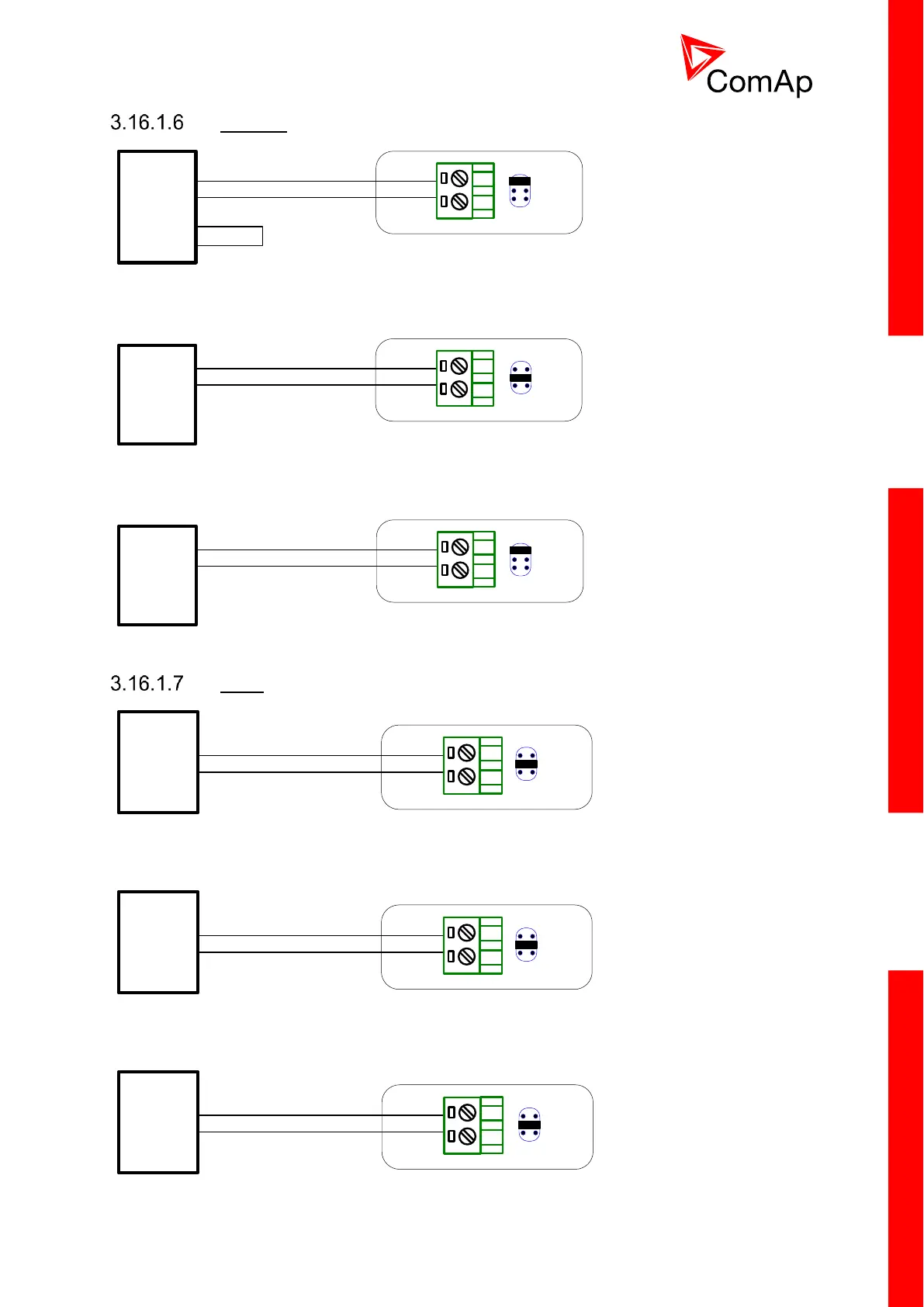

Perkins
20 (J1/3)
24 (J1/17)
PERKINS
2300, 2800
SG +
AO COM
Vout
12 (J1/18)
2 (J1/49)
Customer interface
connector (ECM connector)
Sync/Load Ctrl:
Speed Gov Bias = 2.50 V
SpeedGovChar = POSITIVE
SpeedGovLowLim = 0.5 V
SpeedGovHiLim = 4.5 V
VBREF GND
RPS INPUT
PERKINS
1300 EDi
SG +
AO COM
VoutR
Sync/Load Ctrl:
Speed Gov Bias = 2.50 V
SpeedGovChar = POSITIVE
SpeedGovLowLim = 0.8 V
SpeedGovHiLim = 4.5 V
19
18
PERKINS
4016 E61 TRS
SG +
AO COM
Vout
Sync/Load Ctrl:
Speed Gov Bias = 5.00 V
SpeedGovChar = POSITIVE
SpeedGovLowLim = 2.5 V
SpeedGovHiLim = 7.5 V
GAC
G
N
GAC
ESD 5500
SG +
AO COM
VoutR
Sync/Load Ctrl:
Speed Gov Bias = 5.00 V
SpeedGovChar =
NEGATIVE
SpeedGovLowLim = 4 V
SpeedGovHiLim = 6 V
G
M
GAC
ESD 5330
SG +
AO COM
VoutR
AUX
Sync/Load Ctrl:
Speed Gov Bias = 5.00 V
SpeedGovChar =
NEGATIVE
2
25
GAC
EGS 104B
SG +
AO COM
VoutR
Sync/Load Ctrl:
Speed Gov Bias = 5.00 V
SpeedGovChar =
NEGATIVE
SpeedGovLowLim = 4 V
SpeedGovHiLim = 6 V
