LEFTPADDLE
RIGHT PADDLE
Resistive Element
Resistive Element
'tV'
T'
Pin 7 Pin 9 Pin 7 Pin 5
I- F;re Button-----1
I-F;re Button-----1
Pin 3 Pin 4
(All pin numbers refer
to a common connection to a single controller input port.)

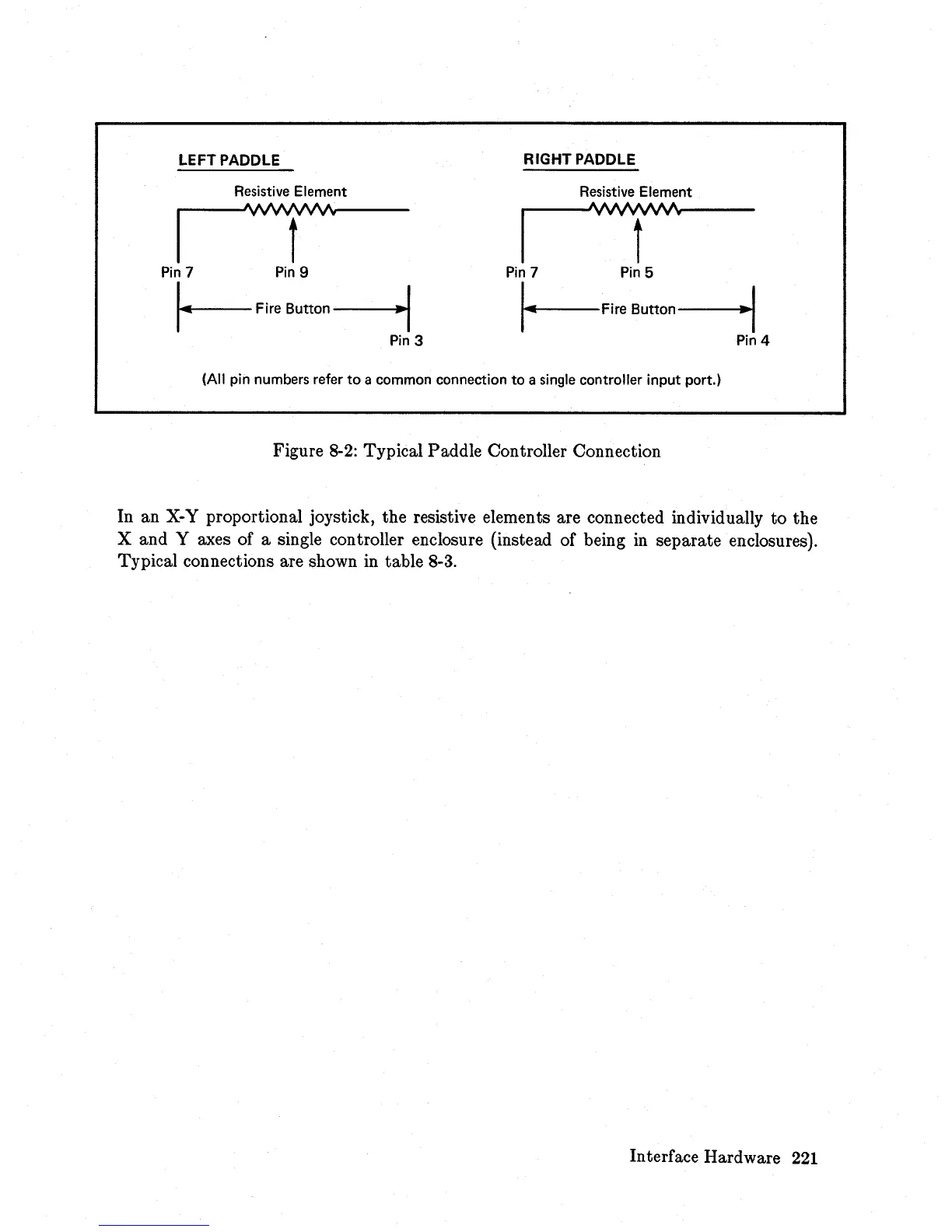

Figure 8-2: Typical Paddle Controller Connection
In an X-Y proportional joystick, the resistive elements are connected individually to the
X and Y axes of a single controller enclosure (instead of being in separate enclosures).
Typical connections are shown in table 8-3.
