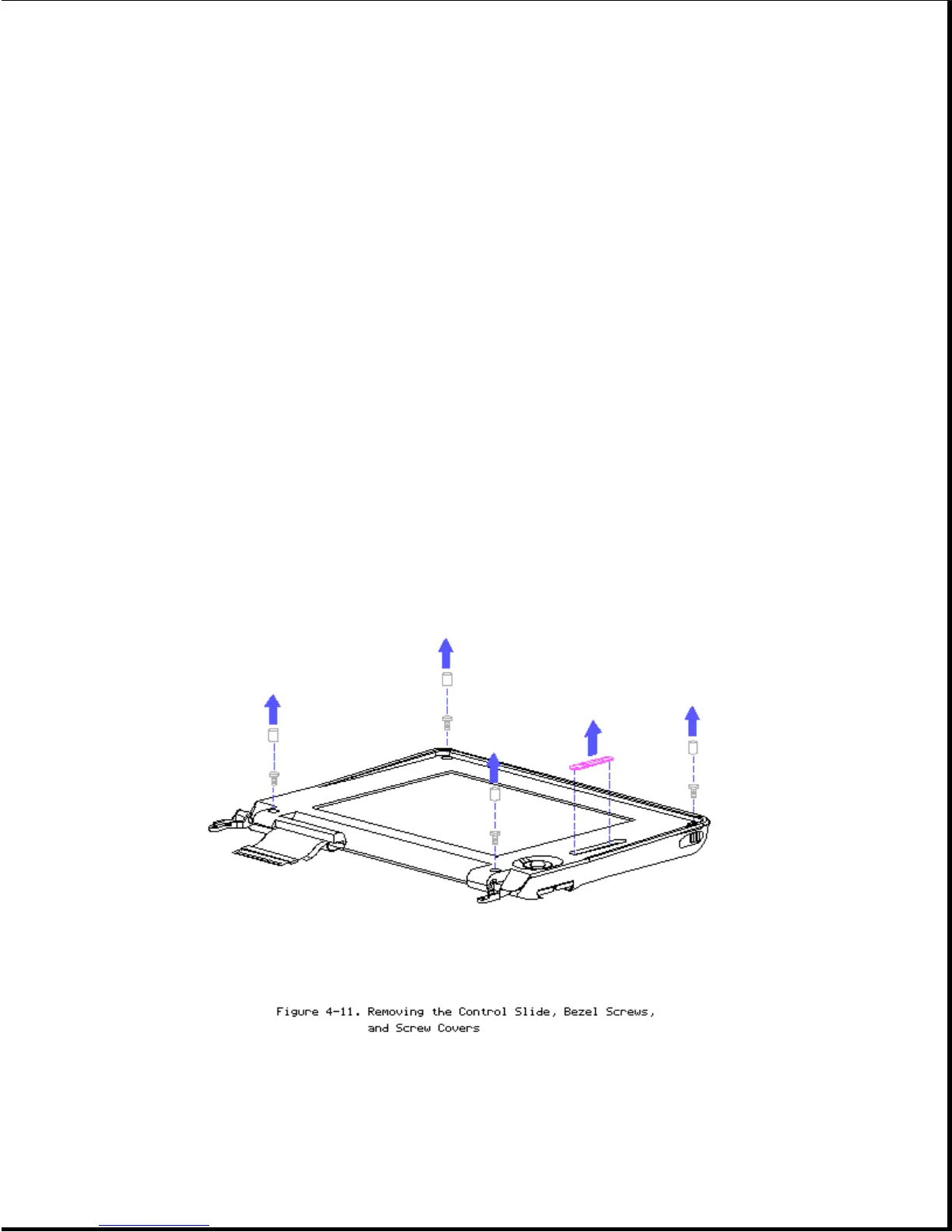

1. Remove the display control slide(s) by lifting up on one of its ends
(Figure 4-11).
NOTE: The color STN display has two control slides (brightness and
contrast), while all other displays have only one control slide
(brightness).
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>> CAUTION <<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<
To prevent damage to the inverter board when replacing the display control
slide(s), fully snap the bezel back into place before you replace the
slide(s). Insert the slide(s) back into place, ensuring that they are
properly aligned with the controls on the inverter board.
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>><<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<
2. Remove the four screws and screw covers from the corners of the display
bezel (Figure 4-11).
3. Pull the bezel away from the display enclosure by separating the snaps.
Begin unsnapping the bezel along the top inside edge of the viewing area
