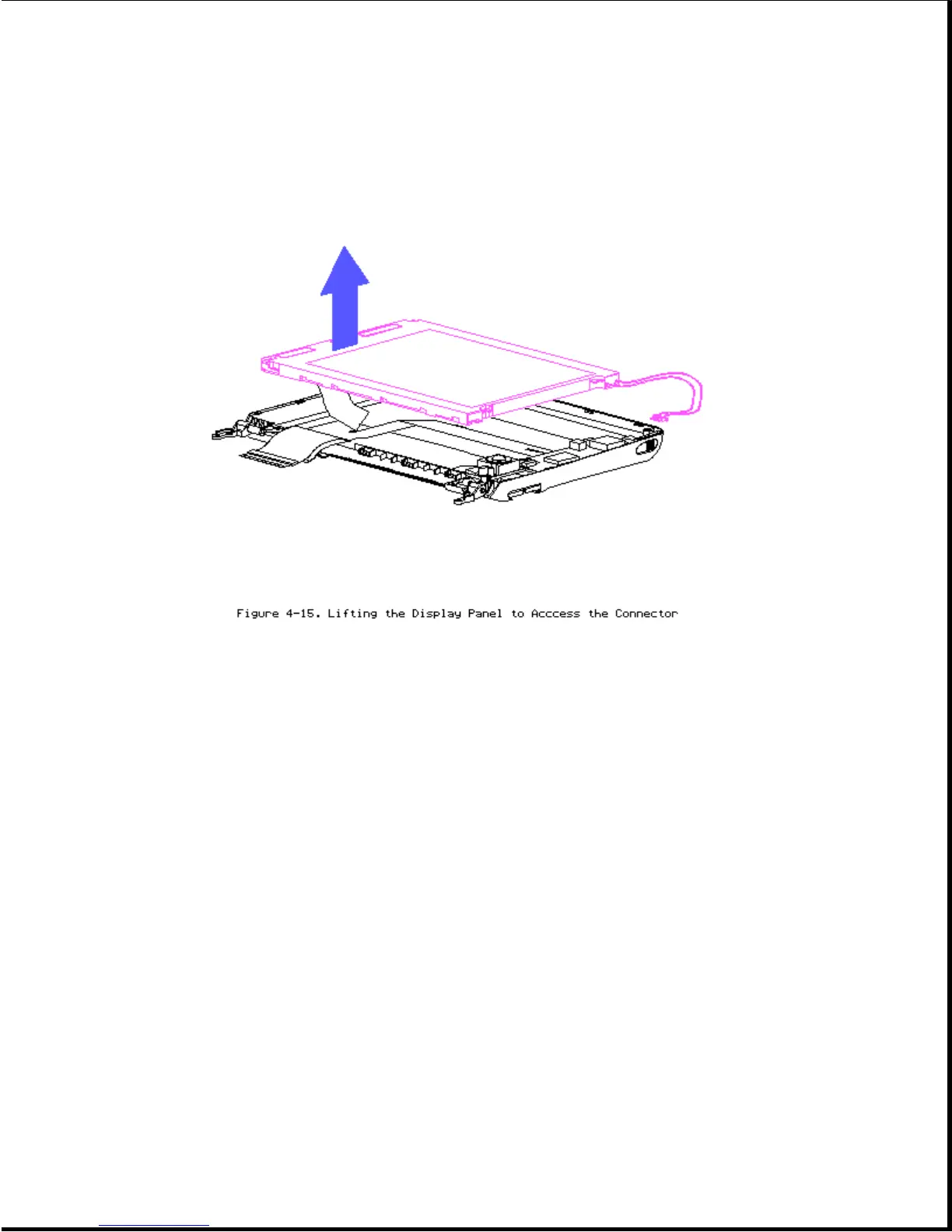

>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>> CAUTION <<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<
The display cable and ZIF connector on the black-and-white TFT display
panel can be easily damaged. Handle only the connector slide when removing
or replacing the cable; never pull or twist on the cable while it is
connected. Lift both corners of the ZIF connector slide simultaneously with
constant light force until the connector slide releases.
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>><<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<
5. Remove the display cable connector from the display panel (Figure 4-16).
The display panel has one of the following types of connectors:
o Plug-and-socket type for the color TFT and color STN displays [1].
o ZIF type for the black-and-white TFT display [2].
