Compaq LTE Elite User Manual

removing or replacing the ejector rails.

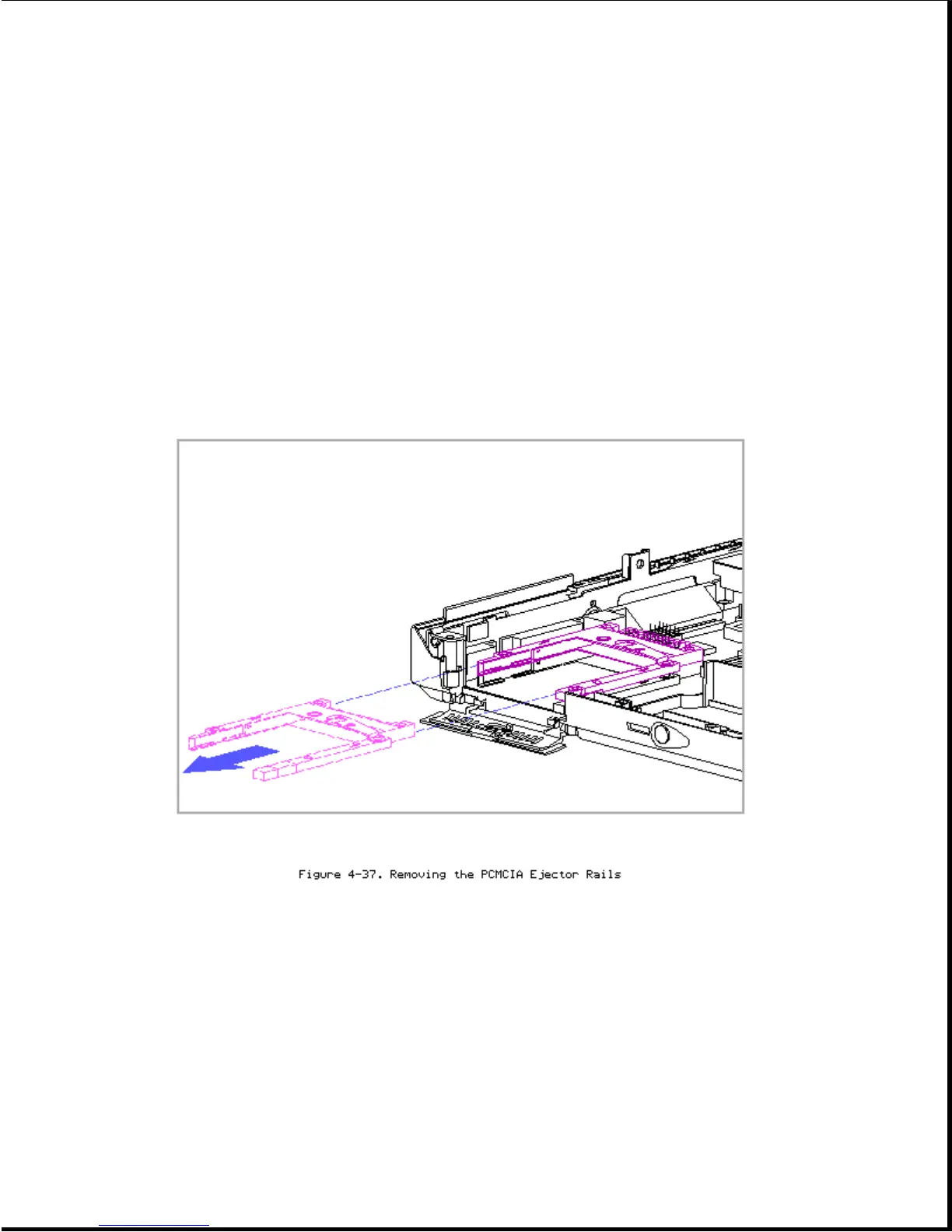

Removing the PCMCIA Ejector Rails
To remove the PCMCIA ejector rails, complete the following steps:
1. Remove the keyboard cover (Section 4.7).
2. Remove the PIB, PIB insulator, and PIB shield (Section 4.14).
3. Remove the top ejector rail by sliding it gently but firmly out of the
system unit (Figure 4-37).
4. Repeat step 3 for the bottom ejector rail.
Replacing the PCMCIA Ejector Rails
IMPORTANT: When replacing the ejector rails, be sure that the metal eject
lever on the rails seats fully into the narrow slot in the
PCMCIA connector. If the rails are not fully seated in the slot
in the connector, they will not line up with the holes for the
