mounting screws.
To replace the PCMCIA ejector rails, complete the following steps:

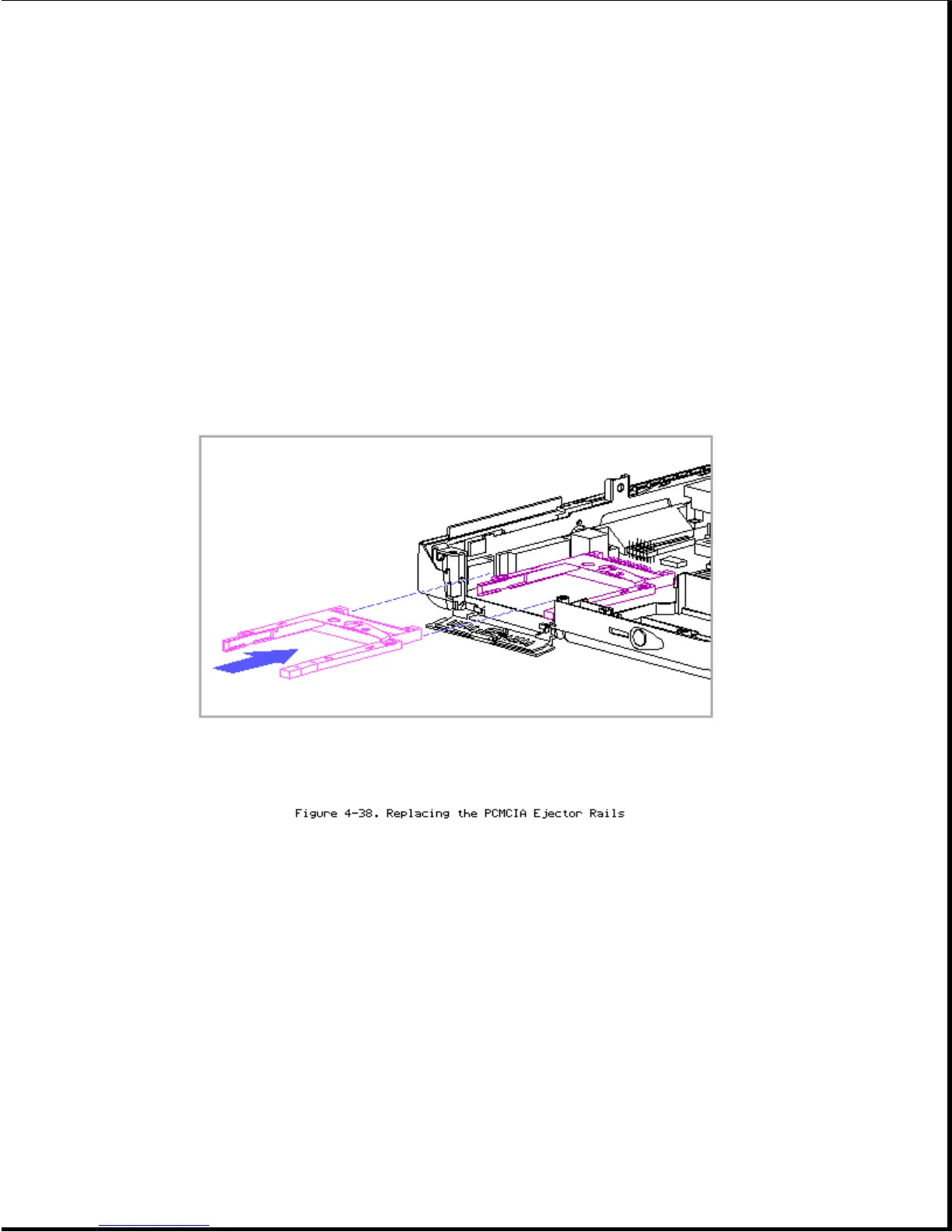

1. Slide the bottom ejector rail into position until it locks into place
(Figure 4-38).
2. Slide the top ejector rail into position until it locks into place
(Figure 4-38).
3. Insert the PCMCIA spacer into the rails to assist with rail alignment
(Figure 4-39).
