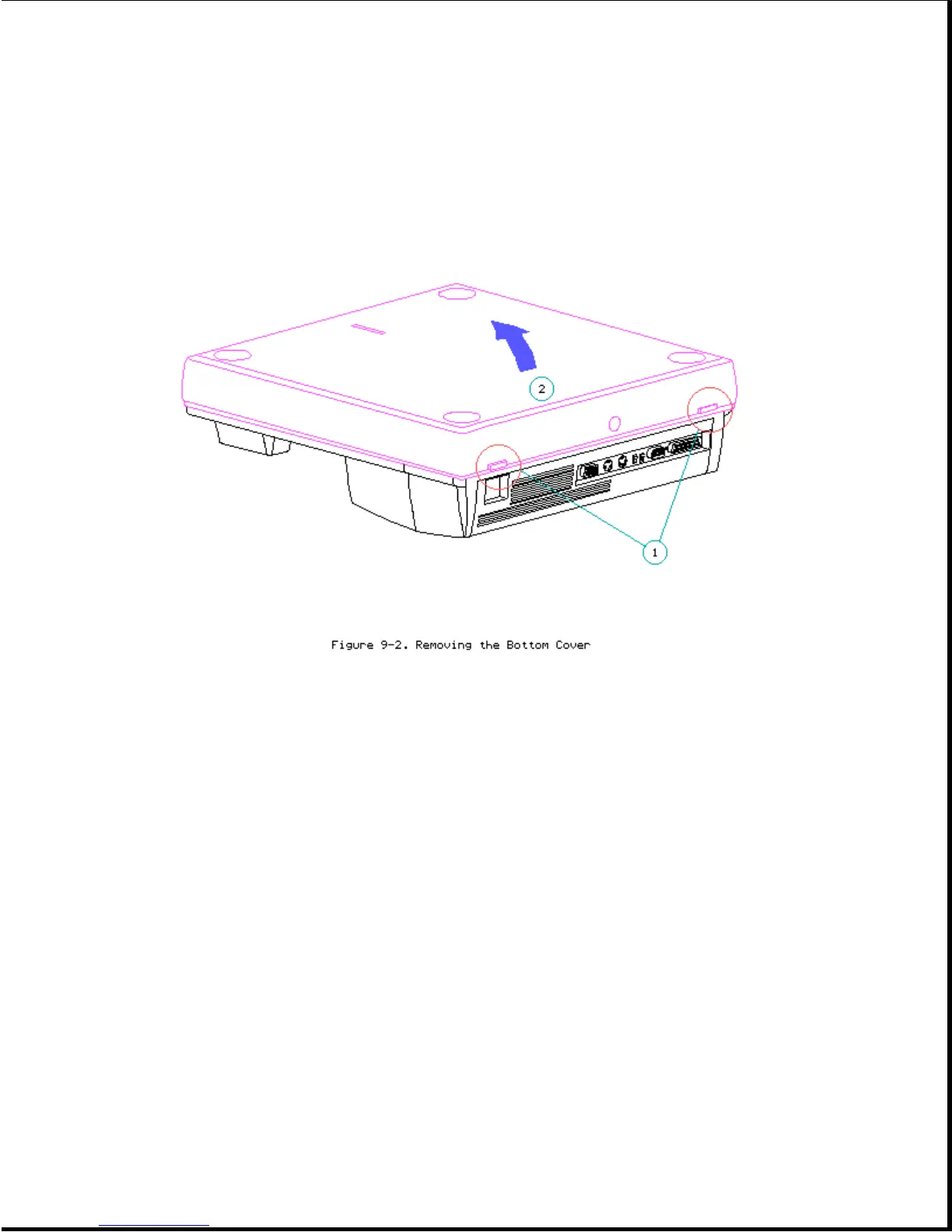

NOTE: The front edge of the bottom cover is toed-in to the expansion base.
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>> CAUTION <<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<
The toe-in feature connects the front edge of the bottom cover at three
points. When replacing the bottom cover, ensure that all three points are
lined up (Figure 9-3), that cables will not be pinched when the bottom
cover closes, and that both latches snap back into place.
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>><<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<
