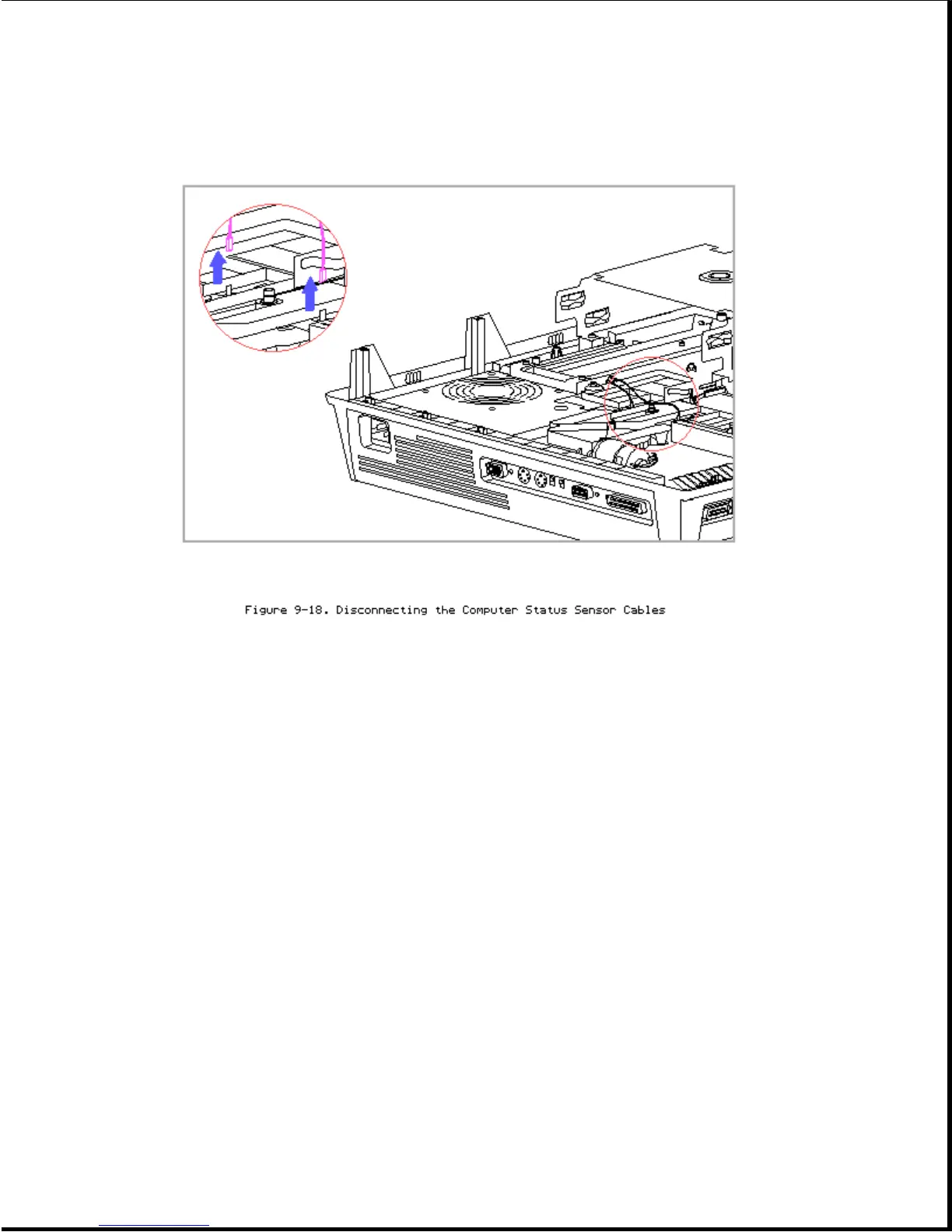

IMPORTANT: When replacing the docking mechanism, ensure that the computer
status sensor is reconnected. If it is not reconnected the
computer cannot dock.
6. Remove the four screws [1], [2] that attach the docking mechanism [3] to
the top cover (Figure 9-19).
IMPORTANT: One of the docking mechanism screws [1] is longer than the
others [2] (Figure 9-19).
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>> CAUTION <<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<
To properly secure the docking mechanism and avoid damage to the top cover
when replacing the mechanism, the longer screw must be replaced in the
proper hole.
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>><<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<
7. Remove the docking mechanism [3], ensuring that you clear the power
cable harness and the drive cage spacer [4] (Figure 9-19).
