To avoid damage to the cable harnesses or the harness extension cable, be
sure to press and hold the lock on the connector before removing the cable
harnesses.
>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>><<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<

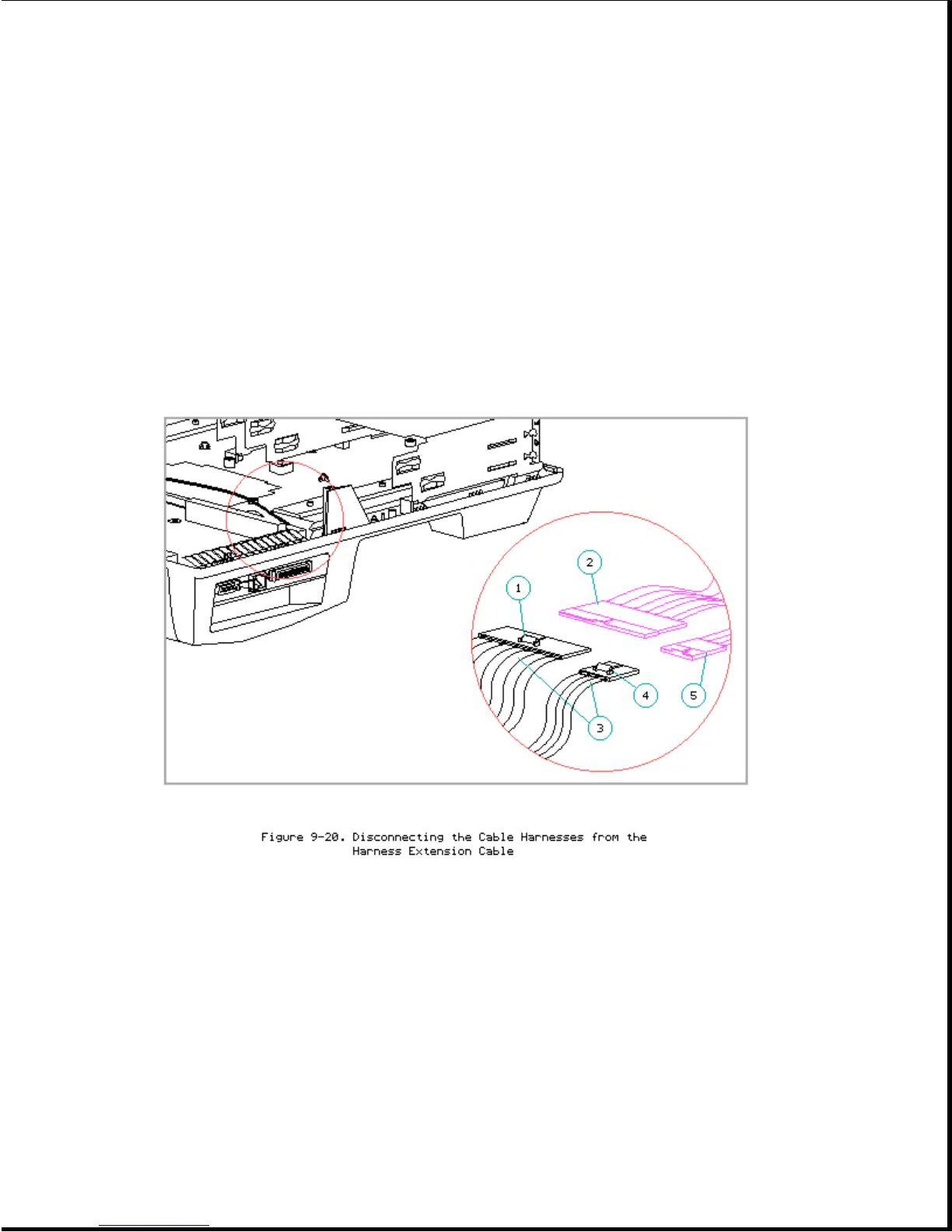

6. Press the lock [1] to disconnect the power switch cable harness [2]
from the harness extension cable [3] (Figure 9-20).
7. Press the other lock [4] to disconnect the eject switch cable harness
[5] (Figure 9-20).
IMPORTANT: When replacing the system board/battery charging
compartment, ensure that the cable harnesses are reconnected
to the harness extension cable or the computer cannot dock
and undock properly. Ensure that the two cable locks on the
harness extension cable snap back into place.
8. Remove the three remaining screws that attach the system board and
battery charging compartment to the top cover (Figure 9-21).
IMPORTANT: When replacing the three screws for the system board/battery
charging compartment assembly, leave the screws loose until
the long docking mechanism screw is tightened first [1]
