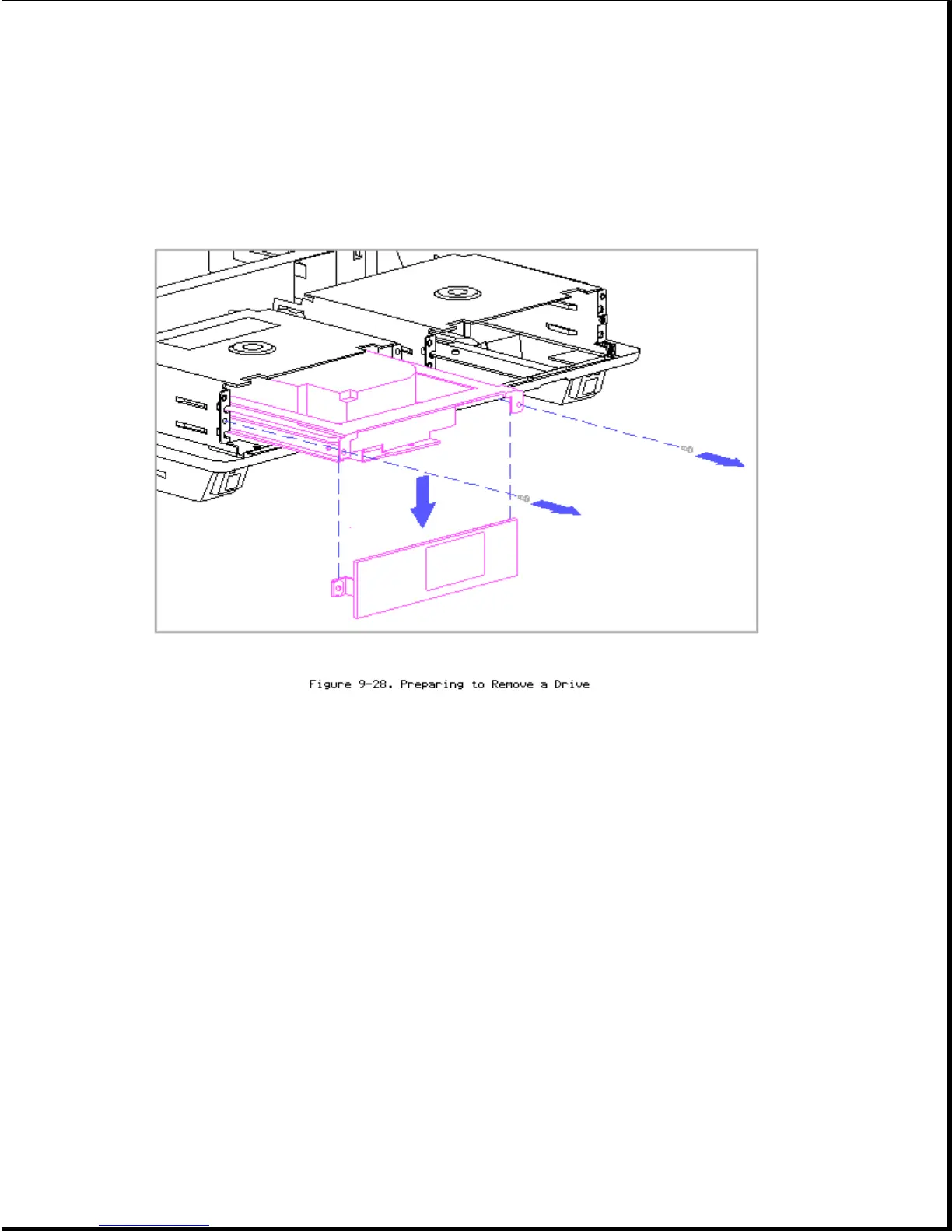

the front of the drive bay (Figure 9-28).
3. Pull the drive halfway out to access the drive cables (Figure 9-28).
4. Disconnect the cables from the drive.
5. Remove the drive.
NOTE: The expansion base comes from the factory with blank panels covering
the openings to the drive bays. If no drive is to be reinstalled in
the drive bay, cover the opening by installing the blank panel with
the two drive-mounting screws.
Installing a Drive
IMPORTANT: Refer to Table 8-10 for a list of Compaq supported drives. To
be supported in the expansion base, drives that are not listed
in table 8-10 must meet the maximum drive bay length
requirements listed in Section 10.1 and the power requirements
listed in Section 10.2.
The steps for installing a drive are the reverse of the steps for removing a
