Daedong DK4520 - 7-Pin Socket (Optional)

4
4
-
53
FUNCTION DESCRIPTION AND OPERATING TIPS
1
1
11

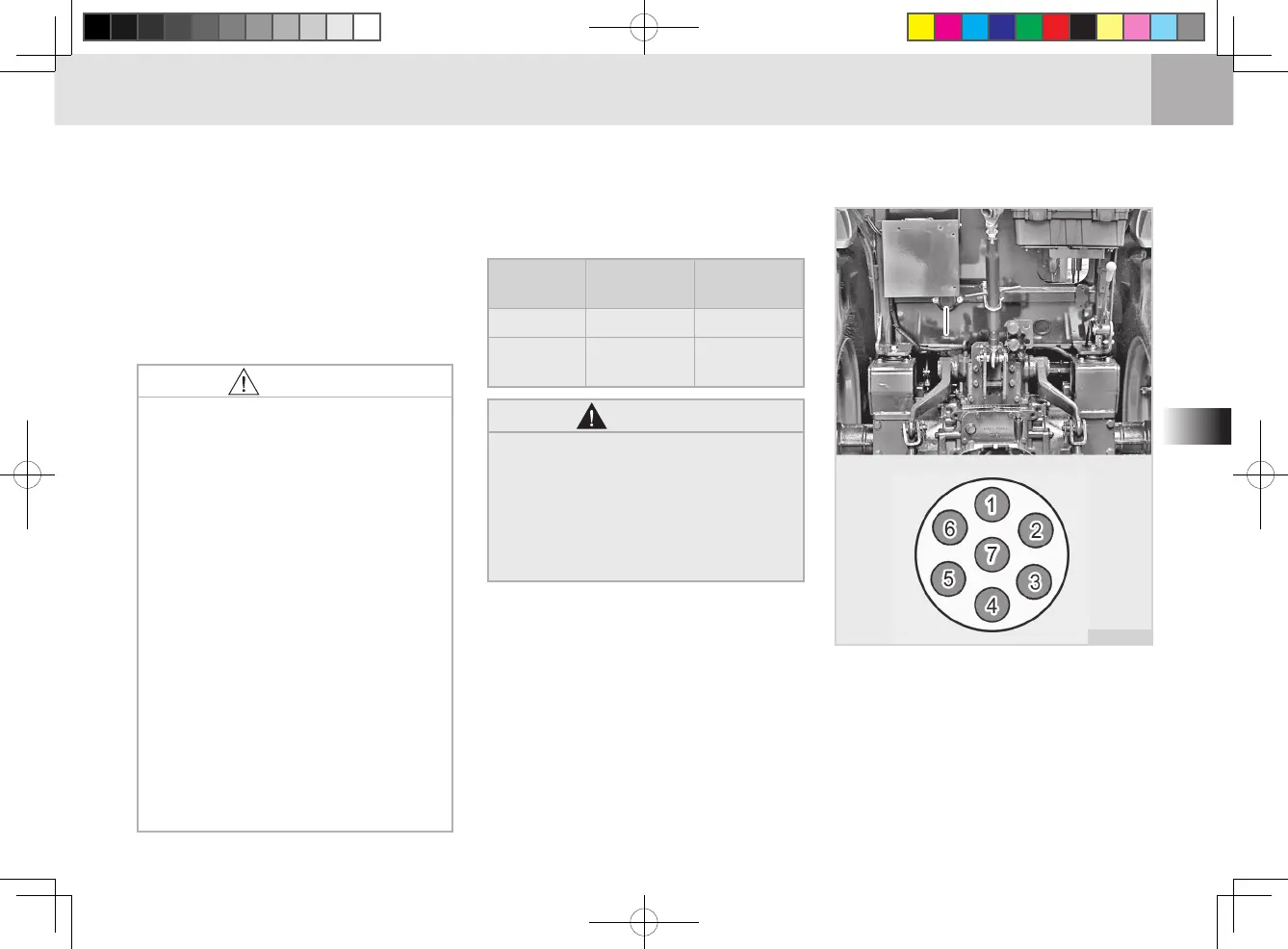

7-PIN SOCKET (OPTIONAL)
The 7-pin socket is installed on the
rear left side of the tractor.
This supplies power to the brake
lamps, turn signal lamps, and posi-
tion lamps of the trailer.
(1) Power Connector
SPECIFICATIONS FOR A/C
REFRIGERANT AND LUBRICANT
Item
New
refrigerant
Compressor
oil
Type R-134a UCON488
Charging
amount
0.55 kg 120 g
a soft brush and water carefully
not to bend it.
3. Operation in summer season:
Make sure to check the tension of
the A/C belt before using the A/C
frequently.
D21O433A
WARNING
• Have the air conditioner ser-
viced by a qualified service
personnel. If it is serviced by
an unqualied person, he/she
can be injured by the refrigerant
under high pressure.
CAUTION
• The A/C system is charged
with new refrigerant that does
not destroy the ozone layer. Be
careful when servicing the A/C
system.
• Do not use unspecied refriger-
ant and compressor oil, or the
air conditioner system could be
seriously damaged.
• The performance of the A/C
becomes poor when the refrig-
erant is insu󰀩cient. However,
charging the air conditioner
with excessive refrigerant af-
fects its performance negative-
ly. Therefore, have the system
checked by a KIOTI Dealer if
malfunction is found.
