MAINTENANCE

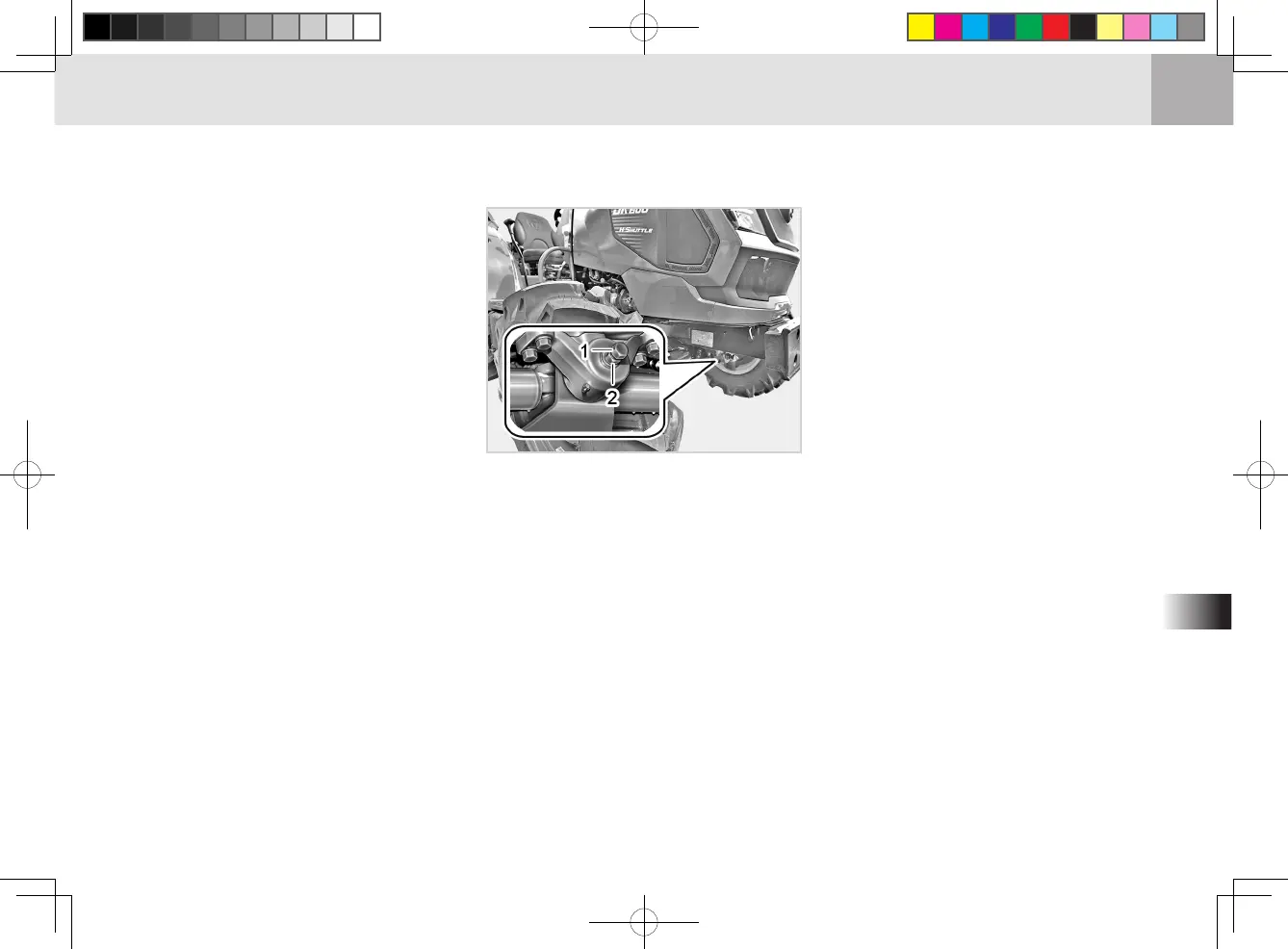

(1) Adjusting Screw (2) Lock Nut
EVERY 600 HOURS
ADJUSTING FRONT AXLE PIV-
OT PIN
If the front axle pivot pin adjustment
is not correct, front wheel vibration
can occur.
ADJUSTING PROCEDURE
Loosen the lock nut, tighten the ad-
justing screw all the way, and then
loosen the screw by 1/6 turn. Re-
tighten the lock nut.
D22O717A
1. See pages 8-14.
REPLACING TRANSMISSION
FLUID
Improper adjustment of the valve clear-
ance can reduce the performance
and / or damage the engine. This ad-
justment should only be preformed by
a certied KIOTI dealer.
EVERY 800 HOURS
ADJUSTING ENGINE VALVE
CLEARANCE
