Daedong DK4520 - Adjusting Fan Belt Tension; Adjusting Clutch Pedal

58
8
-
19
MAINTENANCE

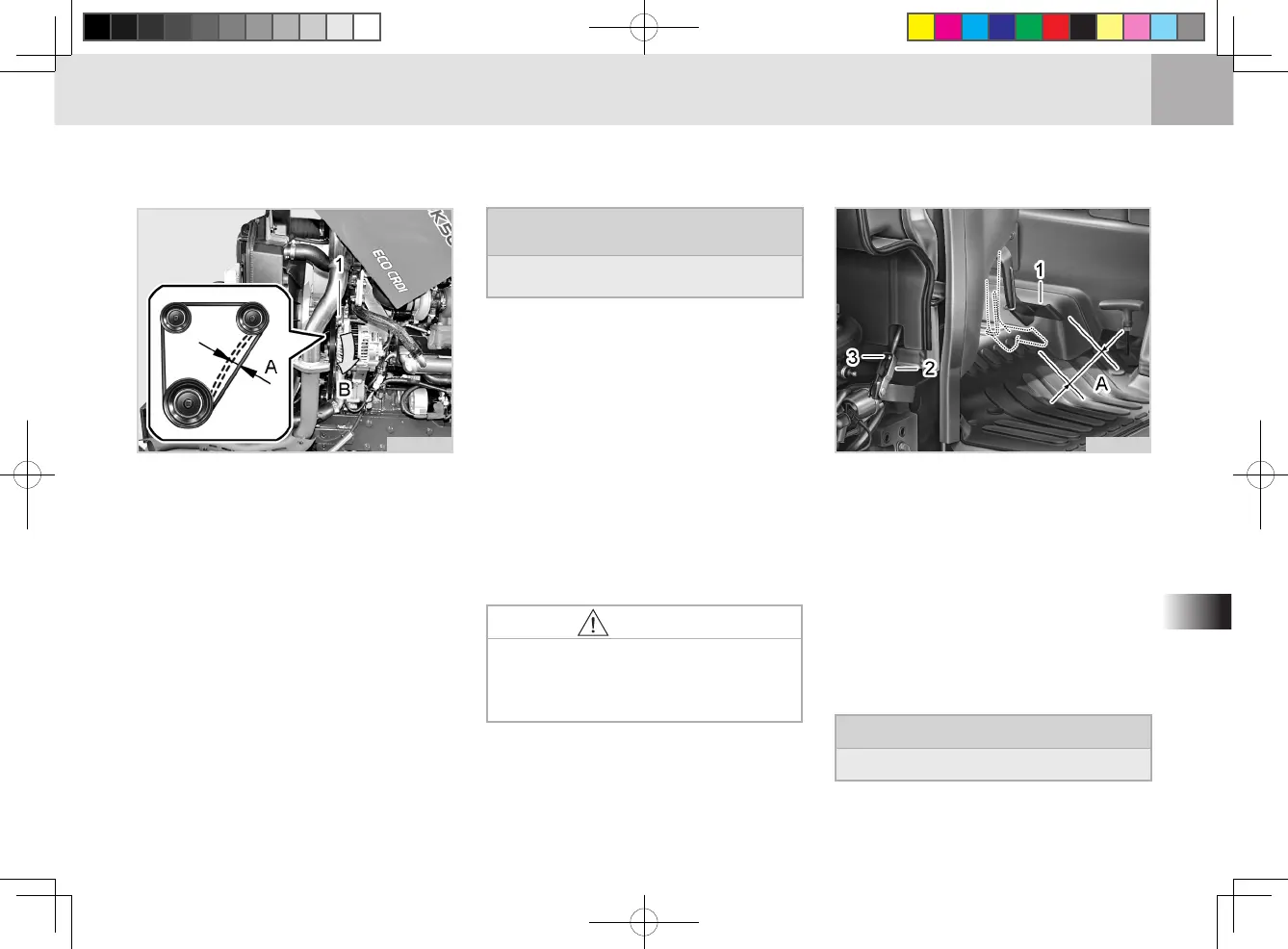

(1) Adjusting Bolt
(A) Adjusting Belt Tension (B) Pull
ADJUSTING FAN BELT TENSION
In order to extend the fan belt’s life-
time, the tension of the belt should
be correctly adjusted if it slips. The
belt tension should be inspected
regularly according to the following
procedure:
1. Stop the engine and apply the
parking brake.
2. Open the hood.
3. In order to measure the belt ten-
sion, apply thumb pressure strong-
ly to the “A” location of belt.
TD2O725A
4. If the tension is incorrect, loosen
the alternator mounting bolts and,
using a lever placed between the
alternator and engine block, pull
the alternator out until the deec-
tion of the belt falls within accept-
able limits.
5. Be sure to retighten the alternator
mounting bolt and hinge bolt se-
curely after adjusting belt tension.
6. Replace the fan belt if it is dam-
aged, cracked or worn.
Belt deection for
proper fan belt tension (A)
A deection of between
0.27 ~ 0.35 in. (7 ~ 9 mm)
(1) Brake Pedal (2) Clutch Cable
(3) Lock Nut
(A) Free Play
ADJUSTING CLUTCH PEDAL
1. If the clutch does not operate prop-
erly due to its excessive play, or
periodically, adjust its play.
2. To adjust the free play, unscrew its
lock nut and adjust the clutch cable.
3. After setting the play properly,
tighten the lock nut rmly.
Proper clutch pedal free play (A)
0.78~1.18 in. (20~30 mm)
H11O726A
CAUTION
To avoid injury:
• Be sure to stop the engine be-
fore checking belt tension.
