Daedong DK4520 - Instrument Cluster; Instrument Cluster Features

4
-
14
DK4220/4520/4720/5020/5320/5520/6020

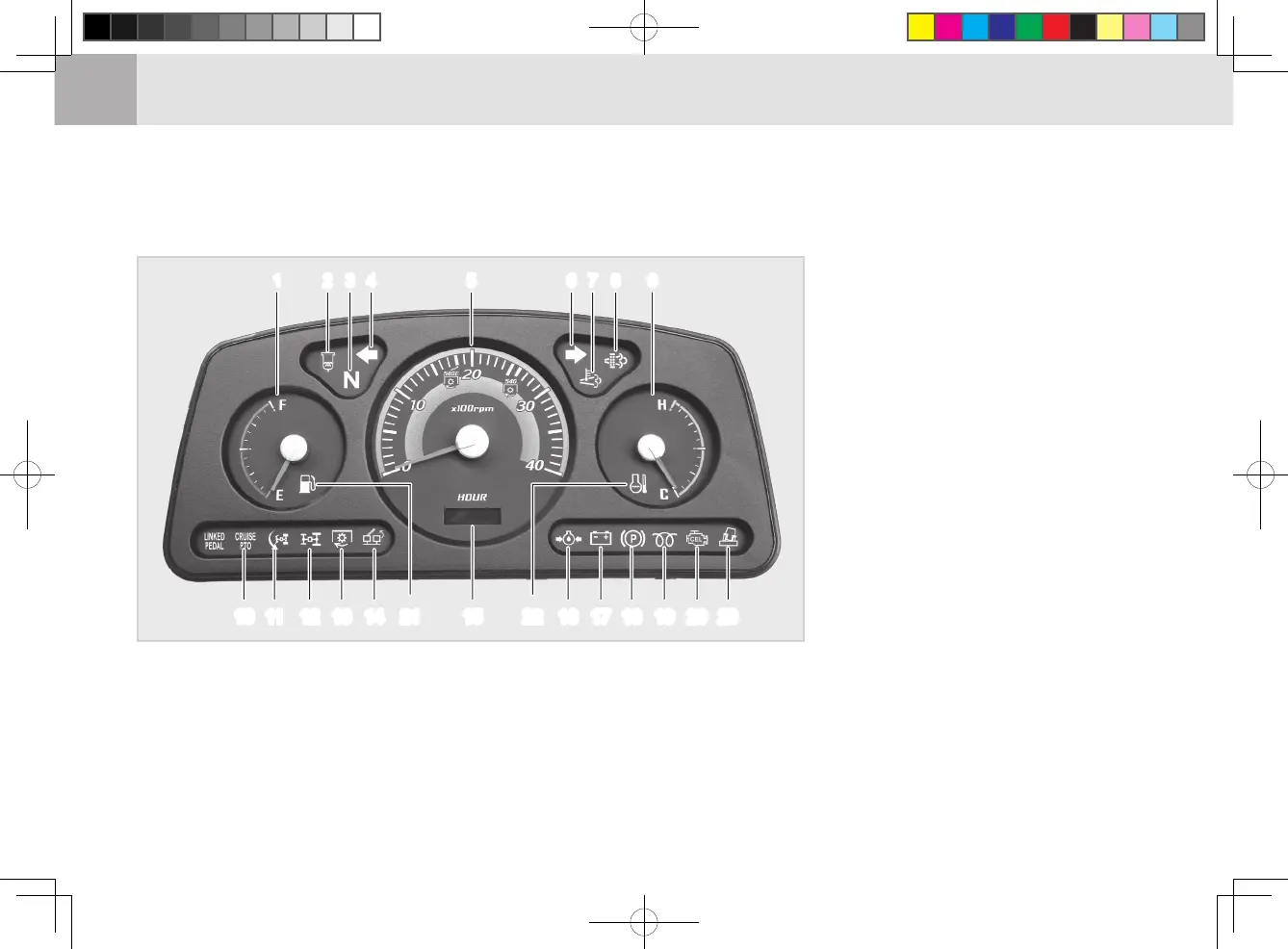

(1) Fuel Gauge
(2) Water-in-fuel Warning Lamp
(3) Neutral Indicator
(4) Turn Signal Lamp (LH)
(5) Tachometer
(6) Turn Signal Lamp (RH)
(7) DPF Regeneration Underway Lamp
(8) DPF Regeneration Warning Lamp
(9) Coolant Temperature Gauge
(10) Cruise PTO Warning Lamp
(11) Quick-turn Indicator (If applicable)
(12) 4WD Indicator
(13) PTO Indicator
(14) Single Brake Light
(15) Hourmeter
(16) Engine Oil Pressure Warning Lamp
(17) Low Battery Charge Warning Lamp
(18) Parking Brake Indicator
(19) Glow Plug Indicator
(20) Engine Check Lamp
(21) Lack Of Engine Warning Light
(22) Coolant Temperature Warning Light
(23) Auto Balance Lamp (If equipped)
INSTRUMENT CLUSTER
INSTRUMENT CLUSTER FEATURES
Symbols on the instrument panel come on when the key switch is turned to the “ON” position.
10 11 12 13 14 15 16 17 18 19 2021 22
1 92 3 4 5 6 7 81 92 3 4
10 11 12 13 14 15 16 17 18 19 2021 22
5 6 7 8
2323
