Daedong DK4520 - Cleaning Grill, Radiator Screen; Checking Brake and Clutch Pedals

8
-
16
DK4220/4520/4720/5020/5320/5520/6020
TD2O709A

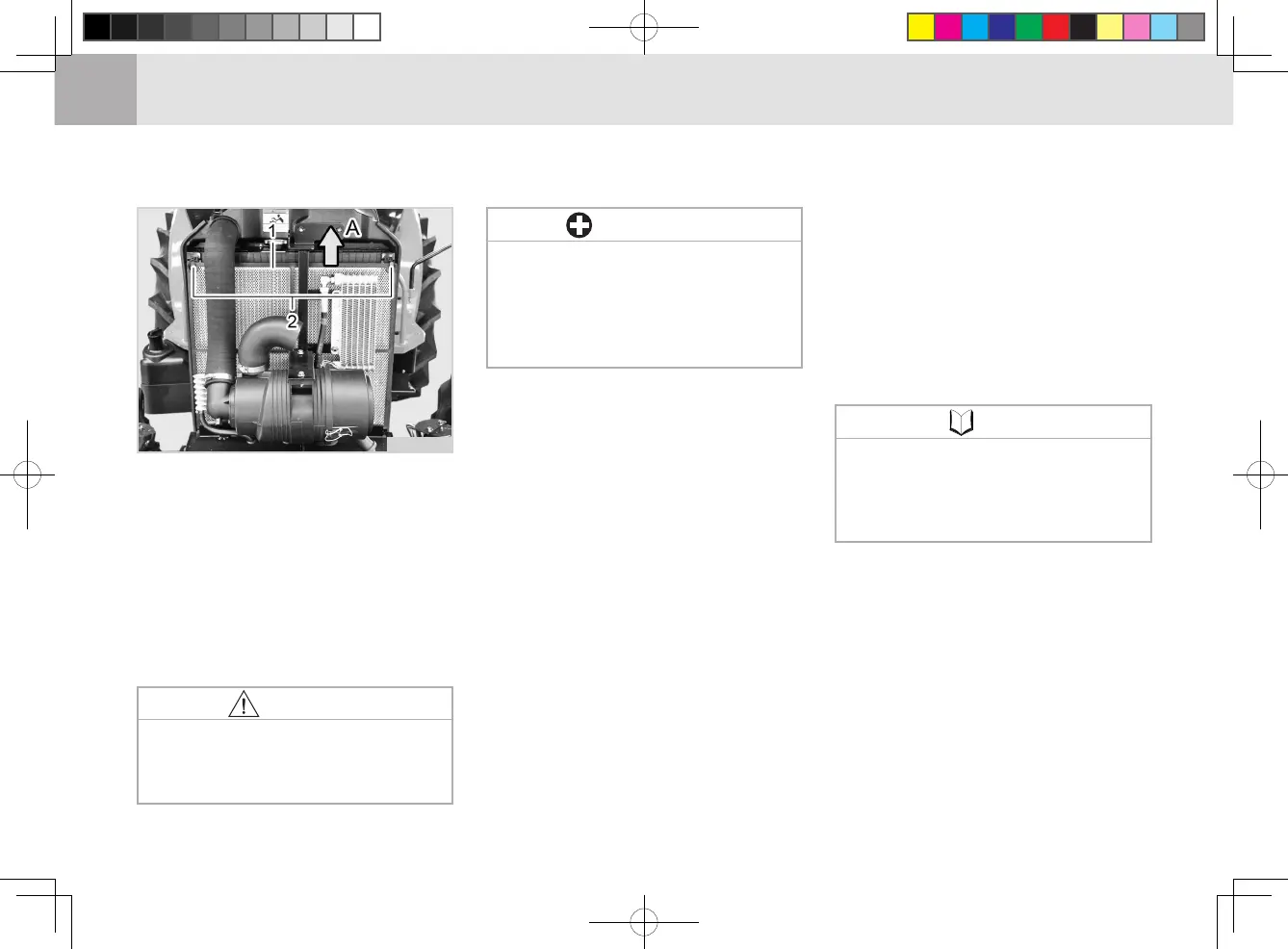

(1) Radiator Screen
(A) Detach (B) Hook
CLEANING GRILL, RADIATOR SCREEN
1. Check that the radiator grill and
screen are free of foreign materials.
2. If there are foreign materials stuck
in the screen, remove it from its
hooks and remove all foreign ma-
terials from it.
1. The brake and clutch pedals
should be inspected for free travel,
and smooth operation.
2. You should adjust these pedals
if an incorrect measurement is
found. (Refer to the instructions for
adjusting the clutch and brake ped-
als in the Chapter Maintenance.)
CHECKING BRAKE AND
CLUTCH PEDALS
IMPORTANT
• Bonnet grill and screen must
be clean from debris to prevent
engine from overheating and to
allow good air intake for the air
cleaner.
NOTE
• When depressing the brake ped-
als separated, both of the brake
pedals should be moved down to
the same depth.
CAUTION
To avoid accidents:
• Be sure to stop the engine be-
fore removing the screen.
