Daedong DK4520 - Adjusting Brake Pedal

8
-
20
DK4220/4520/4720/5020/5320/5520/6020
1
1
11
A
A
A
2
2
2
3
3
3

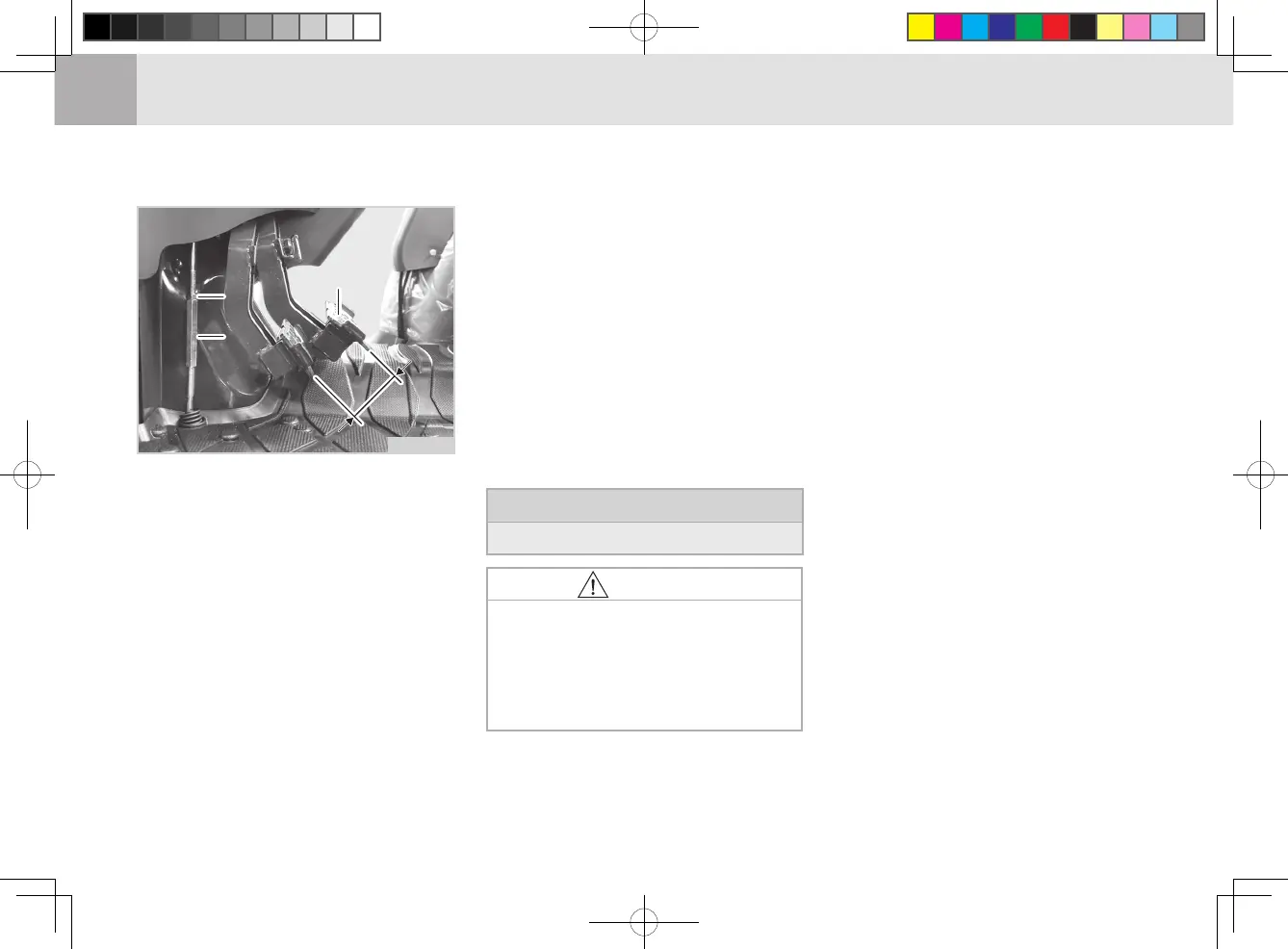

(1) Brake Pedal (2) Lock Nut
(3) Turn Buckle
(A) Free Play
ADJUSTING BRAKE PEDAL
Prolonged use of the brake pedal
increases its free play. This free play
deteriorates the brake performance
and can cause a problem to the
brake system.
The brake pedal can be adjusted as
follows:
1. Release the parking brake.
2. Depress the right brake pedal
slightly until some resistance is
felt. Then, measure the free play
from the top of the pedal.
3. When adjustments are needed,
loosen the locking nut and turn the
turn buckle until the rod length is
at the desired and acceptable limit.
4. After adjustment, tighten the lock-
ing nut rmly.
5. Repeat the same procedure for the
left brake pedal and measure its
free play.
6. Interlock the brake pedals after
checking or adjusting them.
Proper brake pedal free travel (A)
0.8~ 1.2 in. (20 ~ 30 mm)
D21O707A
CAUTION
• Stop the engine and chock the
wheels before checking brake
pedal.
• Keep the free play in the right
and left brake pedals equal.
