Daedong DK4520 - Cheking Engine Oil Filter; Adjusting Fan Belt Tension; Adjusting Clutch Pedal Free Play; Adjusting Brake Pedal Free Play

58
8
-
27
MAINTENANCE
1. See pages 8-17.
ADJUSTING FAN BELT TEN-
SION
1. See pages 8-21.
ADJUSTING CLUTCH PEDAL
FREE PLAY
1. See pages 8-21.
ADJUSTING BRAKE PEDAL
FREE PLAY
1. See pages 8-22.
CHEKING ENGINE OIL FIL-
TER
If the air cleaner is not in a good con-
dition, the lifetime of the engine can
be shortened, excessive soot can be
produced, and the engine power can
be deteriorated. Therefore, the lter
should be inspected frequently. Its
replacement interval can be changed
according to driving conditions. Re-
place the filter according to the fol-
lowing procedure:
1. Open the hood and check the suc-
tion hose and air cleaner housing for
damage.
EVERY 200 HOURS

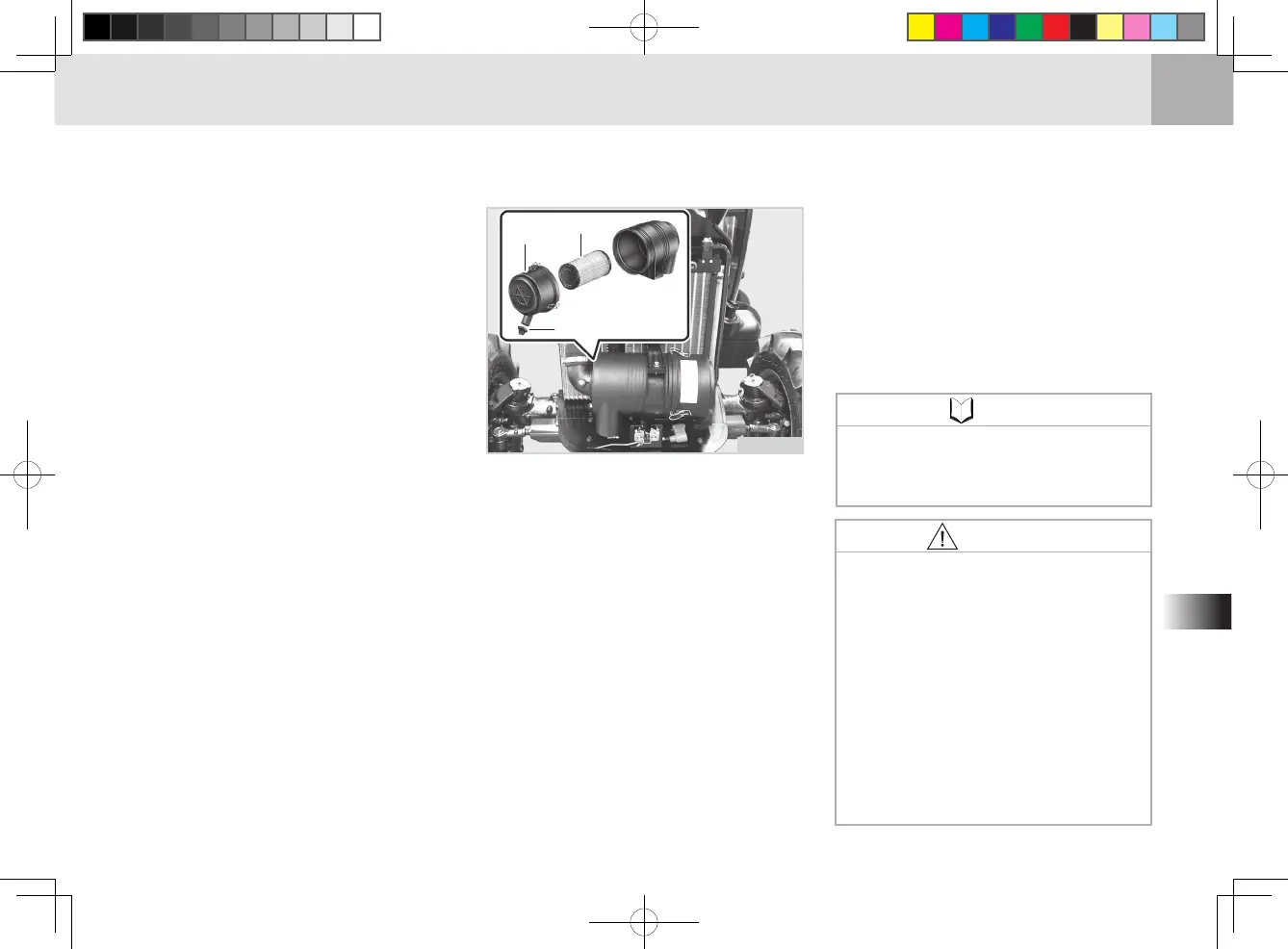

REPLACING AIR CLEANER FILTER
(1) Filter (2) Dust Cap
(3) Evacuator Valve
2. Unscrew the air cleaner clip and
remove the cover.
3. Clean the inside of the air cleaner
housing thoroughly.
4. Replace the filter and check the
housing for damage.
5. Install the cover and x it with the clip.
2
2
2
1
1
11
3
3
3
D21O709A
NOTE
• When installing the cover, make
sure that the dust collection valve
is heading down.
CAUTION
• Use only a KIOTI genuine lter.
If using a product other than
the genuine one, it can damage
the engine internal section and
sensor.
• Make sure that no dust enters
the system by installing the
cover rmly.
• When removing the lter, be
careful not to let foreign mate-
rial enter the air inlet.
