Daedong DK4520 - Service as Required; Draining Water from Clutch Housing; Checking and Replacing Wiper

8
-
38
DK4220/4520/4720/5020/5320/5520/6020

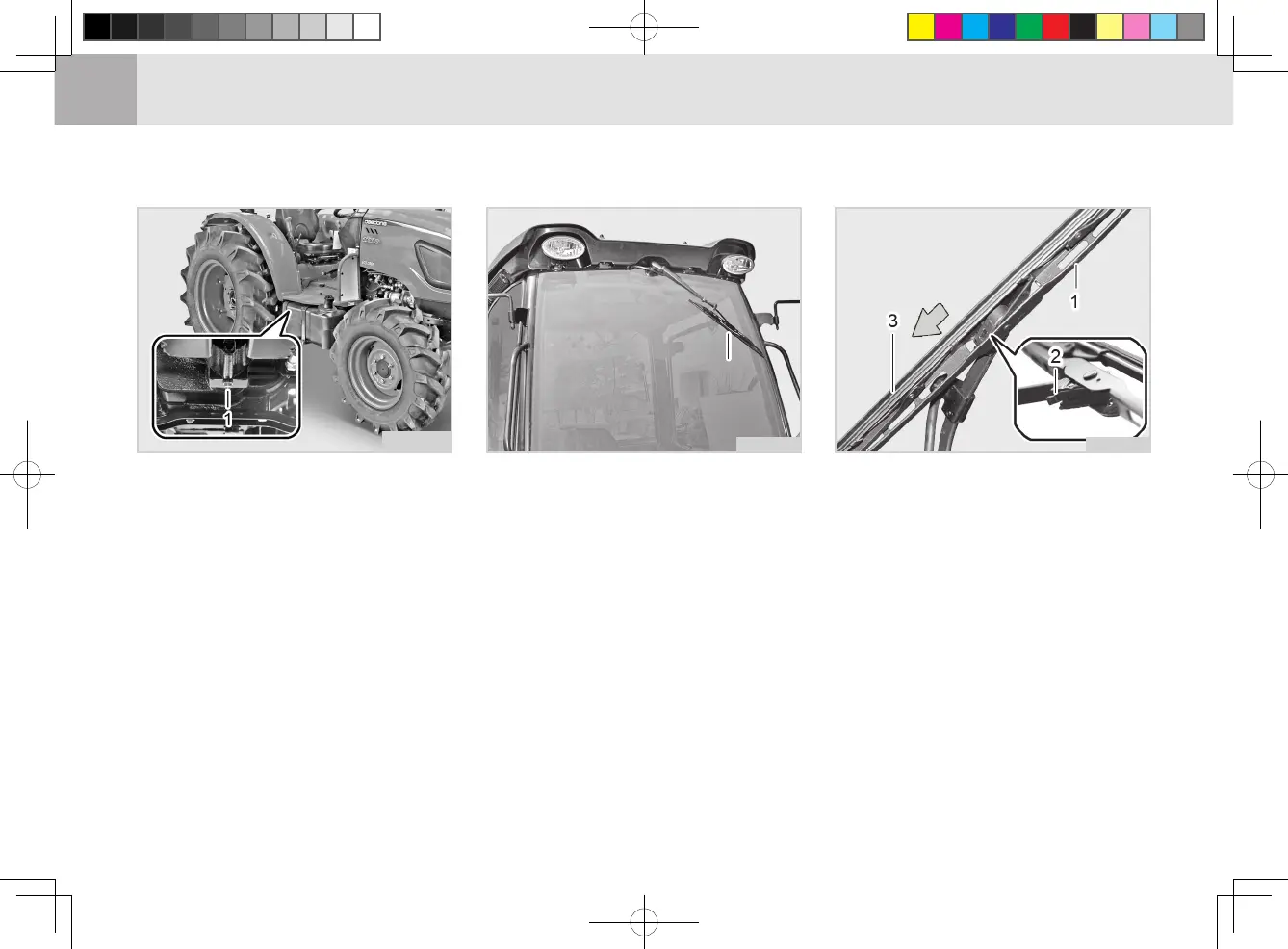

(1) Wiper
Check the operation and wear of the
wiper blades frequently. To replace the
wiper blade, press the wiper xing le-
ver to separate it and then pull it away.
To remove the wiper arm, lift the cap
of the wiper arm, remove the nut,
and set the wiper arm upright. Then,
hold the arm head and shake it left
and right to remove the wiper arm
from the drive spindle. Disconnect
the washer uid hose and then install
a new wiper arm to its position by
aligning it to the proper angle.
CHECKING AND REPLACING WIPER
INSPECTION
111
T21O460A
REPLACEMENT
(1) Wiper Arm (2) Wiper Fixing Lever
(3) Wiper Blade
H11O649A
1. Set the wiper upright to replace the
wiper blade.
2. Hold the blade with one hand and
press the blade fixing lever with
the other hand to separate the
blade from the xing part.
1. There is a plug under the clutch
housing.
2. Drain the water completely and
install the plug. Drain the water
into a container and dispose of it in
a proper manner for environment
protection.
TD2O734A
(1) Plug
SERVICE AS REQUIRED
DRAINING WATER FROM
CLUTCH HOUSING
