Daedong DK4520 - Error Indicator

4
-
24
DK4220/4520/4720/5020/5320/5520/6020
ERROR INDICATOR
CEL
N
CRUISE
PTO
LINKED
PEDAL
1
1
1
TC2O490B

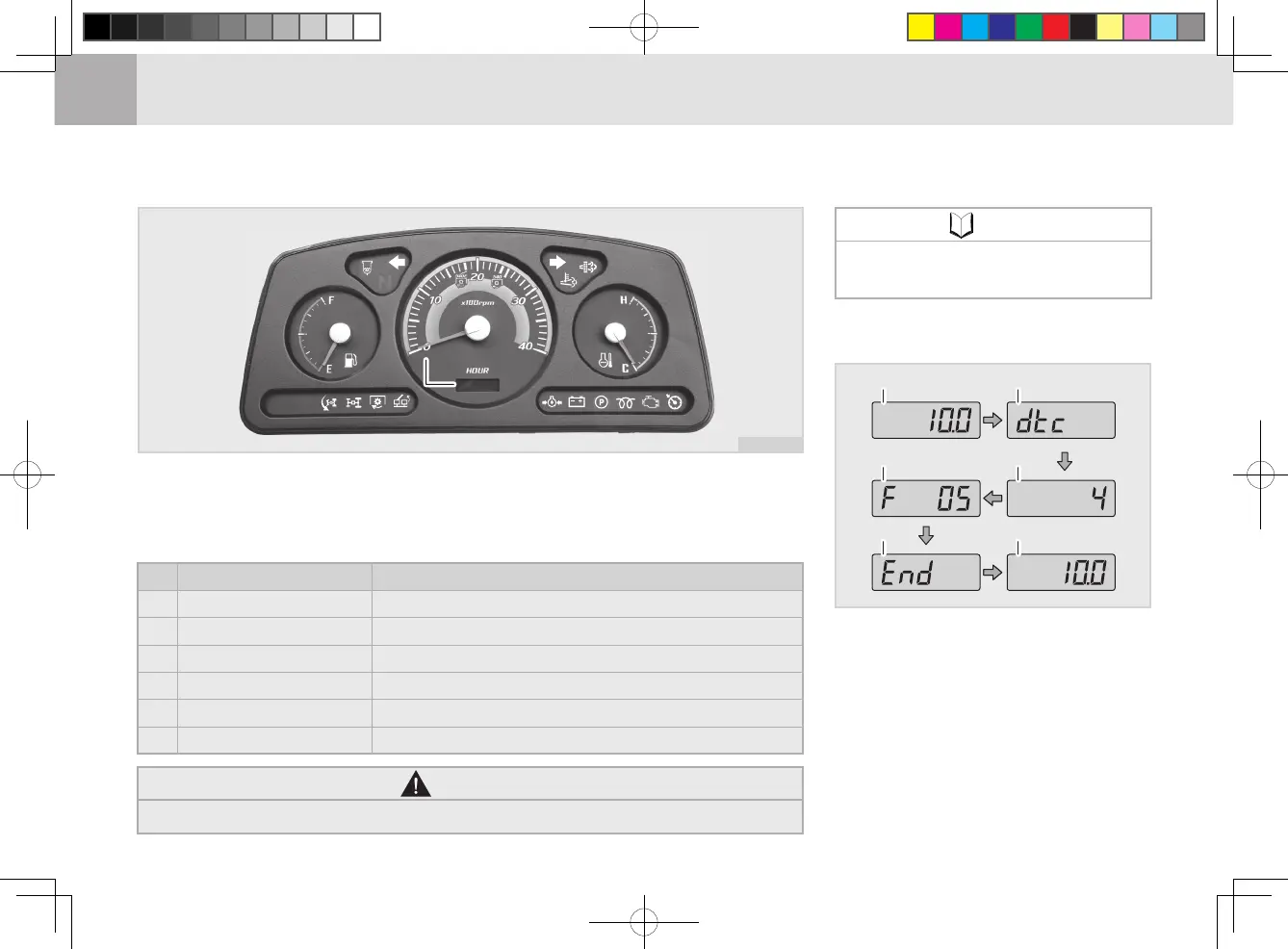

You can see the Error code below on the LCD window for Hour meter. When
You found these on the LCD, please contact with KIOTI dealer.
(1) Display
NO. DISPLAY DESCRIPTION
1 ERR-001 No Signal at TACHO Input
2 ERR-002 No Signal at Water Temp
3 ERR-006 No Signal at GLOW LAMP Input
4 ERR-007 No Signal at PTO CRUISE LAMP
5 ERR-008 No Signal at Water IN FUEL Input
6 ERR-009 No Signal at HOUR Input
ECU ERROR CODE
1
1
2
2
4
4
3
3
5
5
6
6
1 2
4 3
5 6
T22O475A
(1) Total run hours
(2) DTC (Diagnostic Trouble Code)
(3) SPN (Suspect Parameter Number)
(4) FMI (Failure Mode Indicator)
(5) End
(6) Total run hours
If an error code occurs on the en-
gine, the information of (1) to (6) is
displayed on the hourmeter of the
LCD window at an interval of 1 sec-
ond.
NOTE
• Some error codes may not dis-
played depending on the model.
WARNING
• If some error codes read, contact to local KIOTI dealer.
