Daedong DK4520 - Replacing Bulb

8
-
44
DK4220/4520/4720/5020/5320/5520/6020
Slow-blow fuse
60A
The bulbs and their capacity used
in this tractor are listed in the below
table. This section only describes
procedures the users can handle.
REPLACING BULB
Sequence Bulb Capacity
1
Headlamp LED
2 Position lamp (Front) 5W
3 Stop/Position lamp (Rear) 21W/5W
4 Turn signal lamp 21W
5 Work lamp 21W
6
Instrument
cluster
Indicator
Charging
warning
light
3W
Others 1.4W
7 Backup lamp 10W
The slow-blow fuse is to protect
electric devices and wirings. If the ig-
nition, preheat, charge or main func-
tion is faulty, nd and move its cause
and replace the fuse with a new one.
HEADLAMP

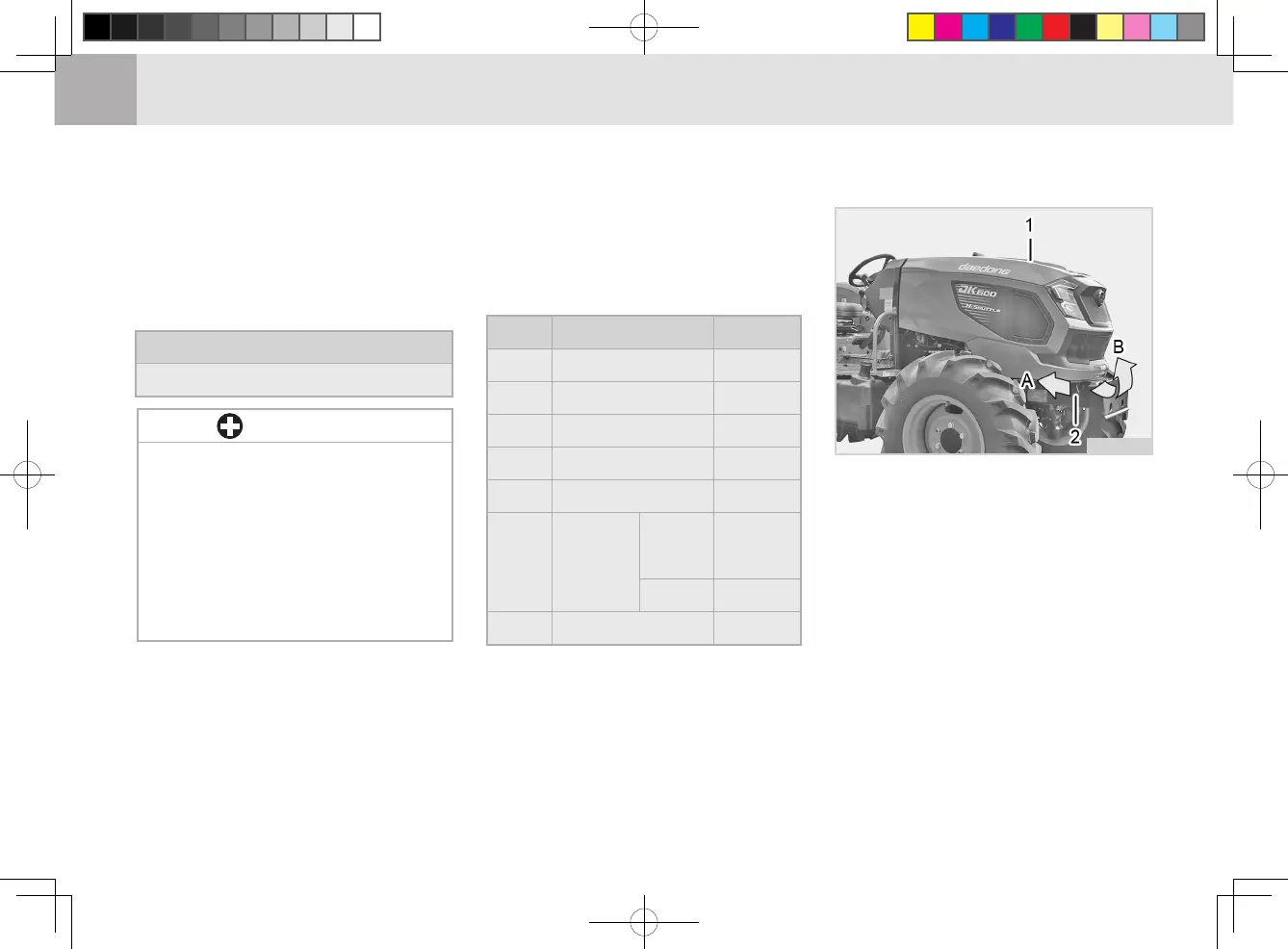

1. Turn the key switch to the “OFF”
position and open the hood.
(1) Hood (2) Opening Knob
(A) Pull (B) Open
D22O701A
IMPORTANT
• Using a non-approved slowblow
fuse can damage electrical sys-
tems in the tractor severely.
• Refer to the chapter “Trouble-
shooting” in this manual or
contact your local KIOTI Dealer
for specic information dealing
with electrical problems.
