Daedong DK4520 - 3-Point Hitch Control Position Control

5
-
20
DK4220/4520/4720/5020/5320/5520/6020
The 3-point hitch can be controlled by
the position control lever.
1. The position control lever is used
to lift or lower the lifting arm (lower
link) of the 3-point hitch.
2. Pushing the lever forward lowers
the lower link while pulling the le-
ver backward lifts the lower link.
3. The height of the lower link is pre-
cisely controlled proportional to the
position of the lever.

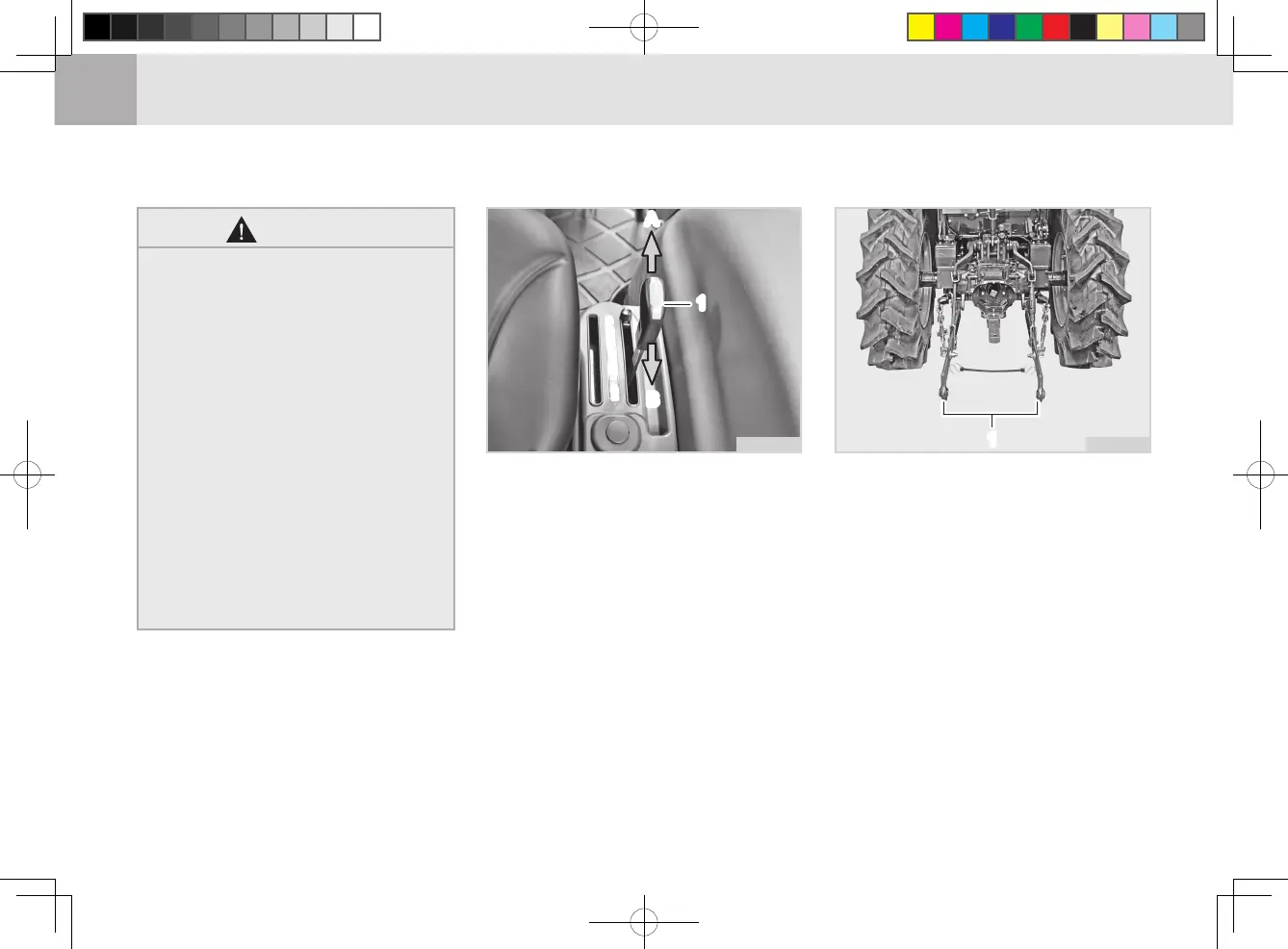

(1) Position Control Lever
(A) Lowering (B) Lifting
111
AA
BB
D21O516A
3-POINT HITCH CONTROL POSITION CONTROL
(1) Lower Link
11
D21O517A
4. The lower link is lifted by the hy-
draulic energy of the tractor while it
is lowered by potential energy of its
own weight. Therefore, the imple-
ment cannot be lowered by the hy-
draulic pressure.
5. Therefore, the implement attached
to the lower link may be lifted by
protrusion on the ground when it is
lowered to the ground. It is called
as "oating."
WARNING
• If stopping the engine while
driving, the steering perfor-
mance can become deteriorated
due to loss of hydraulic power,
resulting in a severe accident.
Never stop the engine while
driving.
• Keep your hands on the steer-
ing wheel after turning to return
the steering wheel back to the
straight-ahead position. This
steering wheel is not a self-re-
turn type. Taking your hands
o󰀨 the steering wheel during
driving can lead to a serious
accident.
