Daedong DK4520 - Checking Intake Air Line; Adjusting Toe-In; Replacing Transmission Fluid Filter

58
8
-
29
MAINTENANCE

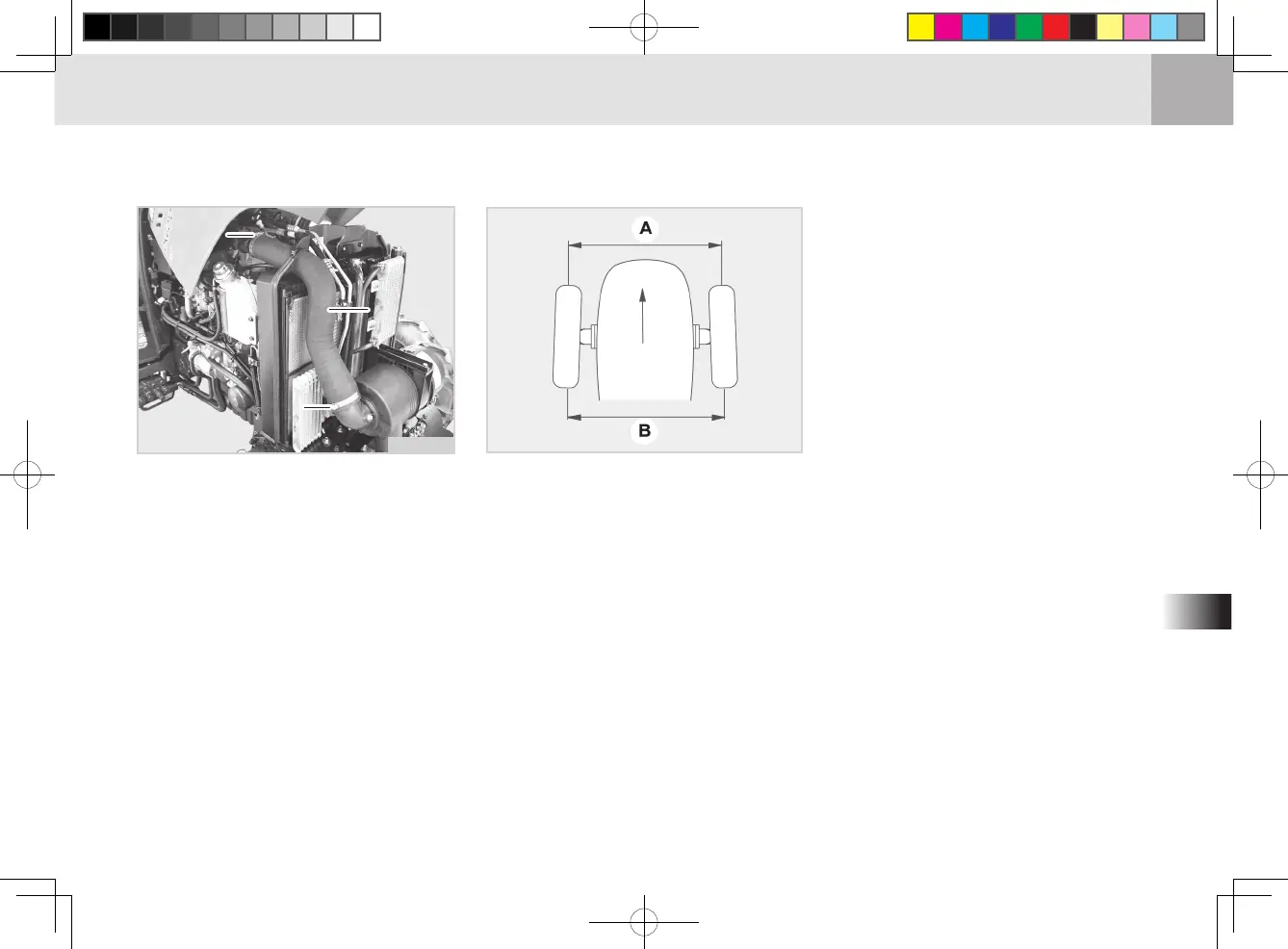

(1) Air Line Hose (2) Clamp
1. If the hose clamps are loose, tight-
en clamps securely.
2. If the hoses and clamps are dam-
aged, you must replace them at
once. Failure to do so could lead
to engine damage.
CHECKING INTAKE AIR LINE
1
1
11
2
2
2
2
2
2
D21O711A
T46OA36A
(A) Wheel - To - Wheel Distance At Front
(B) Wheel - To - Wheel Distance At Rear
1. Park tractor on a at surface.
2. Turn steering wheel so front wheels
are pointed straight ahead.
3. Lower the implement, lock the
parking brake and stop the engine.
4. Measure distance between tire
beads (Center) at front of tire and
hub height.
5. Measure distance between tire
beads at back of tire and hub height.
ADJUSTING TOE-IN
ADJUSTING PROCEDURE
6. Front distance should be 2 ~ 8 mm
(0.079 ~ 0.315 in.) less than rear
distance. If not, adjust the length
of the tie rod joint.
1. See pages 8-19.
REPLACING TRANSMISSION
FLUID FILTER
