DK4220/4520/4720/5020/5320/5520/6020
DRAWBAR AND TRAILER
The draw bar is used to pull an im-
plement, such as a trailer.
Make sure to check the max. towing
weight of the trailer and max. vertical
load that can be applied to the draw
bar.
The specication and type of the draw-
bar are di󰀨erent according to the each
countries.

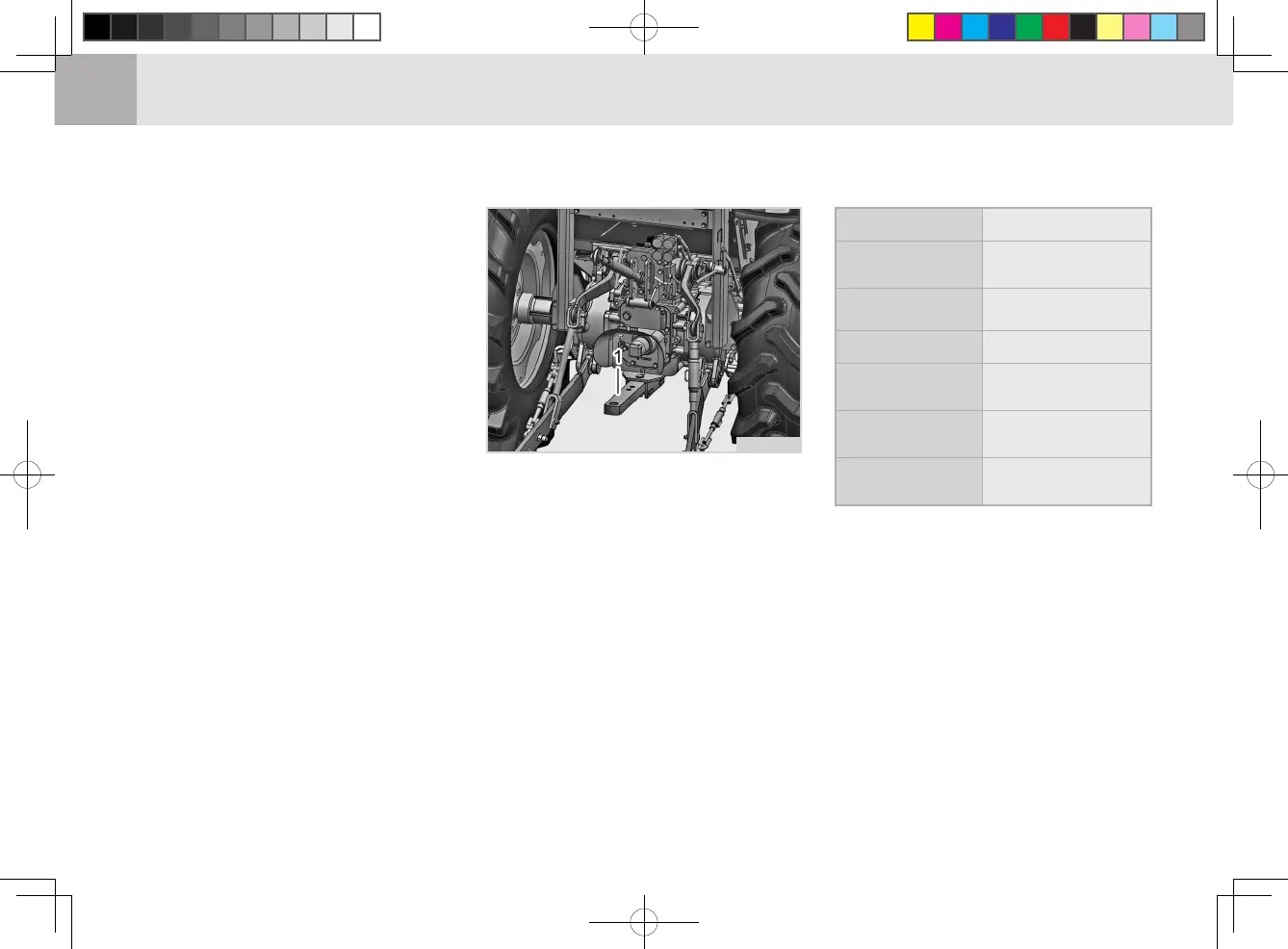

(1) Draw Bar
DISMOUNTING THE IMPLEMENT
1. Park the tractor with the implement
on the level ground and lower the
implement all the way down. Install
the implement support as needed.
2. Disconnect the top link and lower
links from the implement by re-
moving the pins.
3. Be sure to insert the set pins, lynch
pins and snap pins back to the im-
plement securely to keep those safe.
4. Stop the engine and move the re-
mote hydraulic control lever back
and forth to release the hydraulic
pressure in the system before dis-
connecting hydraulic couplers.
5. Put the top link back to its hook.
Hold both lower links together with
a rubber band. Otherwise, the low-
er links can contact with rear tires
and cause damage to the lower
links and tires while driving.
TD2O634ATD2O636A
Type Tractor drawbar
Approval
number
e11*89/173*2000
/1*2002*00
Maker
Daedong Industial
Co.,Ltd
Towable mass 4,300 kg
Unbraked
towable mass
3,000 kg
Independently
braked towable mass
3,300 kg
Vertical load on
the coupling point
735 daN
