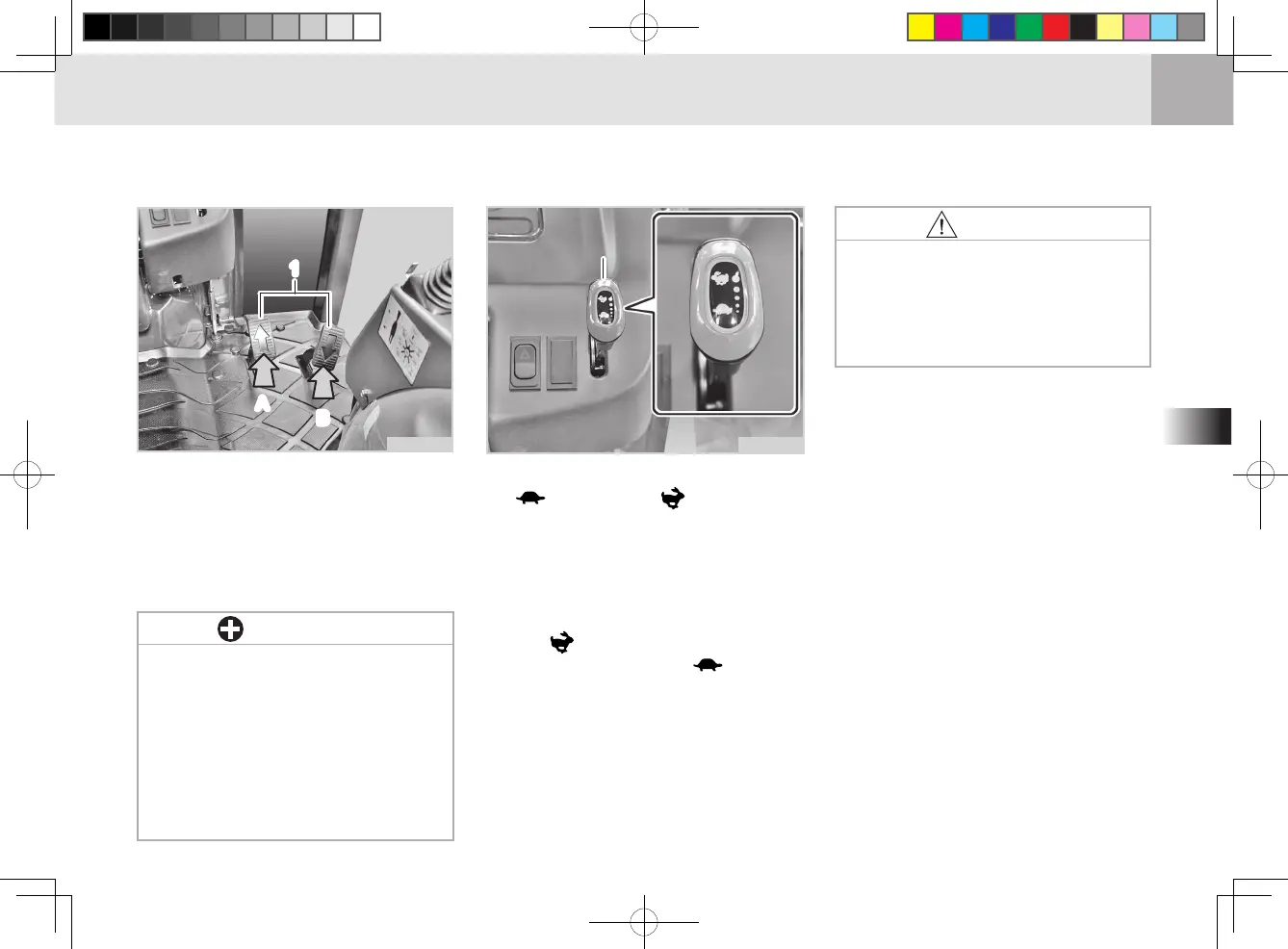

FUNCTION DESCRIPTION AND OPERATING TIPS
(1) Forward / Reverse Driving Pedals
(A) Forward (B) Reverse
1111
A
B
A
B
D21O445A
FORWARD / REVERSE DRIVING
PEDALS
Depressing the left pedal selects the
forward driving while depressing the
right pedal selects the reverse driving.
IMPORTANT
• “Unlike a gas pedal, these HST
pedals act like a main speed
shift in a mechanical tractor”.
Therefore, depress them deeper
to obtain higher speed with low-
er torque and release them to
obtain lower speed with higher
torque.
HAND THROTTLE LEVER
The hand throttle lever is to control
the engine rpm.
The engine accelerates to its full
speed by pulling the hand throttle
lever ( Position) completely out
while pushing the lever ( Position)
decelerates the engine.
The hand throttle lever is mainly
used while working on a eld.
(1) Hand Throttle Lever
: Slow : Fast
1
1
1
D21O414A
CAUTION
• Do not use the hand throttle
lever while driving on the public
road. Otherwise it can lead to an
accident as it becomes hard to
decelerate the tractor rapidly.
