Daedong DK4520 - Checking Wheel Bolt;Nut Torque; Every 100 Hours; Cleaning and Replacing Air Cleaner Filter

8
-
22
DK4220/4520/4720/5020/5320/5520/6020
Item Tightening torque
Front
wheel
Bolt
225 N·m
166 lbf·ft
20~23 kgf·m
Nut
Rear
wheel
Bolt
Nut

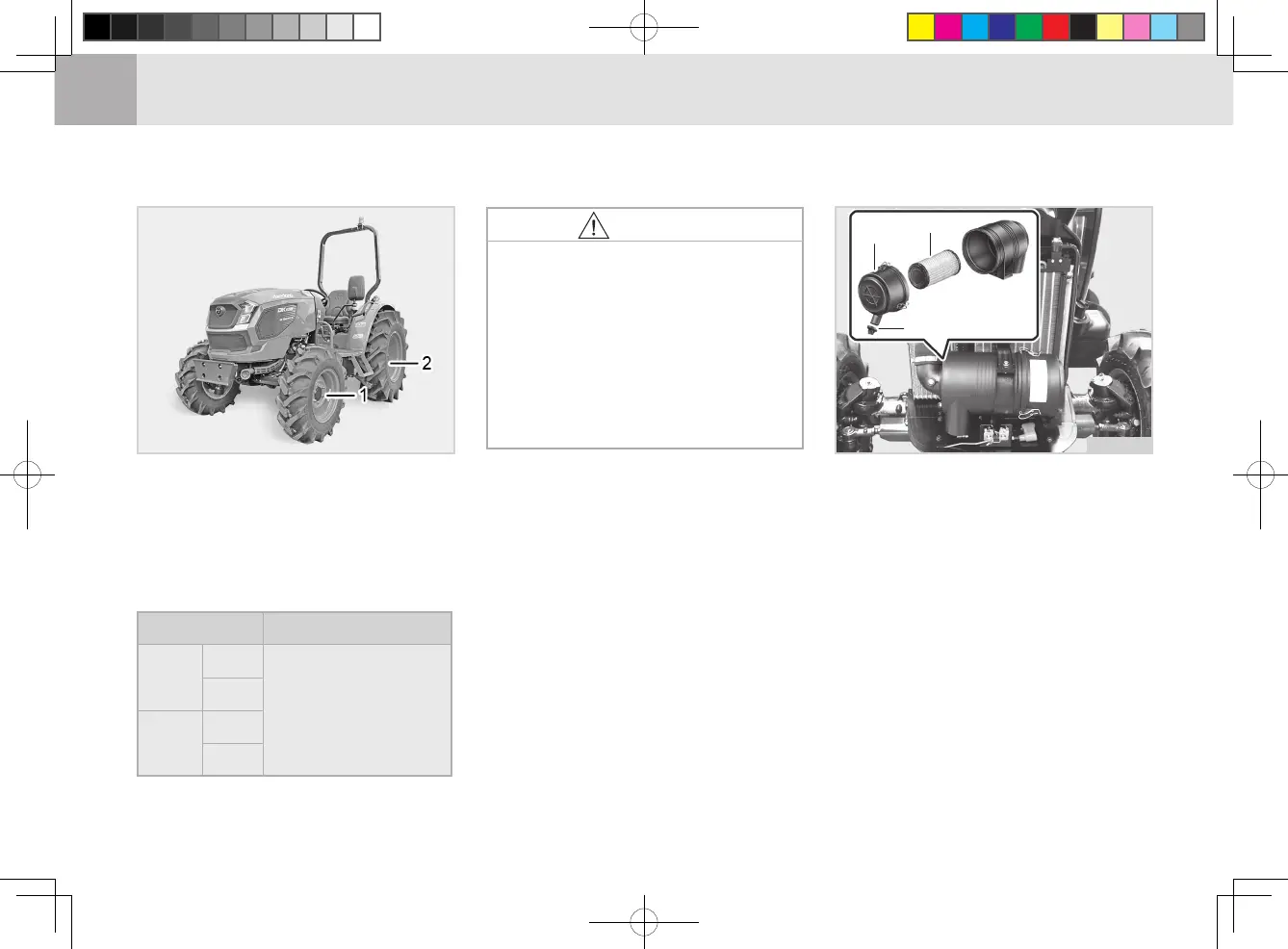

CHECKING WHEEL BOLT/NUT TORQUE
(1) Front Wheel Bolt/nut
(2) Rear Wheel Bolt/nut
Check wheel bolts and nuts regu-
larly especially when new. If they are
loose, tighten them as follows.
D22O708A
(1) Filter (2) Dust Cap
(3) Evacuator Valve
1. The air cleaner uses a dry ele-
ment. Never apply oil.
2. Make sure that dust is not accu-
mulated over the half of the dust
cap. Remove the dust cap, wipe
out any dust and clean the filter
every week. If the tractor is oper-
ated in extremely dusty conditions,
daily inspection is required.
3. Do not service the filter unless it
should be cleaned.
EVERY 100 HOURS
CLEANING AND REPLACING
AIR CLEANER FILTER
2
2
2
1
1
11
3
3
3
D21O709A
CAUTION
To avoid injury:
• Never operate tractor with a
loose rim, wheel, or axle.
• Any time bolts and nuts are
loosened, retighten to specied
torque.
• Check all bolts and nuts fre-
quently and keep them tight.
