DK4220/4520/4720/5020/5320/5520/6020
COMBINATION SWITCH

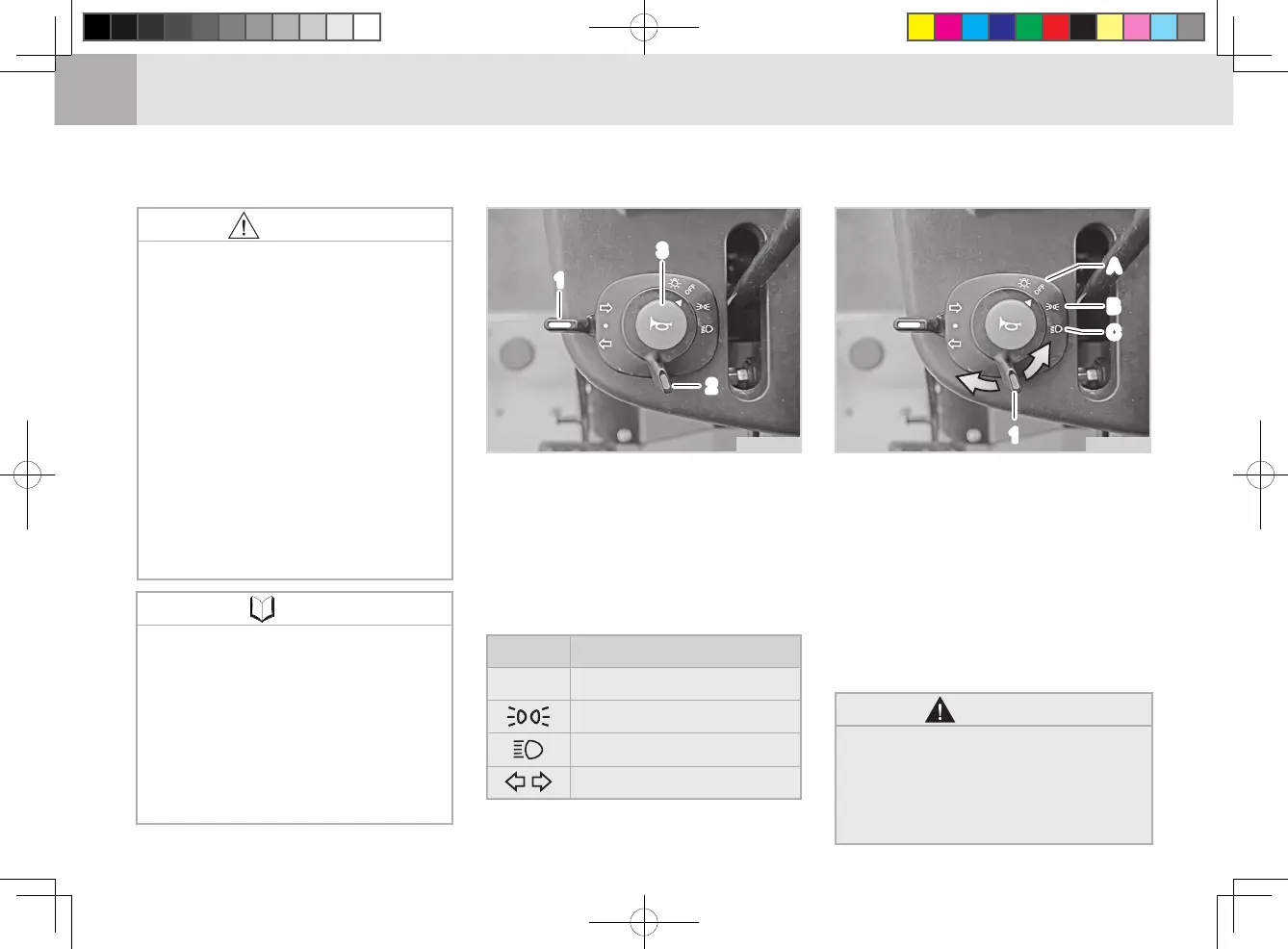

The combination switch consists of
the head light, turn signal light, and
horn switches. Its function by its po-
sition is as follows:
HEAD LIGHT SWITCH
The head light switch can be oper-
ated only while the key switch is in
“ON ” position. Turning the head light
switch clockwise one click will illumi-
nate the low beam head lights while
turning it one more click will illumi-
nate the high beam head lights.
Switches Functions
OFF Headlamp and tail light OFF
Low beam and tail light ON
High beam and tail light ON
Turn signal lamp ON
3
1
2
3
1
2
TD2O405S
A
B
C
11
A
B
C
TD2O406S
(1) Turn Signal Lamp Switch
(2) Head Light Switch (3) Horn Switch
(1) Head Light Switch
(A) OFF (B) Low Beam ON
(C) High Beam ON
NOTE
• The ignition key is not directional
and can be inserted in any direc-
tion. Also, be careful not to leave
the tractor unattended with the key
in the tractor.
• The horn, turn signal lamp and
hazard lamp can be operated
without the key inserted.
WARNING
• Driving with high beam head
light disturbs the approaching
vehicle’s visibility for safe driv-
ing. Use the high beam head
lights only if necessary.
CAUTION
• Stop the engine immediately if
the oil pressure warning lamp
does not go o󰀨 after the engine
is started. The engine may be
severely damaged.
• If the battery charge warning
lamp does not go o󰀨 after the
engine is started, check the
electrical systems, such as the
alternator, for damage. Con-
tinuing to use the engine under
this condition can discharge
the battery or damage other
electrical devices.
