Daedong DK4520 - Checking Engine Oil Level

8
-
14
DK4220/4520/4720/5020/5320/5520/6020
1. Check the engine oil daily.
2. Park the tractor on a level ground
and lower the implement.
3. If the engine was just running,
wait for approx. 5 minutes before
checking the oil level.

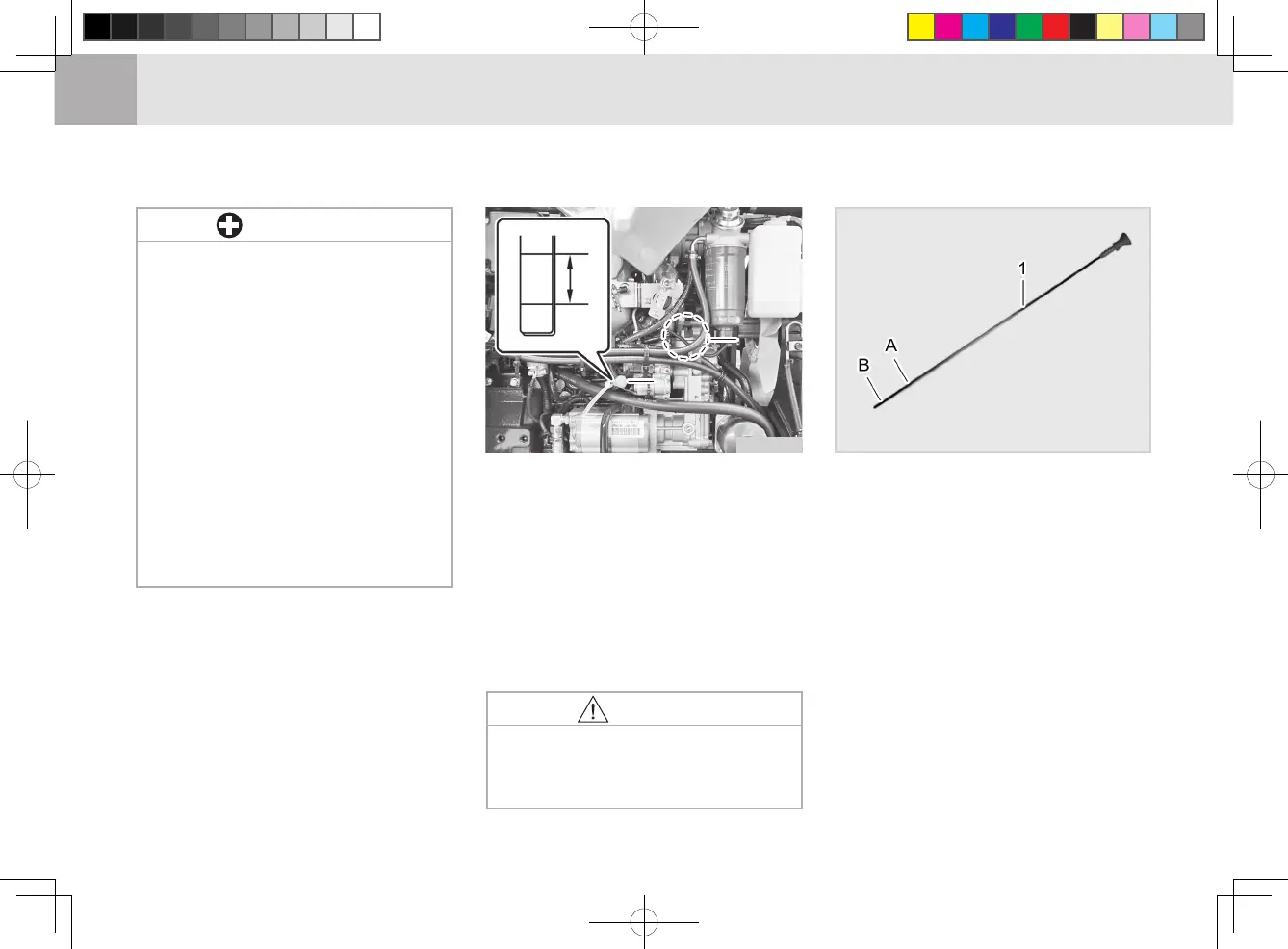

(1) Oil Filler Neck (2) Oil Dipstick
(A) Oil Level Is Acceptable Within This Range
TD2O707A
CHECKING ENGINE OIL LEVEL
4. Pull out the oil dipstick, clean it,
and then insert it into its original
position. Then, pull it out again and
check if the oil level is within the
specied range.
5. If the oil level is too low, add new
oil so that the level is within the al-
lowable range.
(1) Oil Dipstick
(A) Upper Limit (B) Lower Limit
1
1
11
A
2
2
2
D21O704A
IMPORTANT
• If oil level is low, do not run
engine.
• Never add the oil over the upper
limit.
• Be sure to check the oil level
after installing hydraulic imple-
ment. Add the uid as needed.
• Check the oil level with the
cylinders of an implement ex-
tended and check again with
cylinders retracted. Add the oil
to adjust average oil level in the
range of the oil limit. (Upper or
lower)
CAUTION
To avoid injury:
• Be sure to stop the engine be-
fore checking the oil level.
