Daedong DK4520 - Position Control Lever; Lifting Arm (Lower Link) Speed Control Knob

4
4
-
35
FUNCTION DESCRIPTION AND OPERATING TIPS

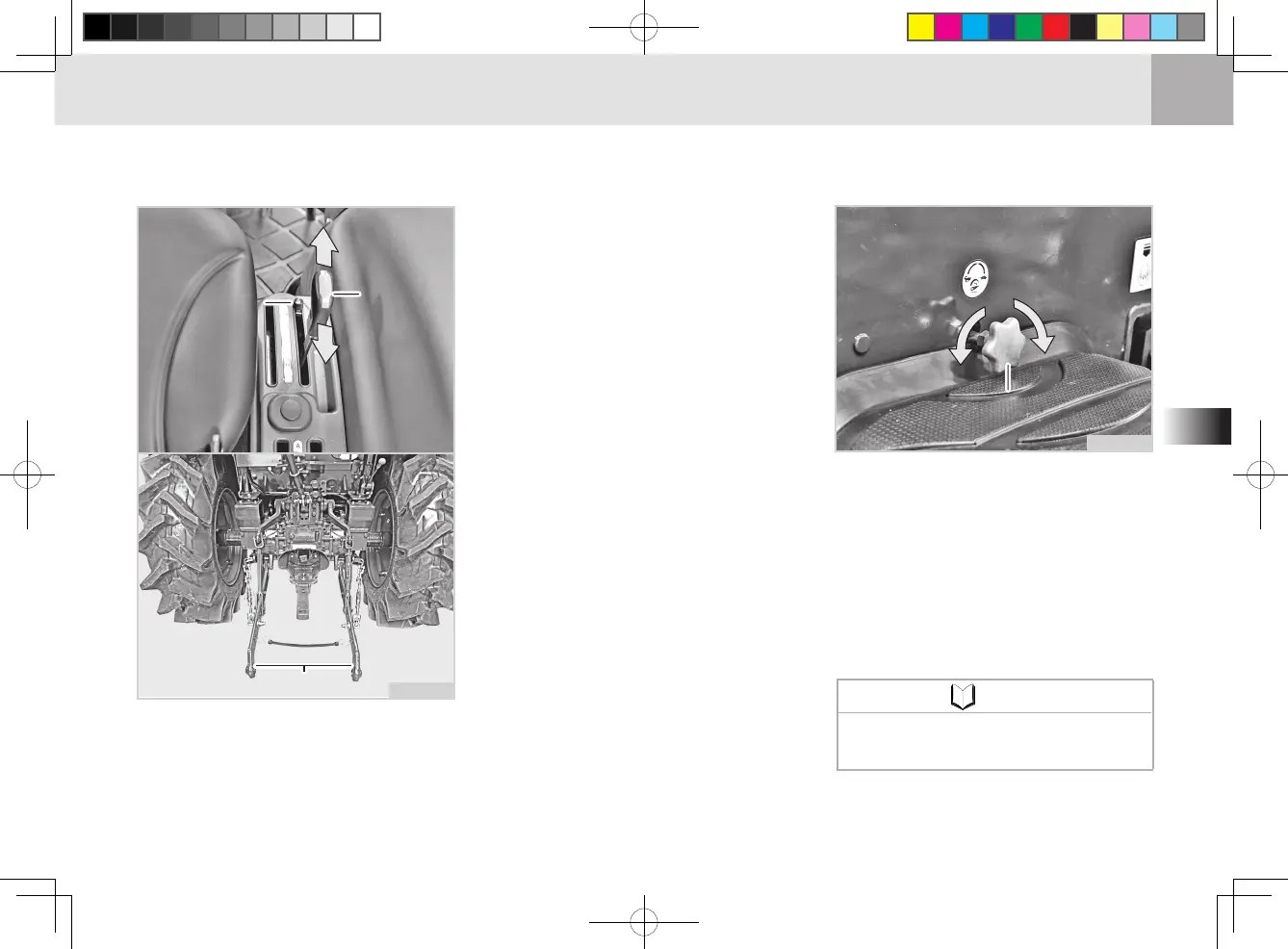

POSITION CONTROL LEVER
(1) Position Control Lever (2) Lock Bolt
(3) Lower Link
(A) Lowering (B) Lifting
1
1
1
2
2
2
A
A
A
B
B
B
333
D21O421A
The position control lever is used to
adjust the height of implements on
the 3-point hitch ends.
The implement attached to the lifting
arm can be lowered by pushing the
lever while the implement is raised
by pulling the lever.
In order to limit the lowering height of
implements, use the lock bolt (2) to
limit the operating range of the lever.
For detailed information, refer to “How
to drive” in Chapter 5.
Turning the knob counterclockwise
increases the lowering speed while
turning it clockwise decreases the
lowering speed. Also, turning it clock-
wise to its end can x the implement
to a certain position.
(1) Lowering Speed Control Knob
(A) High Speed (B) Low Speed
LIFTING ARM (LOWER LINK)
SPEED CONTROL KNOB
111
A
AA
B
BB
D21O422A
NOTE
• This knob does not control the
lifting speed of the lift arm.
