FUNCTION DESCRIPTION AND OPERATING TIPS
The turn signal lights are used when
turning the vehicle left or right. Pull-
ing the lever up blinks the right turn
signal light while pushing the lever
down blinks the left turn signal light.
TURN SIGNAL LIGHT SWITCH
The horn switch can be operated
without the key inserted. Pressing
this switch sounds the horn.
This switch can be used to warn
other vehicles when malfunction oc-
curs in the tractor while driving on a
public road. Pressing this switch up
blinks the hazard lamp and returning
it turns o󰀨 the lamp. The turn signal
lights cannot be operated while this
switch is pressed up to operate the
hazard lamps.
HAZARD LAMP SWITCH
HORN SWITCH
A
B
11
A
B

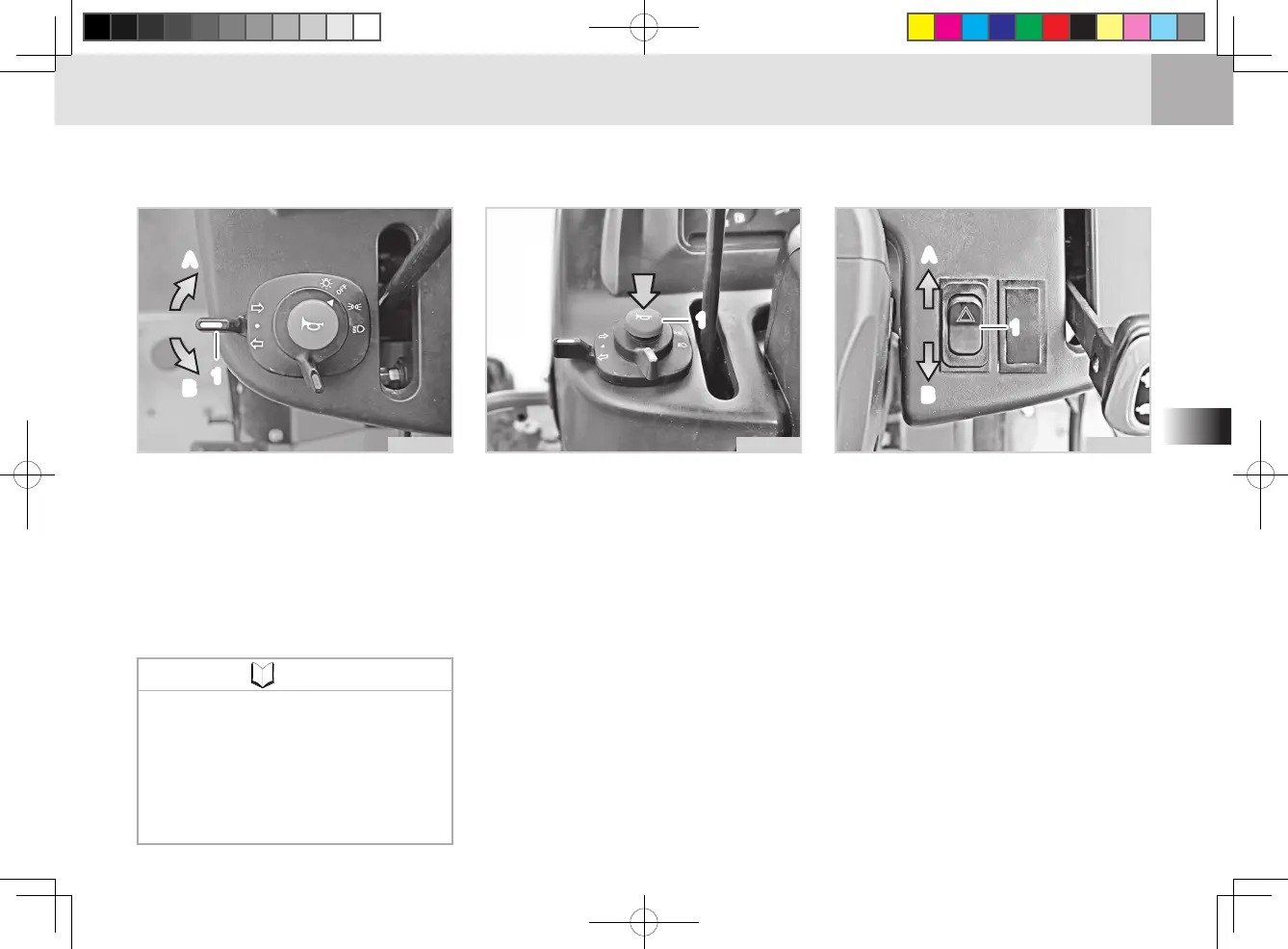

TD2O407S
(1) Turn Signal Light Switch
(A) Right Turn (B) Left Turn
11
TD2O408S
1
A
B
1
A
B
TD2O409S
(1) Horn Switch (1) Hazard Warning Flasher Switch
(A) ON (B) OFF
NOTE
• The turn signal light lever is not the
self-return type. Therefore, make
sure to return the lever manually
after turning the vehicle.
• The turn signal lamps can be oper-
ated without the key inserted.
