Daedong DK4520 - General Specifications; External Dimensions

DK4220/4520/4720/5020/5320/5520/6020
3
-
2
GENERAL SPECIFICATIONS

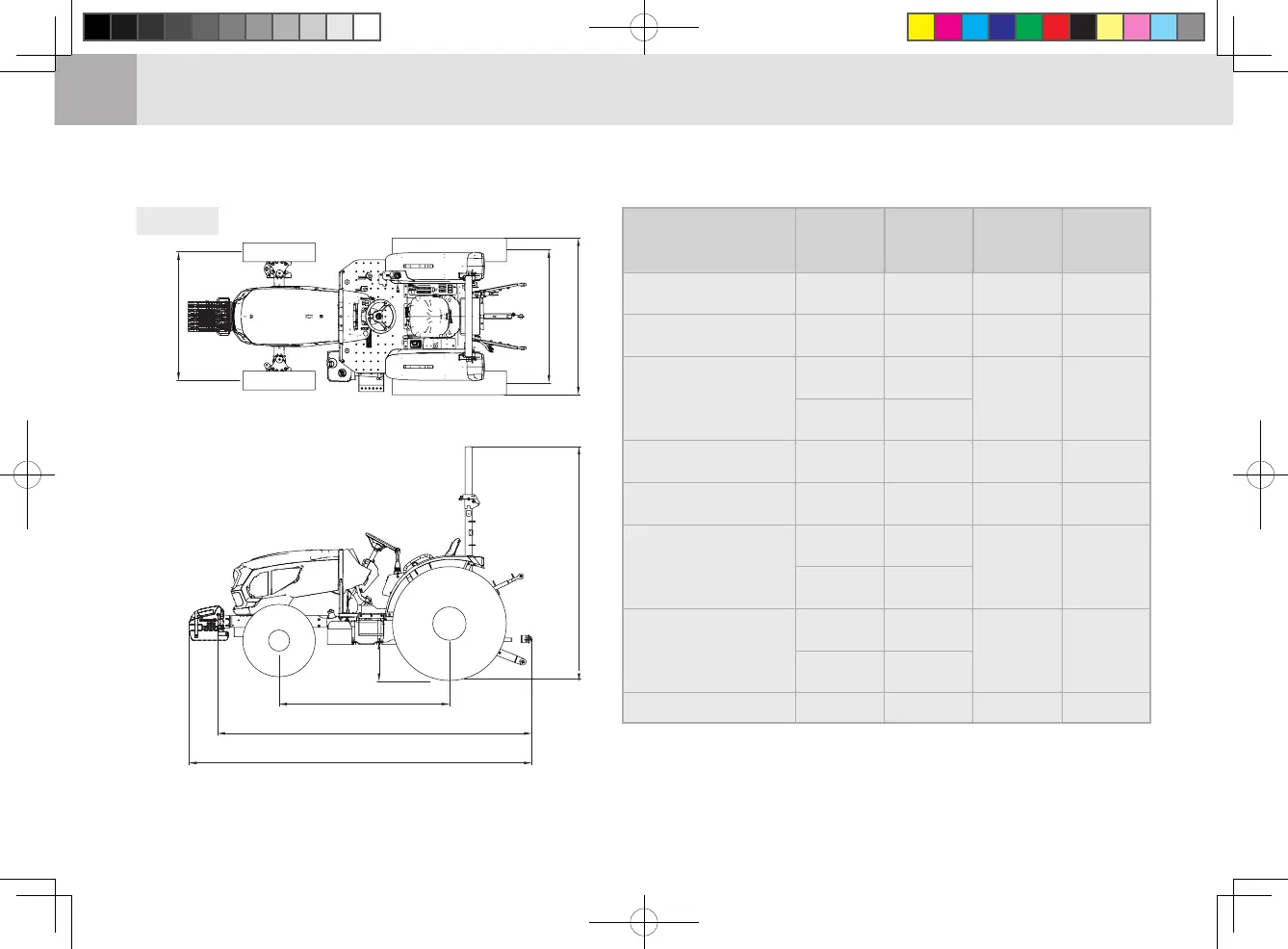

EXTERNAL DIMENSIONS
※
These dimensions are measured with the standard tires
(AG) installed to the ROPS model tractor.
E2
B
E1
A1
A2
D
C
F
D22O301A
※
A1: Overall length including weight and folded ROPS
A2:
Overall length excluding weight and folded ROPS
E1: Front wheel tread E2: Rear wheel tread
ITEM
DK4520
DK5020
DK5520
DK4220HSE
DK4720HSE
DK5320HSE
DK6020HSE
1. Overall length (A1)
130.2
(3,307)
130.7
(3,320)
130.2
(3,307)
130.7
(3,320)
2. Overall length (A2)
124.3
(3,157)
124.8
(3,170)
125.5
(3,189)
126.0
(3,202)
3. Overall width (B)
62.8
(1,596)
62.8
(1,596)
62.8
(1,596)
62.8
(1,596)
58.5
(1,486)(*)
58.5
(1,486)(*)
4. Overall height (C)
92.0
(2,338)
92.0
(2,338)
96.8
(2,458)
96.8
(2,458)
5. Wheel base (D)
71.3
(1,810)
71.3
(1,810)
71.3
(1,810)
71.3
(1,810)
6. Tread (E1)
49.4
(1,254)
49.4
(1,254)
49.4
(1,254)
49.4
(1,254)
44.6
(1,133)(*)
44.6
(1,133)(*)
7. Tread (E2)
49.2
(1,251)
49.2
(1,251)
49.2
(1,251)
49.2
(1,251)
44.9
(1,141)(*)
44.9
(1,141)(*)
8. Ground clearance (F) 14.5 (368) 14.5 (368) 14.5 (368) 14.5 (368)
in.(mm)(*)-Narrow type
