FUNCTION DESCRIPTION AND OPERATING TIPS

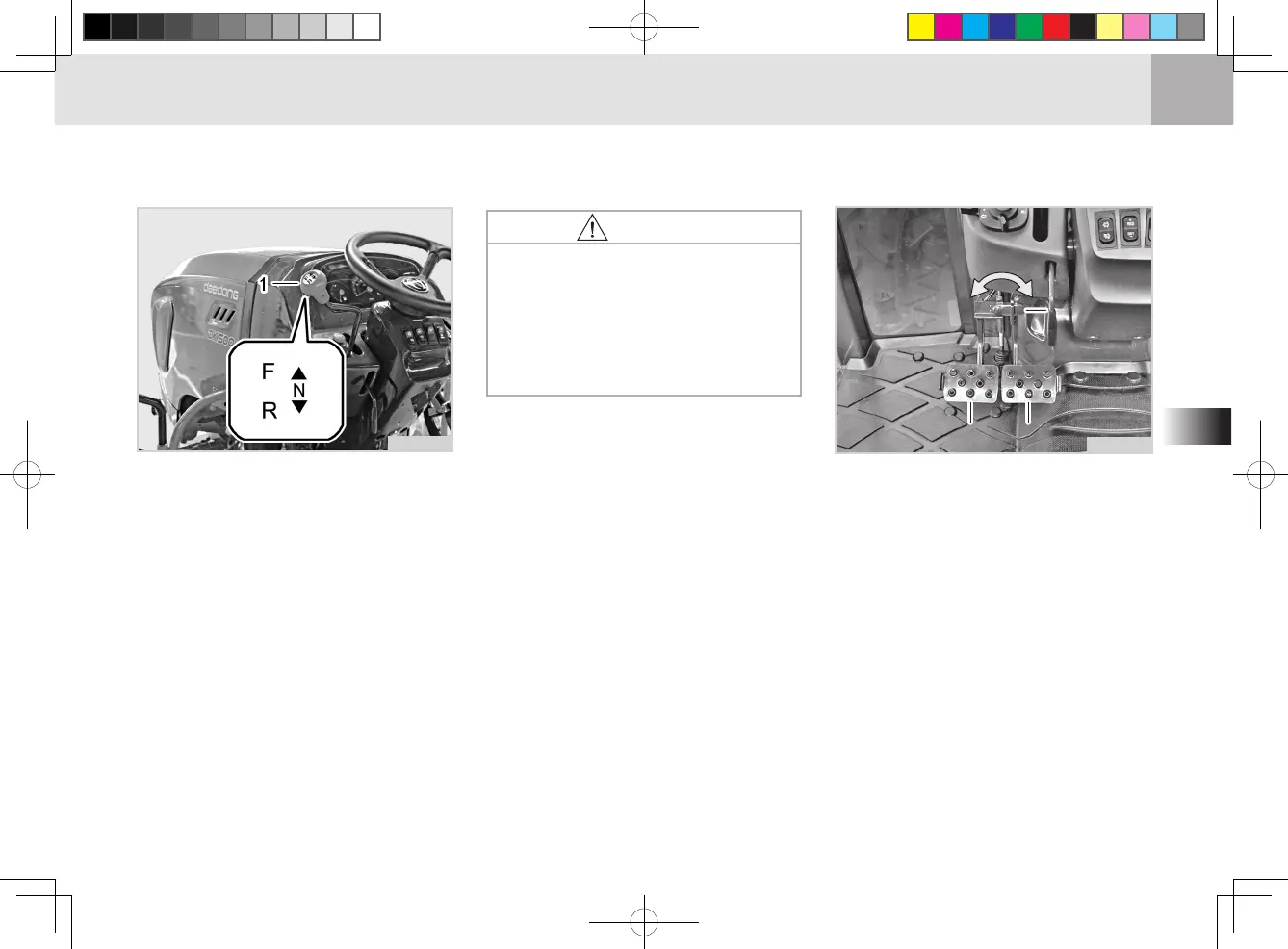

SHUTTLE SHIFT LEVER
(1) Shuttle Shift Lever
F: Forward Driving R: Reverse Driving
N: Neutral
"This lever is to select the forward
and reverse driving direction. As the
gear is a synchromesh type, shift
operation is possible with the clutch
pedal depressed. Put this lever into
the neutral position when the tractor
is not driven.
For the hydraulic shuttle model
(H-Shuttle), shift operation is possible
with the clutch pedal released during
driving at a low speed. Avoid shifting
during driving at a high speed."
TD2O440A
CAUTION
• Make sure to operate the shut-
tle shift lever only while the ve-
hicle is stationary. Otherwise,
the vehicle may turn abruptly,
resulting in a personal injury
and transmission damage.
(1) Brake pedal (LH) (2) Brake pedal (RH)
(3) Pedal Interlock latch
(A) Engage (B) Disengage
BRAKE PEDAL
1. Make sure to latch the left right
brake pedals as shown in the gure
while driving on a road. The tractor
can roll over if depressing only one
brake pedal at a high speed.
2. To make a sharp turn in a work
field, disengage the left and right
brake pedals to use one of brake
pedals separately. Unlock the
brake lock, and then turn the steer-
ing wheel while depressing the
brake pedal on the turning side.
1
1
1 2
2
2
3
3
3
A
A
AB
B
B
D21O412A
