Daedong DK4520 - Tachometer;Hourmeter; Pto Speed Mark; Fuel Gauge

4
4
-
15
FUNCTION DESCRIPTION AND OPERATING TIPS

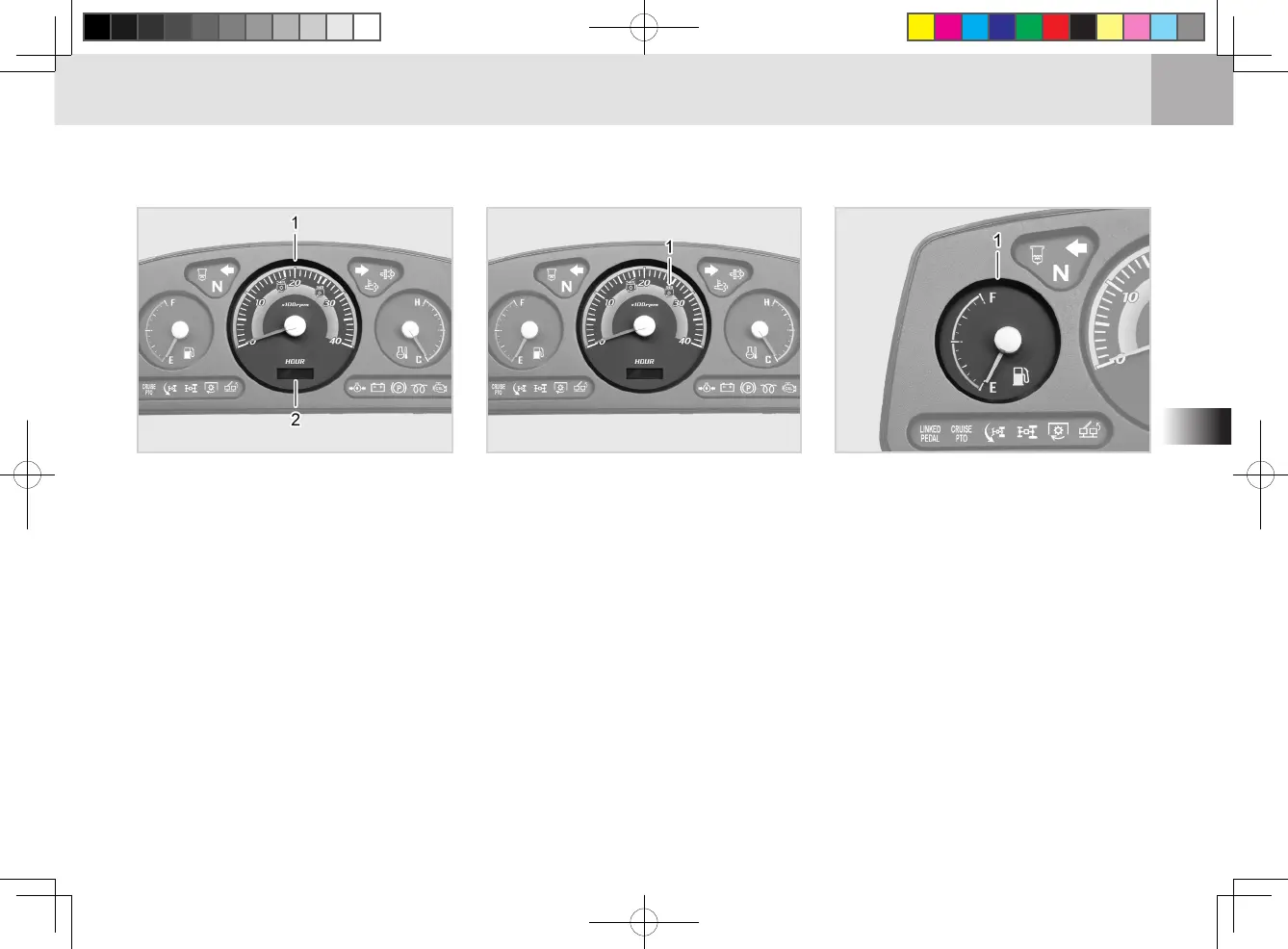

TACHOMETER/HOURMETER PTO SPEED MARK
(1) 540 rpm
FUEL GAUGE
(1) Fuel Gauge
E: Empty F: Full
This gauge indicates the remain-
ing fuel level after the key switch is
turned to the “ON” position.
• F: Fuel is fully lled.
• E: Replenish the fuel tank.
If driving is continued with the needle
below the position “E”, air may enter
the fuel supply system. In this case,
“bleed” the system. (For detailed in-
structions, refer to “Bleeding fuel sys-
tem” in the chapter “Maintenance”)
(1) Tachometer (2) Hourmeter
The tachometer indicates the engine
rpm.
The hour meter indicates the total
run hours of the tractor in 6 digits.
The last digit represents 1 hour.
The hourmeter does not operate if
the engine is stopped even if the key
switch is in the "ON" position.
The PTO speed can be selected as
desired according to the operating
condition.
Set the engine speed around this
mark for e󰀩cient and rapid work.
At this time, PTO speed will be ap-
prox. 540.
TD2O416B TD2O417B TD2O418B
