DK4220/4520/4720/5020/5320/5520/6020

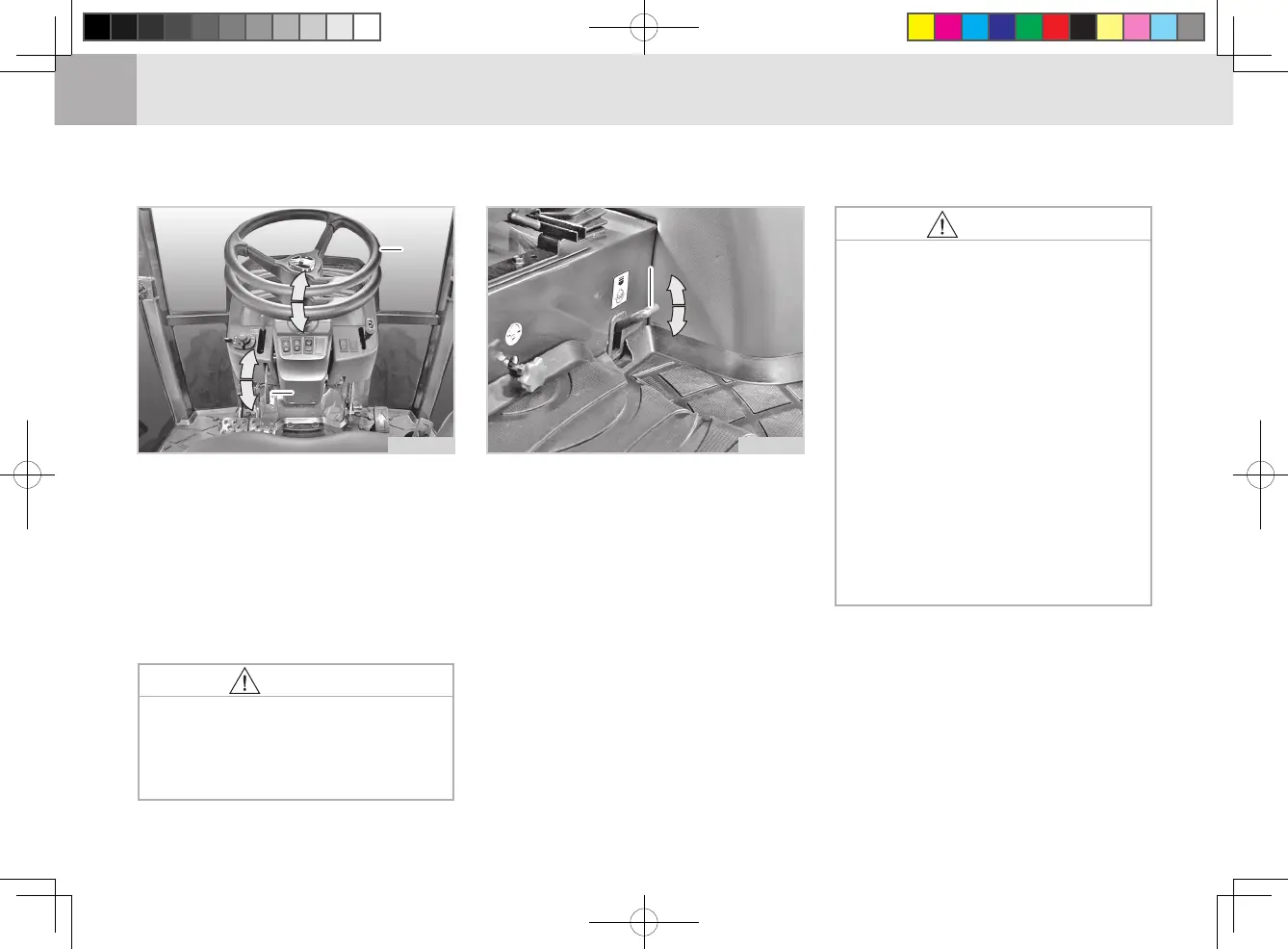

(1) Steering Wheel (2) Tilt Lever
(A) Down (B) Up
The vertical angle of the steering
wheel can be adjusted as desired.
Pull up the tilt lever, adjust the steer-
ing wheel position and push down
the tilt lever to x the wheel.
STEERING WHEEL ADJUSTMENT
1
1
1
2
2
2
A
A
A
A
A
A
B
B
B
B
B
B
D21O415A
CAUTION
• Never adjust the steering wheel
position during driving. Oth-
erwise, A personal injury can
occur.
The differential lock is to secure the
di󰀨erential system and keep the wheel
rotation on both sides the same in order
to enhance the traction of the rear axle.
Depressing the pedal engages the
differential lock while releasing the
pedal disengages the differential
lock. Use this system under the fol-
lowing conditions:
1. When any wheel slips and the
tractor does not move in the eld.
2. When it is hard to escape a soft or
muddy eld.
DIFFERENTIAL LOCK PEDAL
(1) Di󰀨erential Lock Pedal
(A) Release To Disengage (B) Lock
1
1
1
A
A
A
B
B
B
D21O416A
CAUTION
• The di󰀨erential lock should be
engaged only while the driving
clutch is engaged. If the di󰀨er-
ential lock pedal does not move
when depressing it, try to depress
it again after releasing it.
• When engaging the di󰀨erential
lock, reduce the engine speed.
After engaging it, accelerate
the tractor.
• Make sure to set the steering
wheel in the straight ahead posi-
tion while the di󰀨erential lock is
in use. Otherwise, the di󰀨erential
system can be damaged.
